SLU13CH038 Series
SLU13CH038-09
Slotless BLDC Motor

Name: SLU13CH038-09
Brand: Lin Engineering
SKU: SLU13CH038-09
Price: 144 USD
Availability: PreOrder

Quick Facts

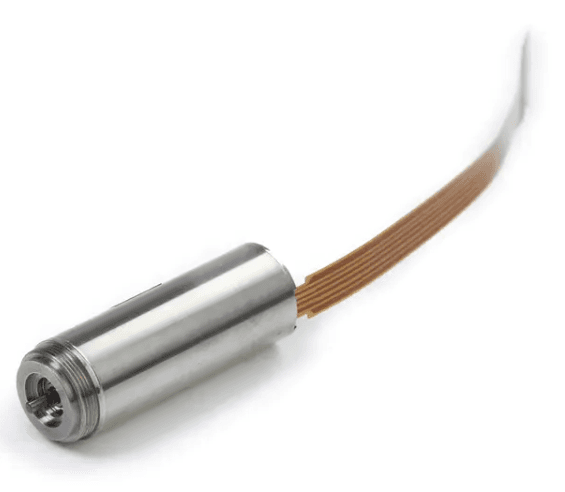

SLU13CH038-09 Slotless BLDC Motors

Specifications:

0.510 in Frame Size
1.7 A Rated Current
0.7859 oz-in Rated Torque
9 VDC Nominal Voltage
1.470 in Length

Features and Benefits:

Extremely quick response and high acceleration
Quiet Operation
High power density

Specifications

Motor Specifications

Frame Size	0.510 in
Motor Type	Motor Only
Weight	0.064 lbs
Number of pole	2
Number of Phases	3
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	9 VDC
No Load Speed	24600 RPM
No Load Current	135 mA
Nominal Speed	19000 RPM
Nominal Torque (Max Cont. Torque)	0.7859 oz-in
Nominal Current (Max Cont. Current)	1.7 A
Rated Speed	19000 RPM
Rated Torque	0.7859 oz-in
Rated Current	1.7 A
Stall Torque	3.6635 oz-in
Stall Current	7.63 A
Max. Efficiency	75.6%

Motor Characteristics

Terminal Resistance	1.18 ohm
Terminal Inductance	0.024 mH
Speed/Torque Gradient	134.6729 RPM/oz-in
Speed Constant	2733 RPM/V
Mechanical Time Constant	3.15 ms
Rotor Inertia	0.002 oz-in²

Motor Mechanical Data

Axial play	0.002 in
Radial play	Preloaded
Max. Radial Load	0.899 lbf
Distance From Flange For Radial Load	5 in
Max Force For Press Fit	2.248 lbf
Max Speed (Mechanical)	40000 RPM

Motor Thermal Data

Ambient Temperature	-40 °F to 212.00 °F
Insulation Class	F
Max winding temperature	311.00 °F
Max winding temperature	311.00 °F
Thermal resistance (Housing-Ambient)	73.40 °F/W
Thermal resistance (Winding-Housing)	35.40 °F/W
Thermal time constant motor	350 s
Thermal time constant winding	0.48 s

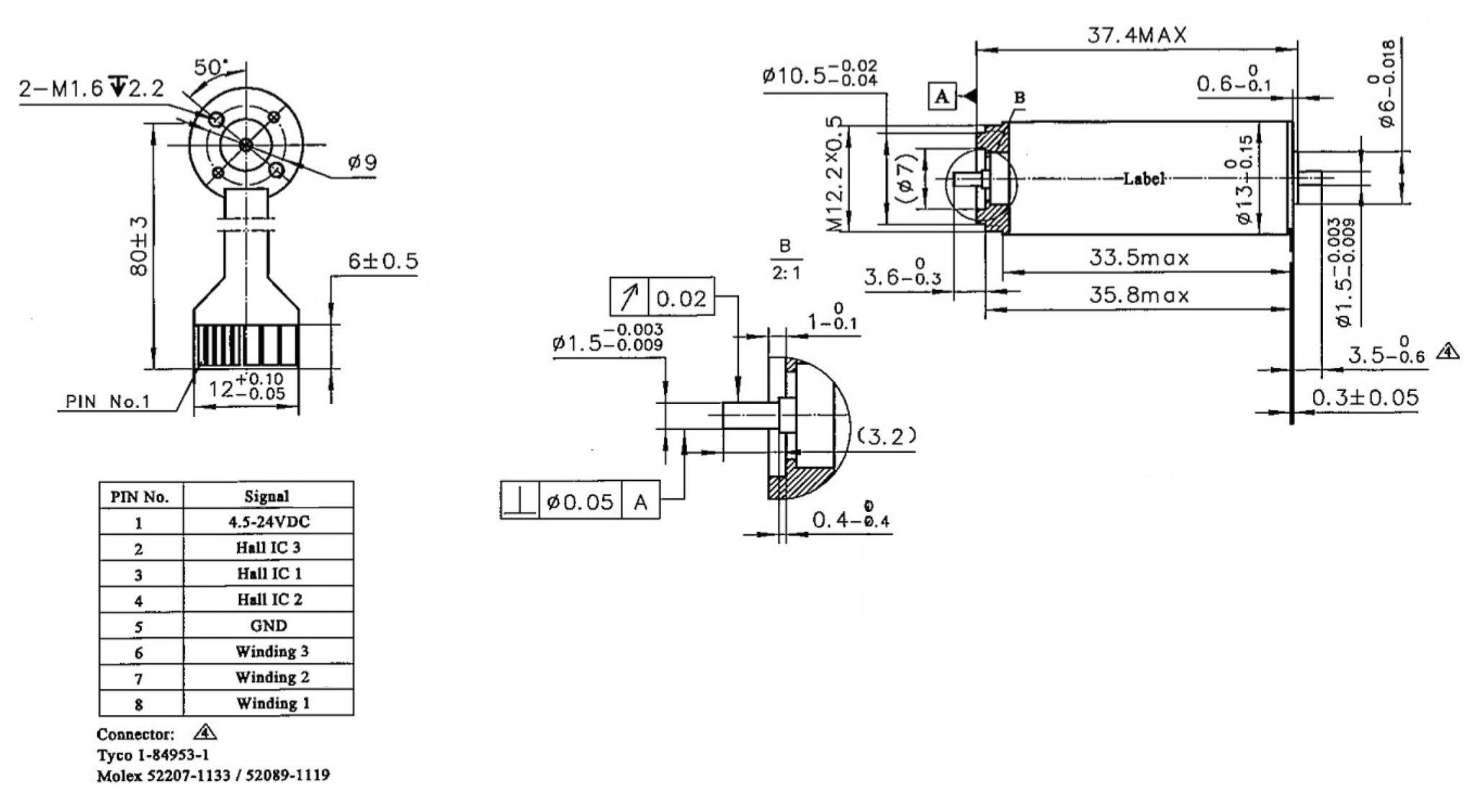

Dimensions

Model	DIM. A (length) in MAX
SLU13CH038-09	1.470 in

Performance Curve

SLU13CH038 Series

Downloads

SLU13CH038-09 Configured Datasheet (PDF)
