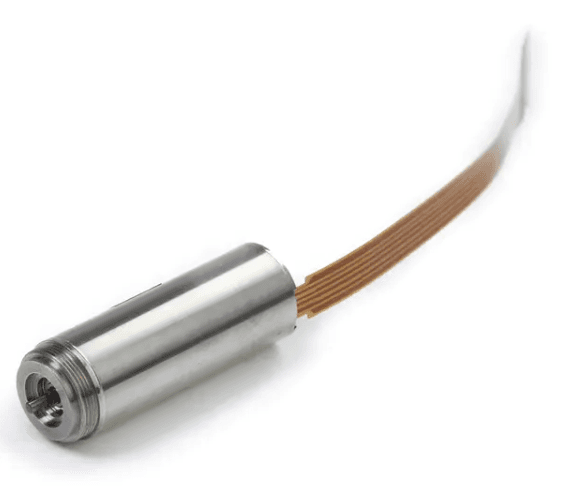

SLU13CH038 Series
SLU13CH038-18
Slotless BLDC Motor

Name: SLU13CH038-18
Brand: Lin Engineering
SKU: SLU13CH038-18
Price: 144 USD
Availability: PreOrder

Quick Facts

SLU13CH038-18 Slotless BLDC Motors

Specifications:

0.510 in Frame Size
0.81 A Rated Current
0.7789 oz-in Rated Torque
18 VDC Nominal Voltage
1.470 in Length

Features and Benefits:

Extremely quick response and high acceleration
Quiet Operation
High power density

Specifications

Motor Specifications

Frame Size	0.510 in
Motor Type	Motor Only
Weight	0.064 lbs
Number of pole	2
Number of Phases	3
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	18 VDC
No Load Speed	25400 RPM
No Load Current	71 mA
Nominal Speed	19000 RPM
Nominal Torque (Max Cont. Torque)	0.7789 oz-in
Nominal Current (Max Cont. Current)	0.81 A
Rated Speed	19000 RPM
Rated Torque	0.7789 oz-in
Rated Current	0.81 A
Stall Torque	4.0643 oz-in
Stall Current	4.19 A
Max. Efficiency	75.5%

Motor Characteristics

Terminal Resistance	4.3 ohm
Terminal Inductance	0.085 mH
Speed/Torque Gradient	125.3266 RPM/oz-in
Speed Constant	1411 RPM/V
Mechanical Time Constant	3 ms
Rotor Inertia	0.002 oz-in²

Motor Mechanical Data

Axial play	0.002 in
Radial play	Preloaded
Max. Radial Load	0.899 lbf
Distance From Flange For Radial Load	5 in
Max Force For Press Fit	2.248 lbf
Max Speed (Mechanical)	40000 RPM

Motor Thermal Data

Ambient Temperature	-40 °F to 212.00 °F
Insulation Class	F
Max winding temperature	311.00 °F
Max winding temperature	311.00 °F
Thermal resistance (Housing-Ambient)	73.40 °F/W
Thermal resistance (Winding-Housing)	35.40 °F/W
Thermal time constant motor	350 s
Thermal time constant winding	0.48 s

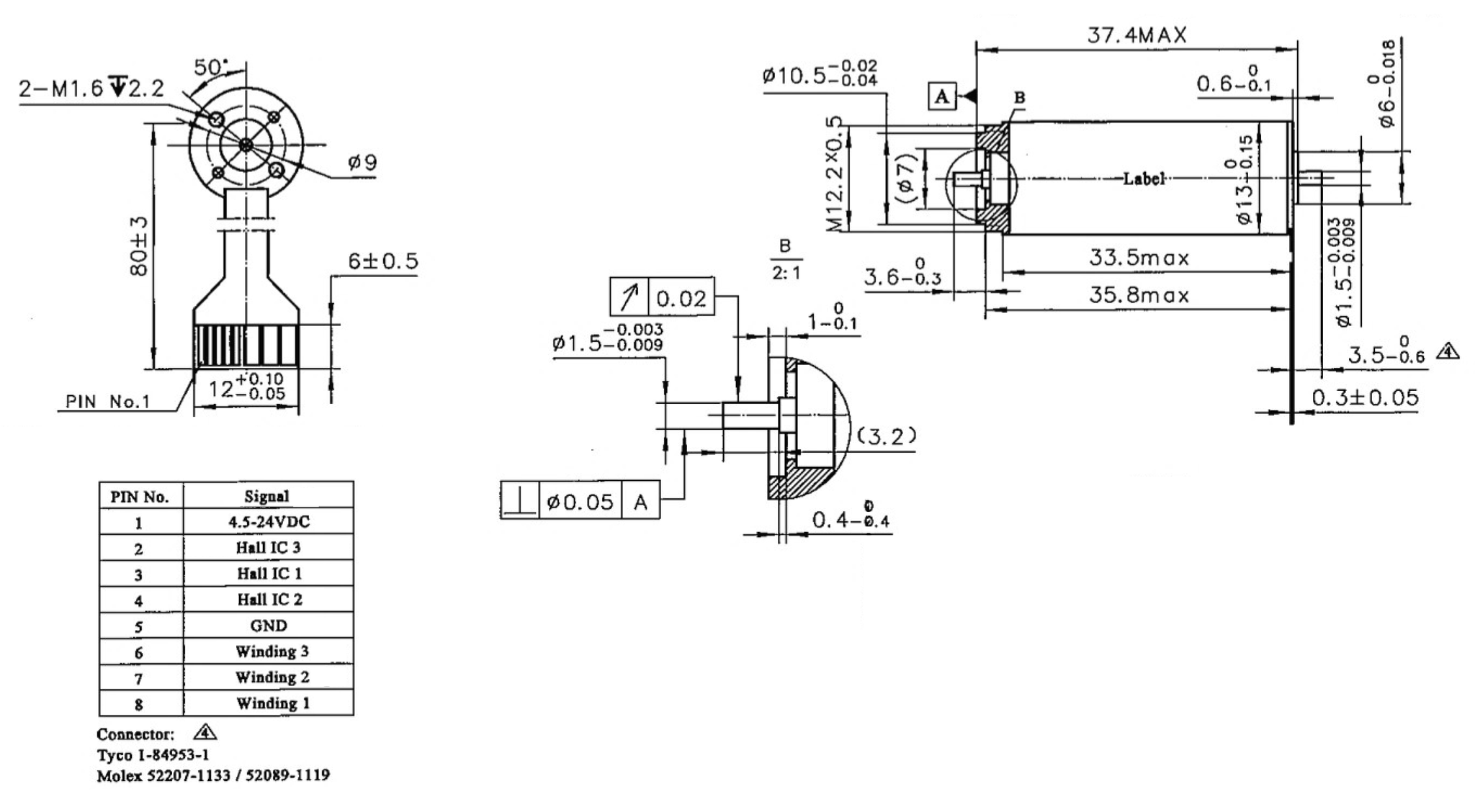

Dimensions

Model	DIM. A (length) in MAX
SLU13CH038-18	1.470 in

Performance Curve

SLU13CH038 Series

Downloads

SLU13CH038-18 Configured Datasheet (PDF)
