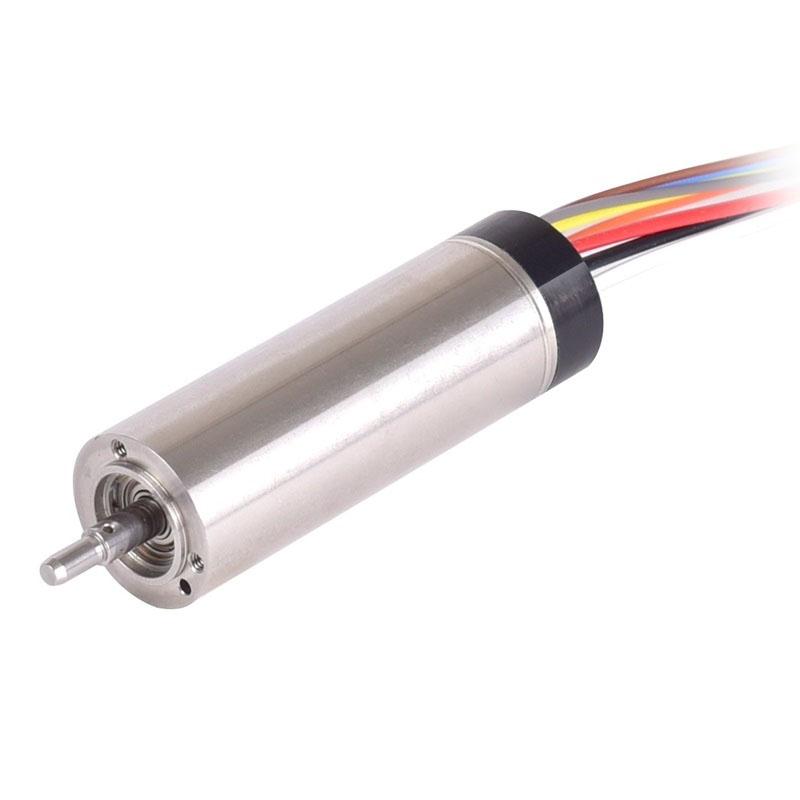

SLH19CH058 SeriesSlotless BLDC Motor
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLH19CH058-18 | 0.750 in | 2.280 in | 18 VDC | 38300 RPM | 3.4837 oz-in | 47000 RPM | 650 mA | NA | 0.215 lbs | 7.47 A | Quote |
| SLH19CH058-24 | 0.750 in | 2.280 in | 24 VDC | 44500 RPM | 3.4412 oz-in | 51500 RPM | 750 mA | NA | 0.215 lbs | 6.32 A | Quote |
| SLH19CH058-36 | 0.750 in | 2.280 in | 36 VDC | 44600 RPM | 3.2146 oz-in | 50000 RPM | 870 mA | NA | 0.215 lbs | 4.17 A | Quote |
| SLH19CH058-48 | 0.750 in | 2.280 in | 48 VDC | 47500 RPM | 3.073 oz-in | 50000 RPM | 750 mA | NA | 0.215 lbs | 3.14 A | Quote |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
