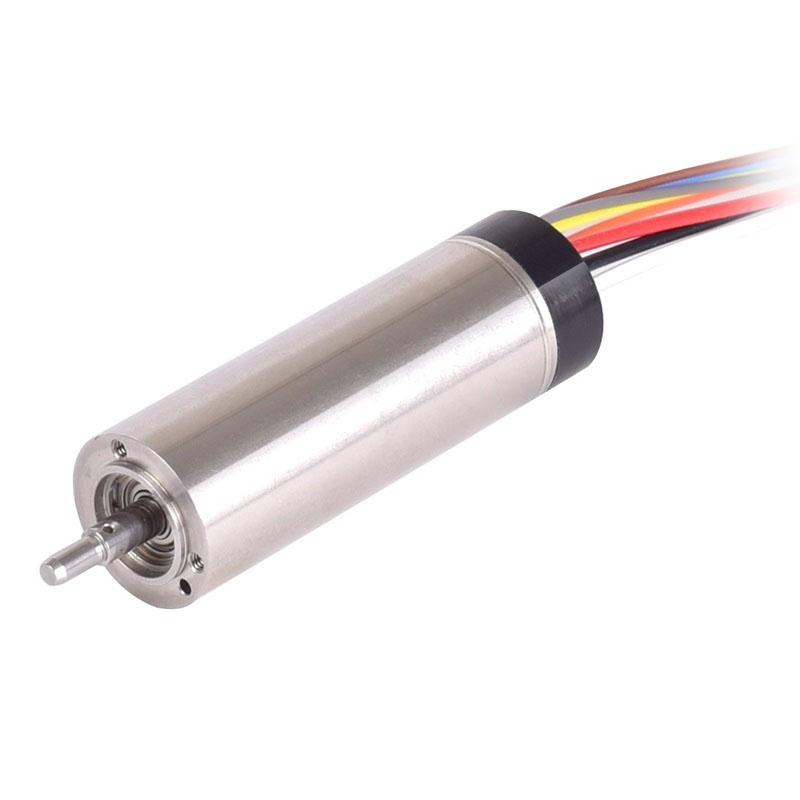

SLH19CH058 Series
SLH19CH058-36
Slotless BLDC Motor

Name: SLH19CH058-36
Brand: Lin Engineering
SKU: SLH19CH058-36
Price: 234 USD
Availability: PreOrder

Quick Facts

SLH19CH058-36 Slotless BLDC Motors

Specifications:

0.750 in Frame Size
4.17 A Rated Current
3.2146 oz-in Rated Torque
36 VDC Nominal Voltage
2.280 in Length

Specifications

Motor Specifications

Frame Size	0.750 in
Motor Type	Motor Only
Weight	0.215 lbs
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	36 VDC
No Load Speed	50000 RPM
No Load Current	870 mA
Nominal Speed	44600 RPM
Nominal Torque (Max Cont. Torque)	3.2146 oz-in
Rated Speed	44600 RPM
Rated Torque	3.2146 oz-in
Rated Current	4.17 A
Stall Torque	103.0085 oz-in
Stall Current	105.88 A
Max. Efficiency	90%

Motor Characteristics

Terminal Resistance	0.33 ohm
Terminal Inductance	0.051 mH
Speed/Torque Gradient	9.488 RPM/oz-in
Speed Constant	1390 RPM/V
Mechanical Time Constant	1.22 ms
Rotor Inertia	0.01 oz-in²

Motor Mechanical Data

Max. Radial Load

2.698 lbf

Motor Thermal Data

Ambient Temperature	-40 °F to 212.00 °F
Max winding temperature	311.00 °F
Thermal time constant motor	710 s
Thermal time constant winding	2.3 s

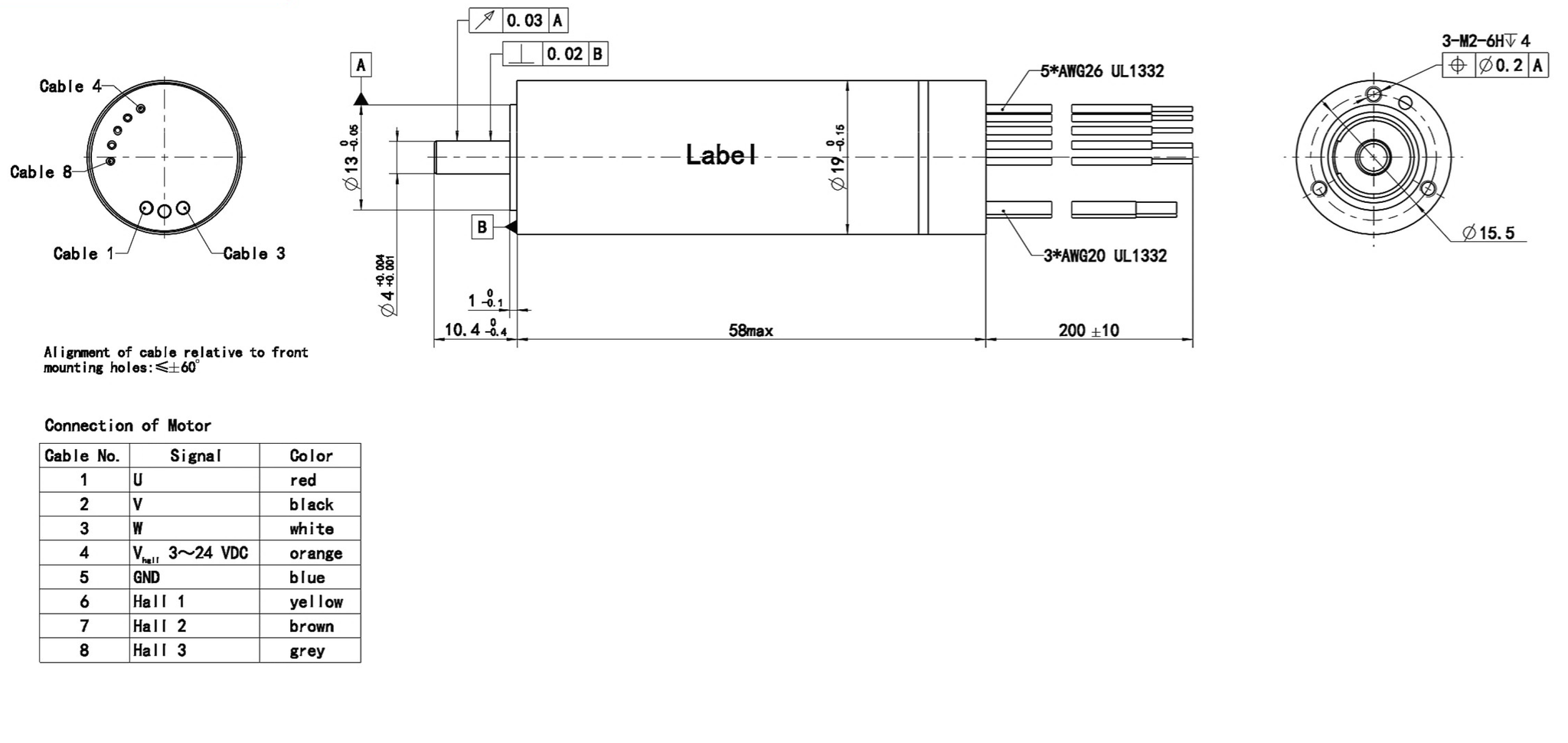

Dimensions

Model	DIM. A (length) in MAX
SLH19CH058-36	2.280 in

Performance Curve

SLH19CH058-36
^{@36 VDC}

Speed
Current
Power
Efficiency
Operating Area
Maximum Continuous Torque

Generate new cureve based on different VDC

SLH19CH058 Series

Downloads

SLH19CH058-36 Configured Datasheet (PDF)

SLH19CH058-36 (3D model) (STP)
