SLH19CH058 Series
SLH19CH058-18
Slotless BLDC Motor

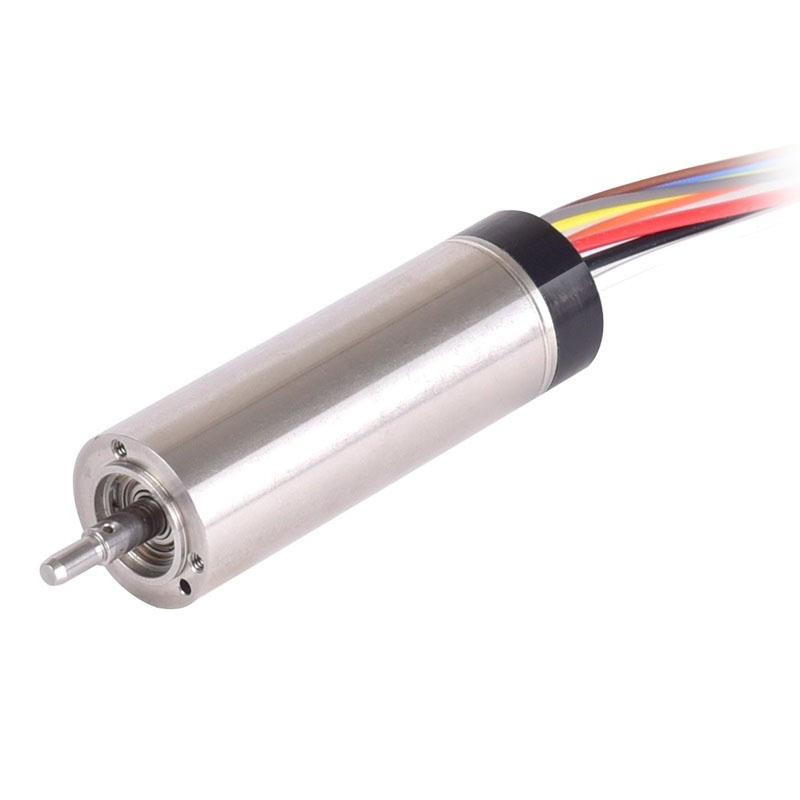

Featured product media

Quick Facts

SLH19CH058-18 Slotless BLDC Motors

Specifications:
  • 0.750 in Frame Size
  • 7.47 A Rated Current
  • 3.4837 oz-in Rated Torque
  • 18 VDC Nominal Voltage
  • 2.280 in Length

Specifications

Motor Specifications

Frame Size0.750 in
Motor TypeMotor Only
Weight0.215 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage18 VDC
No Load Speed 47000 RPM
No Load Current650 mA
Nominal Speed38300 RPM
Rated Speed38300 RPM
Rated Torque3.4837 oz-in
Rated Current7.47 A
Stall Torque86.5674 oz-in
Stall Current169.81 A
Max. Efficiency90%

Motor Characteristics

Terminal Resistance0.106 ohm
Terminal Inductance0.0138 mH
Speed/Torque Gradient 11.0457 RPM/oz-in
Speed Constant2650 RPM/V
Mechanical Time Constant1.42 ms
Rotor Inertia0.01 oz-in²

Motor Mechanical Data

Max. Radial Load2.698 lbf

Motor Thermal Data

Ambient Temperature-40 °F to 212.00 °F
Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor710 s
Thermal time constant winding2.3 s

Performance Curve

SLH19CH058-18
@18 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH19CH058 Series

Downloads

SLH19CH058-18 Configured Datasheet (PDF)
