SLH19CH058 Series
SLH19CH058-24
Slotless BLDC Motor

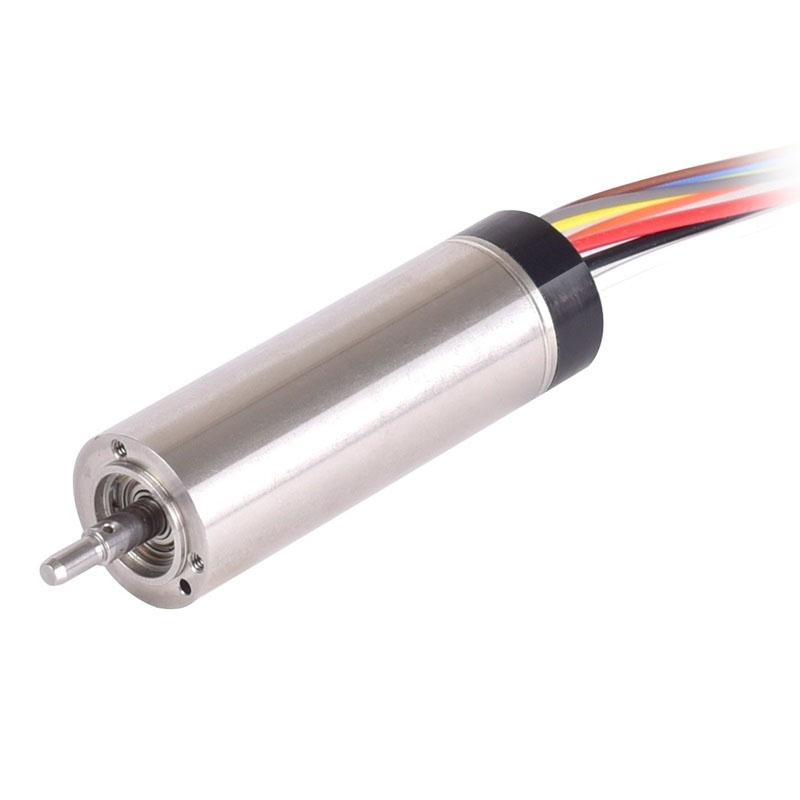

Featured product media

Quick Facts

SLH19CH058-24 Slotless BLDC Motors

Specifications:
  • 0.750 in Frame Size
  • 6.32 A Rated Current
  • 3.4412 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 2.280 in Length

Specifications

Motor Specifications

Frame Size0.750 in
Motor TypeMotor Only
Weight0.215 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 51500 RPM
No Load Current750 mA
Nominal Speed44500 RPM
Nominal Torque (Max Cont. Torque)3.4412 oz-in
Rated Speed44500 RPM
Rated Torque3.4412 oz-in
Rated Current6.32 A
Stall Torque100.1196 oz-in
Stall Current162.16 A
Max. Efficiency90%

Motor Characteristics

Terminal Resistance0.148 ohm
Terminal Inductance0.02 mH
Speed/Torque Gradient 10.4793 RPM/oz-in
Speed Constant2190 RPM/V
Mechanical Time Constant1.35 ms
Rotor Inertia0.01 oz-in²

Motor Mechanical Data

Max. Radial Load2.698 lbf

Motor Thermal Data

Ambient Temperature-40 °F to 212.00 °F
Max winding temperature311.00 °F
Thermal time constant motor710 s
Thermal time constant winding2.3 s

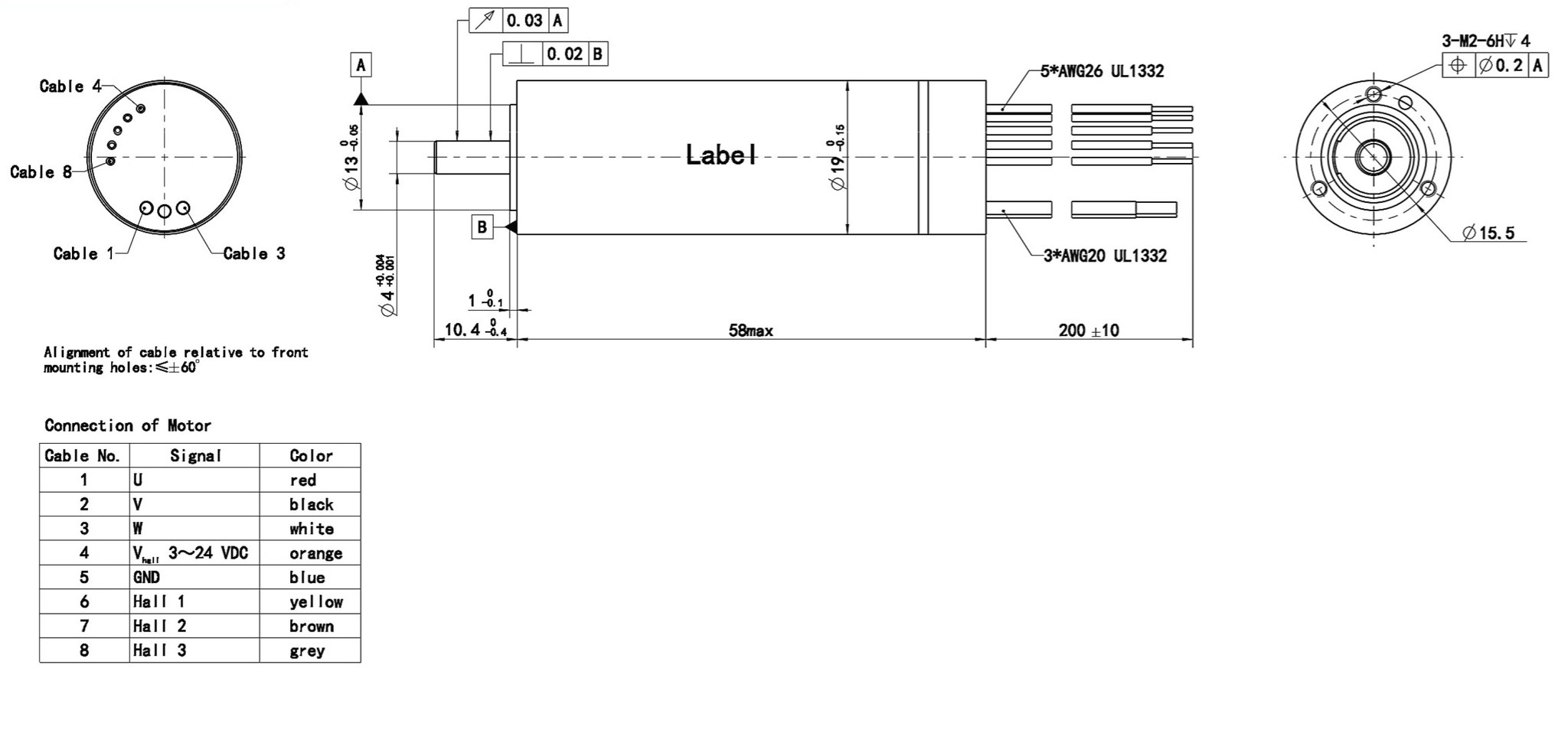

Dimensions

ModelDIM. A (length) in MAX
SLH19CH058-242.280 in

Performance Curve

SLH19CH058-24
@24 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH19CH058 Series

Downloads

SLH19CH058-24 Configured Datasheet (PDF)
SLH19CH058-24 (3D model) (STP)
