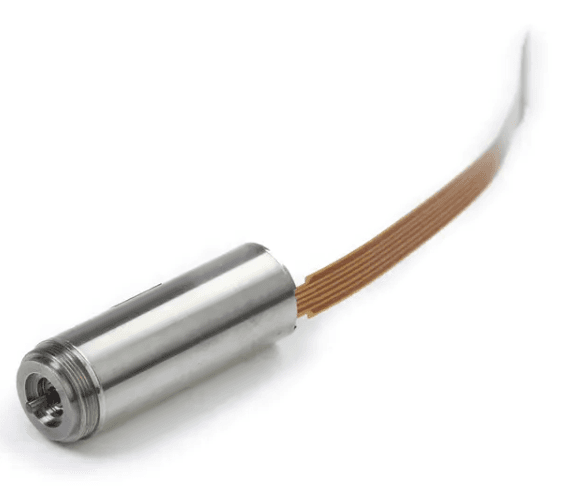

SLH13CH048 SeriesSlotless BLDC Motor
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLH13CH048-24 | 0.510 in | 1.890 in | 24 VDC | 55970 RPM | 0.9913 oz-in | 65600 RPM | 190 mA | NA | 0.089 lbs | 1.8 A | Quote |
| SLH13CH048-24-MH13-1024 | 0.510 in | 1.890 in | 24 VDC | 55970 RPM | 1.2434 oz-in | 65600 RPM | 190 mA | NA | 0.098 lbs | 2.67 A | Quote |
| SLH13CH048-36 | 0.510 in | 1.890 in | 36 VDC | 59800 RPM | 1.215 oz-in | 66765 RPM | 182 mA | NA | 0.089 lbs | 1.82 A | Quote |
| SLH13CH048-48 | 0.510 in | 1.890 in | 48 VDC | 60300 RPM | 1.2278 oz-in | 64543 RPM | 163 mA | NA | 0.089 lbs | 1.36 A | Quote |
| SLH13CH048-48-MH13-1024 | 0.510 in | 1.890 in | 48 VDC | 60300 RPM | 1.2278 oz-in | 64543 RPM | 163 mA | NA | 0.098 lbs | 1.36 A | Quote |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
