SLH13CH048 Series
SLH13CH048-36
Slotless BLDC Motor

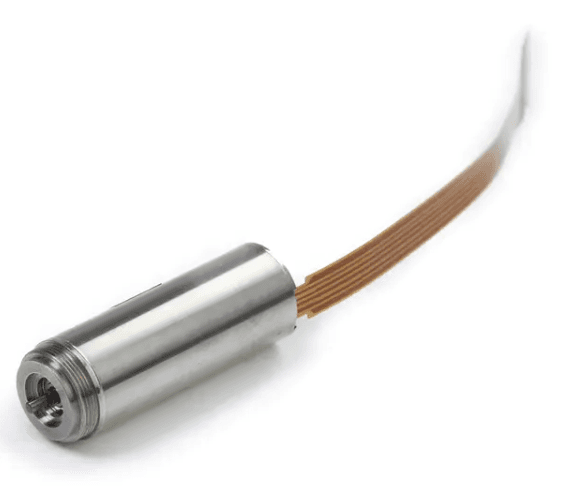

Featured product media

Quick Facts

SLH13CH048-36 Slotless BLDC Motors

Specifications:
  • 0.510 in Frame Size
  • 1.82 A Rated Current
  • 1.215 oz-in Rated Torque
  • 36 VDC Nominal Voltage
  • 1.890 in Length

Specifications

Motor Specifications

Frame Size0.510 in
Motor TypeMotor Only
Weight0.089 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage36 VDC
No Load Speed 66765 RPM
No Load Current182 mA
Nominal Speed59800 RPM
Rated Speed59800 RPM
Rated Torque1.215 oz-in
Rated Current1.82 A
Stall Torque22.7018 oz-in
Stall Current30.59 A
Max. Efficiency87.9%

Motor Characteristics

Terminal Resistance1.177 ohm
Terminal Inductance0.07514 mH
Speed/Torque Gradient 57.9193 RPM/oz-in
Speed Constant1822 RPM/V
Mechanical Time Constant1.32 ms
Rotor Inertia0.002 oz-in²

Motor Mechanical Data

Max. Radial Load1.349 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor420 s
Thermal time constant winding1.38 s

Performance Curve

SLH13CH048-36
@36 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH13CH048 Series

Downloads

SLH13CH048-36 Configured Datasheet (PDF)
