SLH13CH048 Series

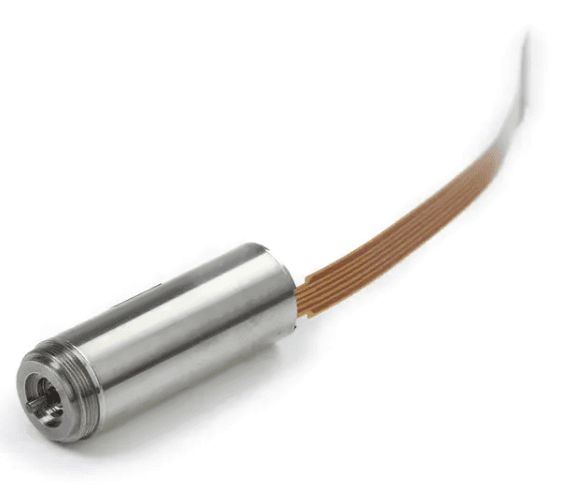

SLH13CH048-24-MH13-1024
Slotless BLDC Motor

Featured product media

Quick Facts

SLH13CH048-24-MH13-1024 Slotless BLDC Motors

Specifications:
  • 0.510 in Frame Size
  • 2.67 A Rated Current
  • 1.2434 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 1.890 in Length

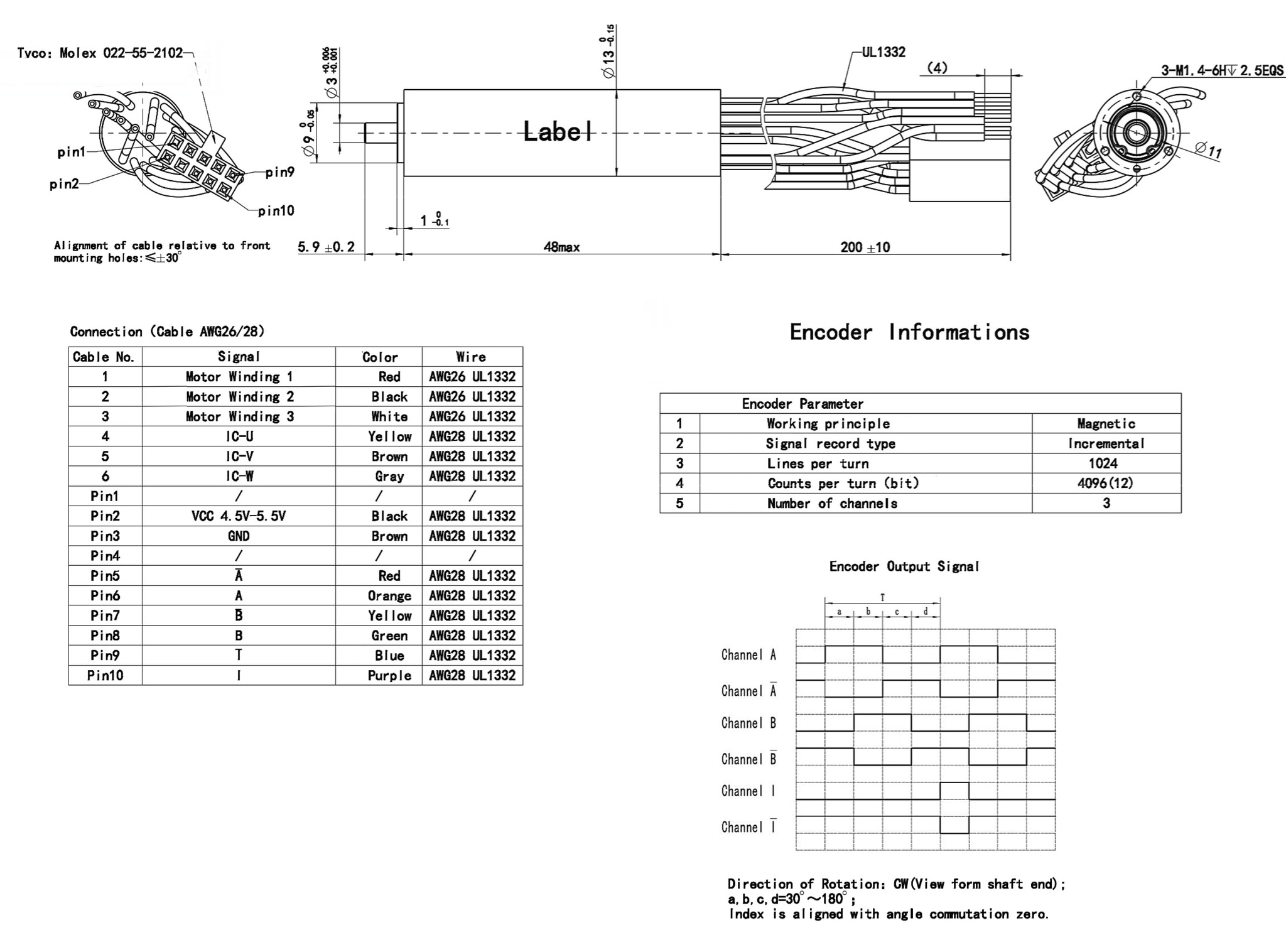

Specifications

Motor Specifications

Frame Size0.510 in
Motor TypeMotor + Encoder
Weight0.098 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 65600 RPM
No Load Current190 mA
Nominal Speed55970 RPM
Rated Speed55970 RPM
Rated Torque1.2434 oz-in
Rated Current2.67 A
Stall Torque22.0476 oz-in
Stall Current44.04 A
Max. Efficiency89.8%

Motor Characteristics

Terminal Resistance0.545 ohm
Terminal Inductance0.0347 mH
Speed/Torque Gradient 58.9106 RPM/oz-in
Speed Constant2701 RPM/V
Mechanical Time Constant1.34 ms
Rotor Inertia0.002 oz-in²

Motor Mechanical Data

Max. Radial Load1.349 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor420 s
Thermal time constant winding1.38 s

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

Performance Curve

SLH13CH048-24-MH13-1024
@24 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH13CH048 Series

Downloads

SLH13CH048-24-MH13-1024 Configured Datasheet (PDF)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
