SLH13CH048 Series
SLH13CH048-48
Slotless BLDC Motor

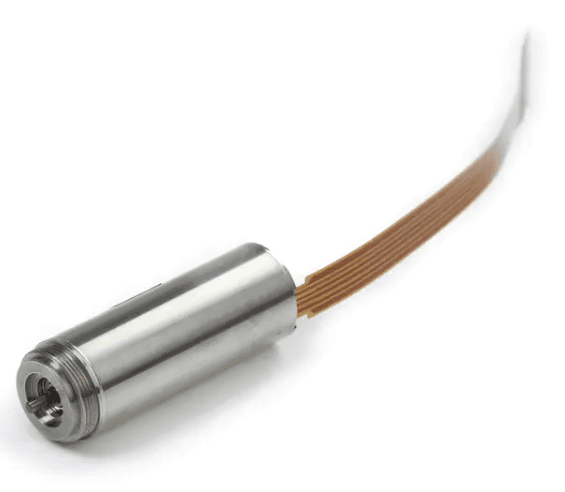

Featured product media

Quick Facts

SLH13CH048-48 Slotless BLDC Motors

Specifications:
  • 0.510 in Frame Size
  • 1.36 A Rated Current
  • 1.2278 oz-in Rated Torque
  • 48 VDC Nominal Voltage
  • 1.890 in Length

Specifications

Motor Specifications

Frame Size0.510 in
Motor TypeMotor Only
Weight0.089 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage48 VDC
No Load Speed 64543 RPM
No Load Current163 mA
Nominal Speed60300 RPM
Rated Speed60300 RPM
Rated Torque1.2278 oz-in
Rated Current1.36 A
Stall Torque23.4339 oz-in
Stall Current22.86 A
Max. Efficiency88.5%

Motor Characteristics

Terminal Resistance2.1 ohm
Terminal Inductance0.1442 mH
Speed/Torque Gradient 54.2374 RPM/oz-in
Speed Constant1319 RPM/V
Mechanical Time Constant1.23 ms
Rotor Inertia0.002 oz-in²

Motor Mechanical Data

Max. Radial Load1.349 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor420 s
Thermal time constant winding1.38 s

Performance Curve

SLH13CH048-48
@48 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH13CH048 Series

Downloads

SLH13CH048-48 Configured Datasheet (PDF)
