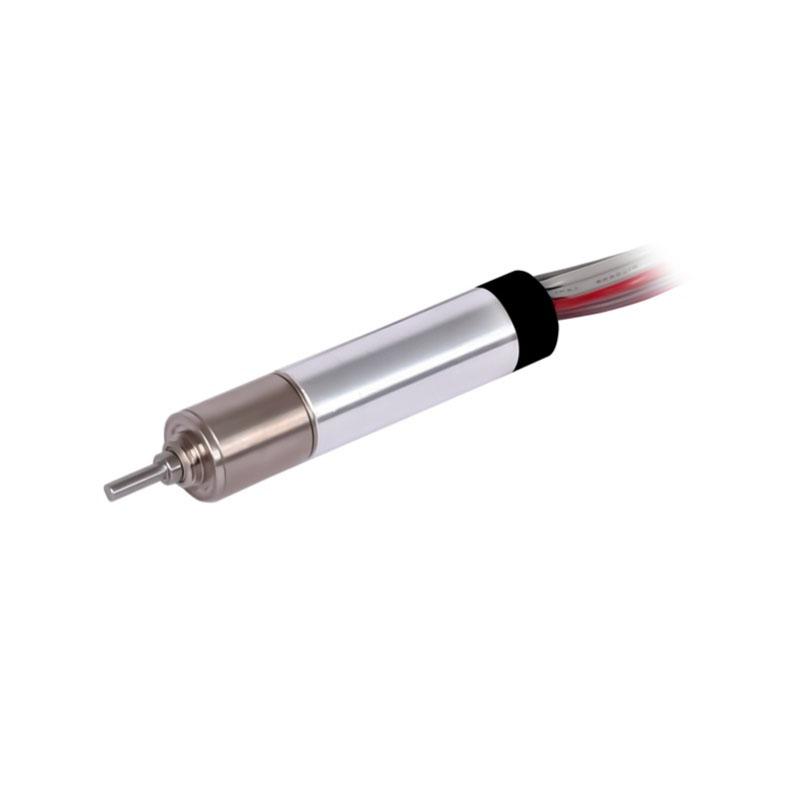

SLP10CH030 SeriesSlotless BLDC Motor
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLP10CH030-12-G16-FS10-1024 | 0.390 in | 1.770 in | 12 VDC | 1346 RPM | 2.2658 oz-in | 1656 RPM | 70 mA | 16:1 | 0.037 lbs | 0.33 A | Quote |
| SLP10CH030-12-G256-FS10-1024 | 0.390 in | 2.010 in | 12 VDC | 85.93 RPM | 27.062 oz-in | 103 RPM | 80 mA | 256:1 | 0.043 lbs | 0.33 A | Quote |
| SLP10CH030-12-G64-FS10-1024 | 0.390 in | 1.890 in | 12 VDC | 343 RPM | 7.8311 oz-in | 414 RPM | 70 mA | 64:1 | 0.04 lbs | 0.33 A | Quote |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
