SLP10CH030 Series
SLP10CH030-12-G16-FS10-1024

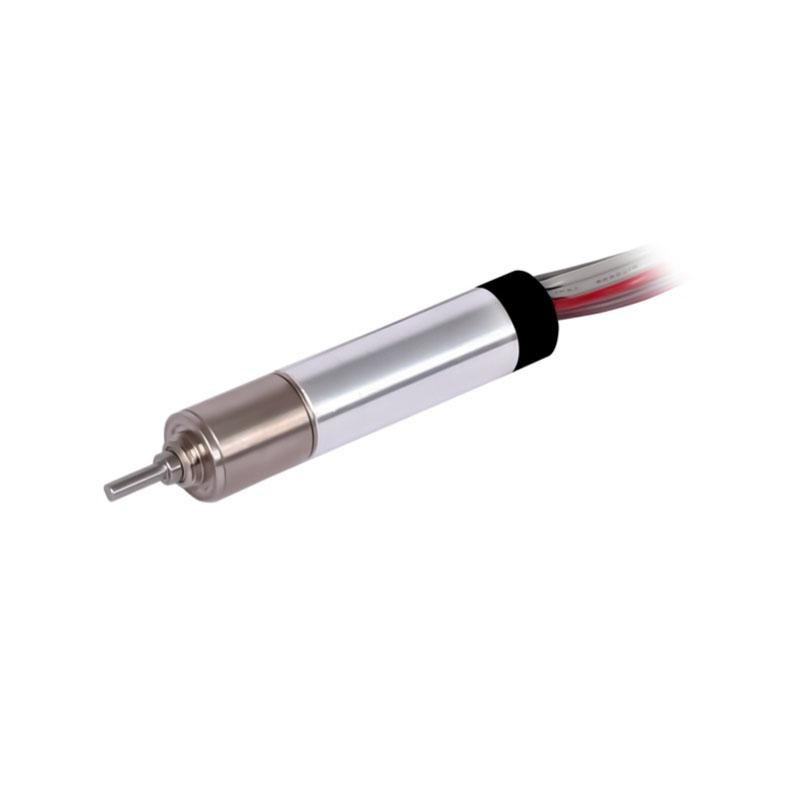

Slotless BLDC Motor

Quick Facts

SLP10CH030-12-G16-FS10-1024 Slotless BLDC Motors

Specifications:

0.390 in Frame Size
0.33 A Rated Current
2.2658 oz-in Rated Torque
12 VDC Nominal Voltage
1.770 in Length

Specifications

Motor Specifications

Frame Size	0.390 in
Motor Type	Motor + Encoder + Gearhead
Weight	0.037 lbs
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	12 VDC
No Load Speed	1656 RPM
No Load Current	70 mA
Nominal Speed	1346 RPM
Rated Speed	1346 RPM
Rated Torque	2.2658 oz-in
Rated Current	0.33 A
Stall Torque	16.5261 oz-in
Stall Current	2.26 A
Max. Efficiency	51%

Motor Characteristics

Speed/Torque Gradient	397.9295 RPM/oz-in
Speed Constant	2250 RPM/V

Motor Mechanical Data

Max. Radial Load

0.45 lbf

Motor Thermal Data

Max winding temperature	266.00 °F
Max winding temperature	266.00 °F

Gearhead Specifications

Gearhead Reduction Ratio	16
Nominal Reduction Ratio	16

Encoder Specifications

Encoder Type

1024-line incremental magnetic encoder

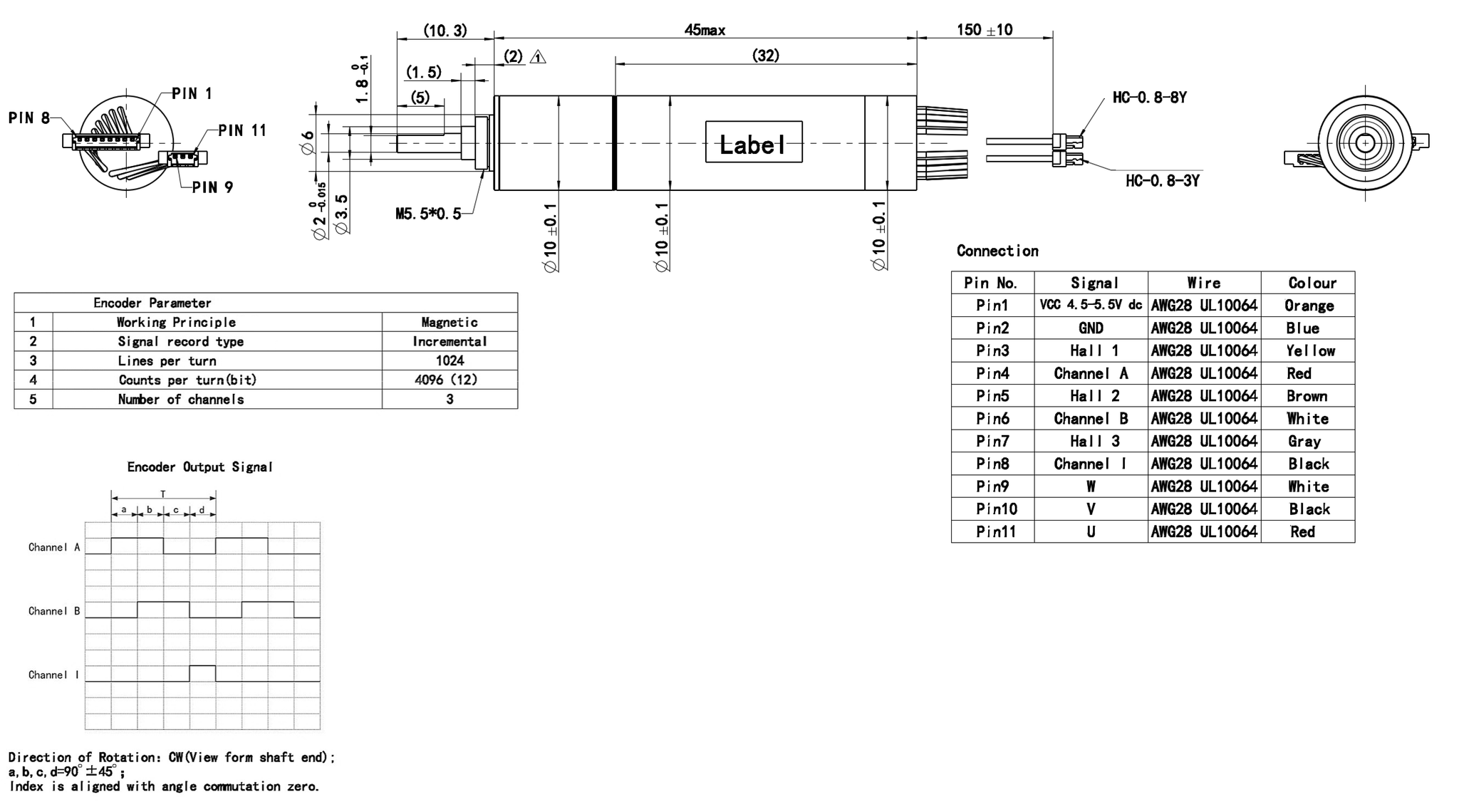

Dimensions

Model	DIM. A (length) in MAX
SLP10CH030-12-G16-FS10-1024	1.770 in

Performance Curve

SLP10CH030-12-G16-FS10-1024
^{@12 VDC, 16:1 reduction}

Speed
Current
Power
Efficiency
Operating Area
Maximum Continuous Torque

Generate new cureve based on different VDC

SLP10CH030 Series

Downloads

SLP10CH030-12-G16-FS10-1024 Configured Datasheet (PDF)
