SLP10CH030 Series
SLP10CH030-12-G64-FS10-1024
Slotless BLDC Motor

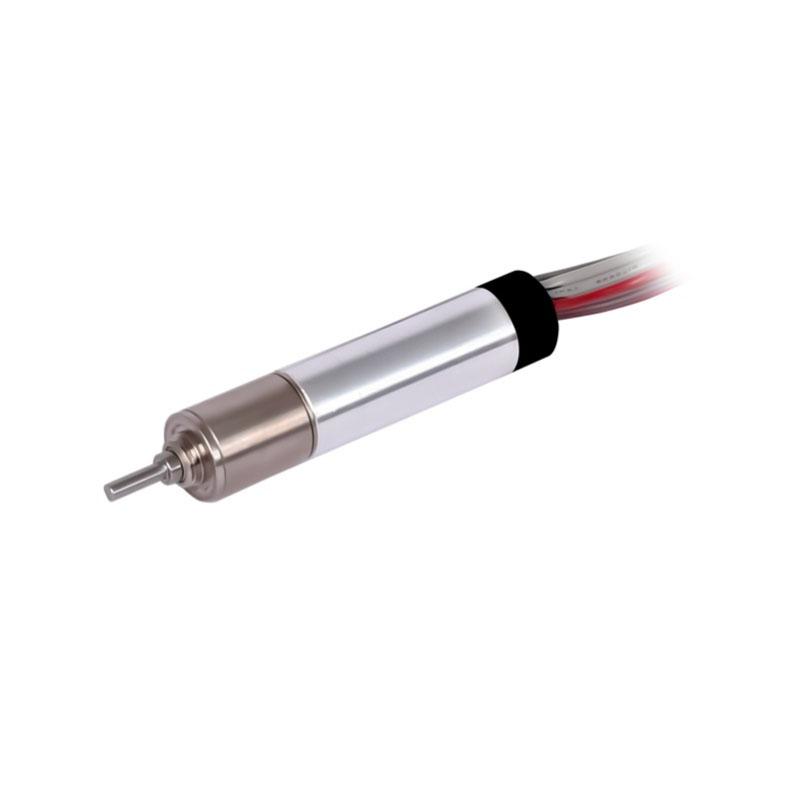

Featured product media

Quick Facts

SLP10CH030-12-G64-FS10-1024 Slotless BLDC Motors

Specifications:
  • 0.390 in Frame Size
  • 0.33 A Rated Current
  • 7.8311 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 1.890 in Length

Specifications

Motor Specifications

Frame Size0.390 in
Motor TypeMotor + Encoder + Gearhead
Weight0.04 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 414 RPM
No Load Current70 mA
Nominal Speed343 RPM
Rated Speed343 RPM
Rated Torque7.8311 oz-in
Rated Current0.33 A
Stall Torque57.4236 oz-in
Stall Current2.26 A
Max. Efficiency46.3%

Motor Characteristics

Terminal Resistance5.3 ohm
Terminal Inductance0.142 mH
Speed/Torque Gradient 397.9295 RPM/oz-in
Speed Constant2250 RPM/V

Motor Mechanical Data

Max. Radial Load0.45 lbf

Motor Thermal Data

Max winding temperature266.00 °F
Max winding temperature266.00 °F

Gearhead Specifications

Gearhead Reduction Ratio64
Nominal Reduction Ratio64

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

Performance Curve

SLP10CH030-12-G64-FS10-1024
@12 VDC, 64:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLP10CH030 Series

Downloads

SLP10CH030-12-G64-FS10-1024 Configured Datasheet (PDF)
