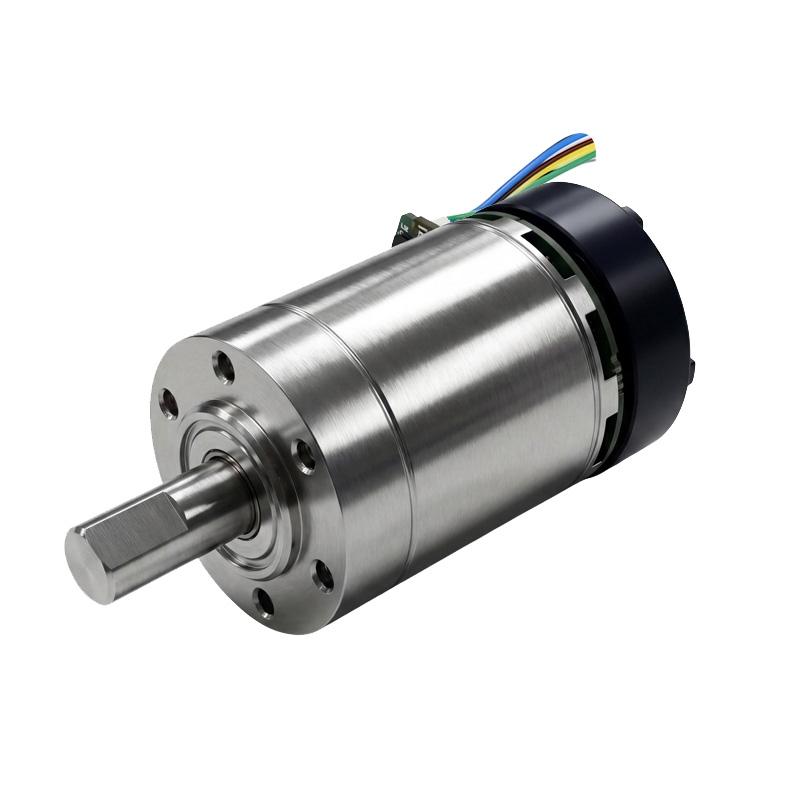

SEF32CH016-24-G35 SEF Series Flat BLDC Motors
- 1.250 in Frame Size
- 2.050 in Length
- 24 VDC Rated Voltage
- 2.87 A Rated Current
- Hall Sensor
- External-rotor construction
- Hall sensor feedback
- Planetary gearbox configurations
Motor Specifications
| Phase | 3 |
| Number of Poles | 12 |
| Frame Size | 1.250 in |
| Body Length (Dimension A) | 2.050 in |
| Rated Voltage | 24 VDC |
| Rated Speed | 261 RPM |
| Max Speed | 331 RPM |
| Rated Torque | 212.42 oz-in |
| Rated Current | 2.87 A |
| Max Torque | 3752.72 oz-in |
| Resistance | 0.507 ohm |
| Terminal Inductance | 0.2763 mH |
| Torque Constant | 2.549 oz-in/A |
| Rotor Inertia | 0.127 oz-in² |
| Weight | 0.545 lbs |
| Hall Sensor | Yes |

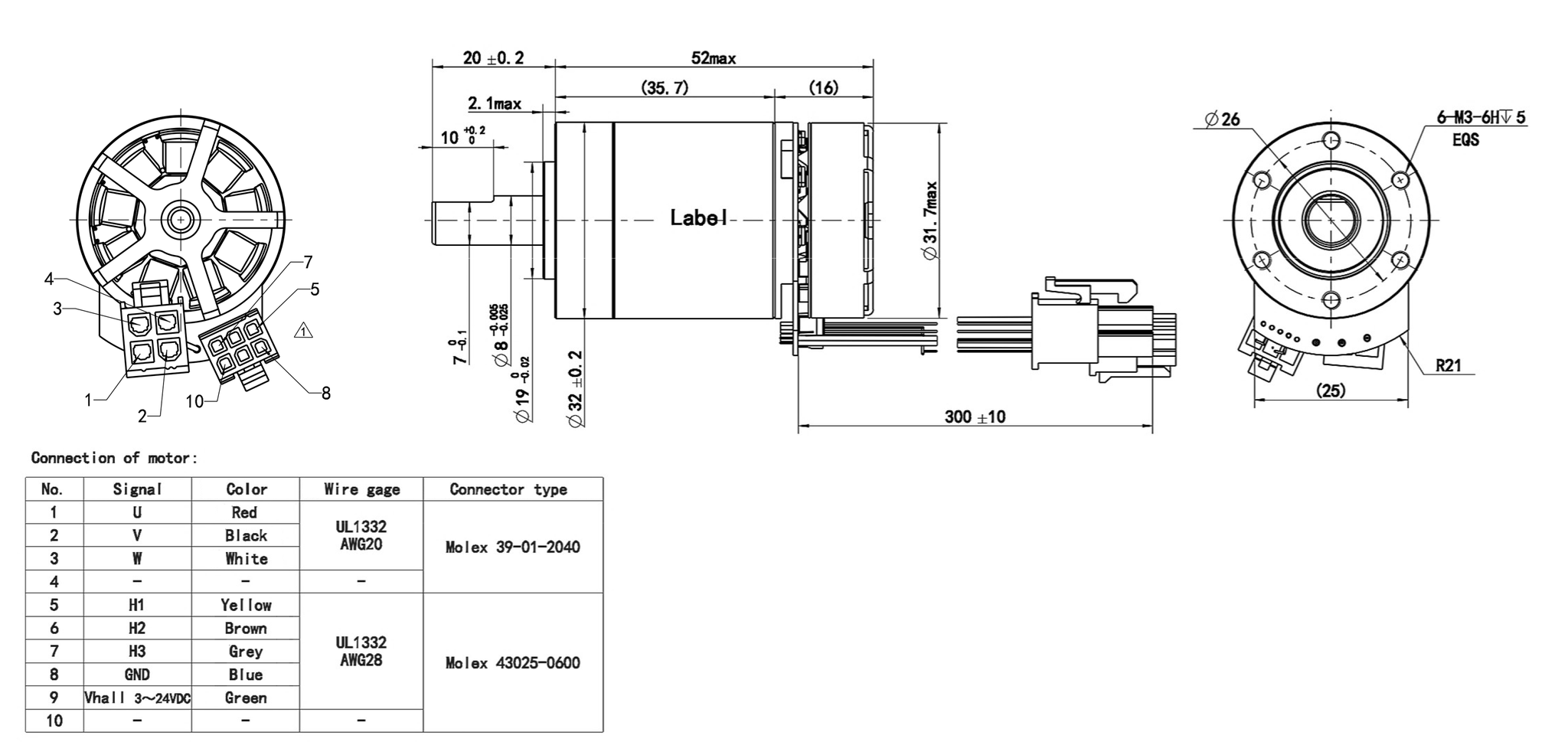

Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| SEF32CH016-24-G35 | 2.050 [52] in |
Flat motors for designs with limited axial space
The ESF family of flat outrunner brushless DC motors uses an outer-rotor design for applications where axial space is limited. A nominal 32 mm diameter and bare-motor body length of 16.2 mm provide a shallow profile. This compact form factor is ideal for applications where motor length is a key design constraint.
Planetary gearbox options to match your load
ESF family motors are available with compact planetary gearboxes that increase output torque while keeping the overall assembly short. Multiple gear ratios accommodate different torque and speed requirements, allowing you to match the geared motor to your load. Higher reduction ratios provide greater output torque at lower speeds, while lower ratios retain more output speed.
Customized Motor Solutions
Work directly with Lin Engineering’s team to design a motor optimized for your torque, thermal, and duty-cycle requirements.
Contact us for a quick, no-obligation feasibility review — let’s discuss your project.
