SEF Series Flat BLDC Motors
Brushless DC Flat Motors
The ESF family of flat outrunner brushless DC motors gives you rotary motion in designs where axial space is limited. The ESF motor's body length provide a shallow profile, while optional planetary gearboxes let you match output torque and speed to your load. Choose the reduction ratio that meets your operating requirements, with the complete geared assembly’s length factored into your design.

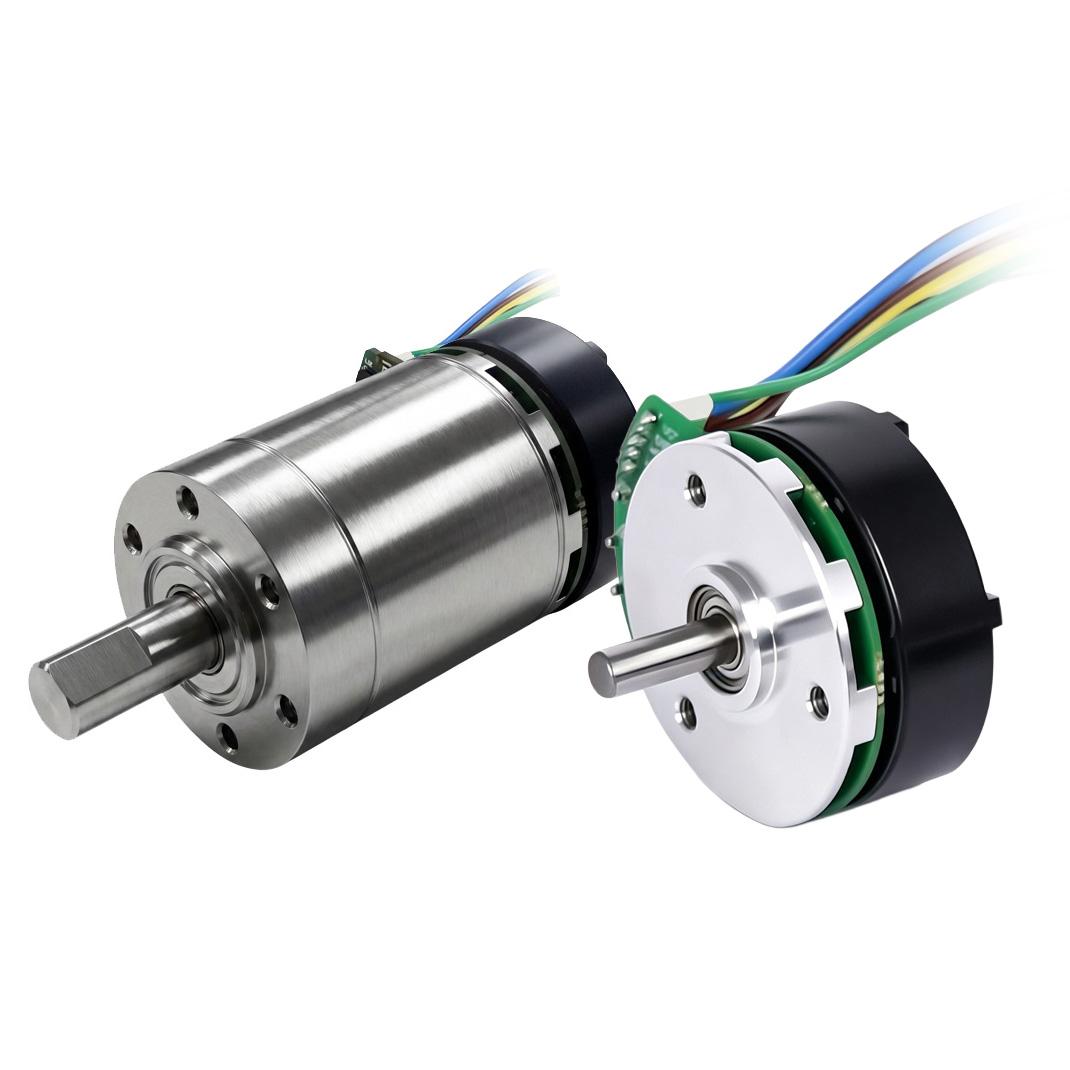

SEF32CH016 Series
SEF32CH016 series external-rotor brushless DC motors with Hall sensors. Available as a motor without gearbox or with a planetary gearbox.
Frame Size
1.250 in
Length
0.64 to 2.38 in
Rated Voltage
24 VDC
Rated Current
2.87 A
