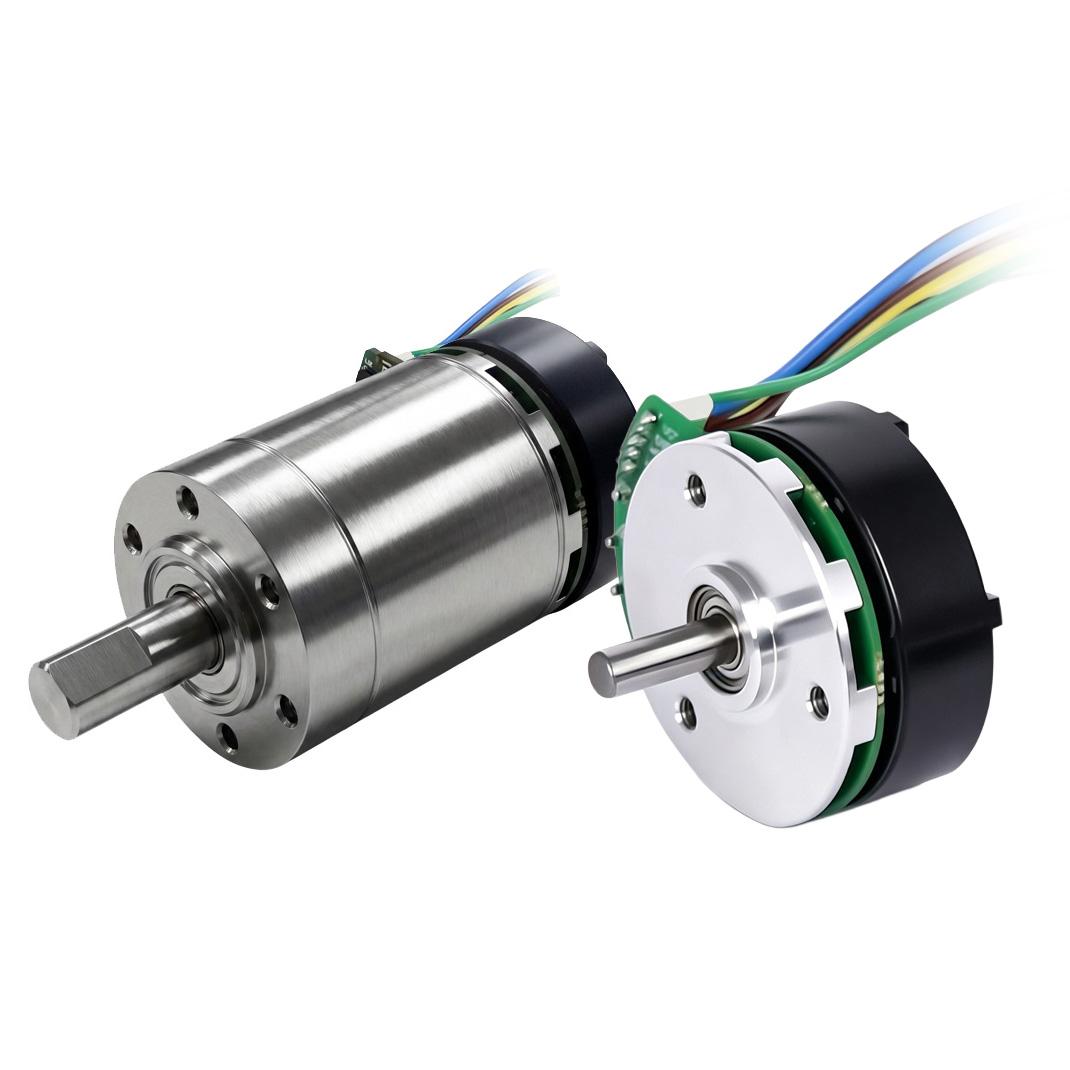

SEF32CH016 SeriesFlat BLDC Motors
- External-rotor construction
- Hall sensor feedback
- Planetary gearbox configurations
- 1.250 in Frame Size
- 0.64 to 2.38 in Length
- 24 VDC Rated Voltage
- 2.87 A Rated Current
Models
| Model # | Frame size | Phase | Input Voltage | Rated Speed | Rated Torque | Rated Current | Max Speed | Max Torque | Torque Constant | Hall Sensor | Resistance | Inertia, oz-in² | Weight, lbs | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SEF32CH016-24 | 1.250 in | 3 | 24 VDC | 11606 RPM | 7.08 oz-in | 2.87 A | 11606 RPM | 19.97 oz-in | 2.549 oz-in/A | Yes | 0.507 | 0.127 oz-in² | 0.13 lbs | Quote |
| SEF32CH016-24-G4 | 1.250 in | 3 | 24 VDC | 2316 RPM | 25.07 oz-in | 2.87 A | 2938 RPM | 441.83 oz-in | 2.549 oz-in/A | Yes | 0.507 | 0.127 oz-in² | 0.463 lbs | Quote |
| SEF32CH016-24-G5 | 1.250 in | 3 | 24 VDC | 1726 RPM | 33.7 oz-in | 2.87 A | 2190 RPM | 594.77 oz-in | 2.549 oz-in/A | Yes | 0.507 | 0.127 oz-in² | 0.463 lbs | Quote |
| SEF32CH016-24-G35 | 1.250 in | 3 | 24 VDC | 261 RPM | 212.42 oz-in | 2.87 A | 331 RPM | 3752.72 oz-in | 2.549 oz-in/A | Yes | 0.507 | 0.127 oz-in² | 0.545 lbs | Quote |
| SEF32CH016-24-G62 | 1.250 in | 3 | 24 VDC | 148.7 RPM | 325.71 oz-in | 2.87 A | 148.75 RPM | 5806.09 oz-in | 2.549 oz-in/A | Yes | 0.507 | 0.127 oz-in² | 0.628 lbs | Quote |

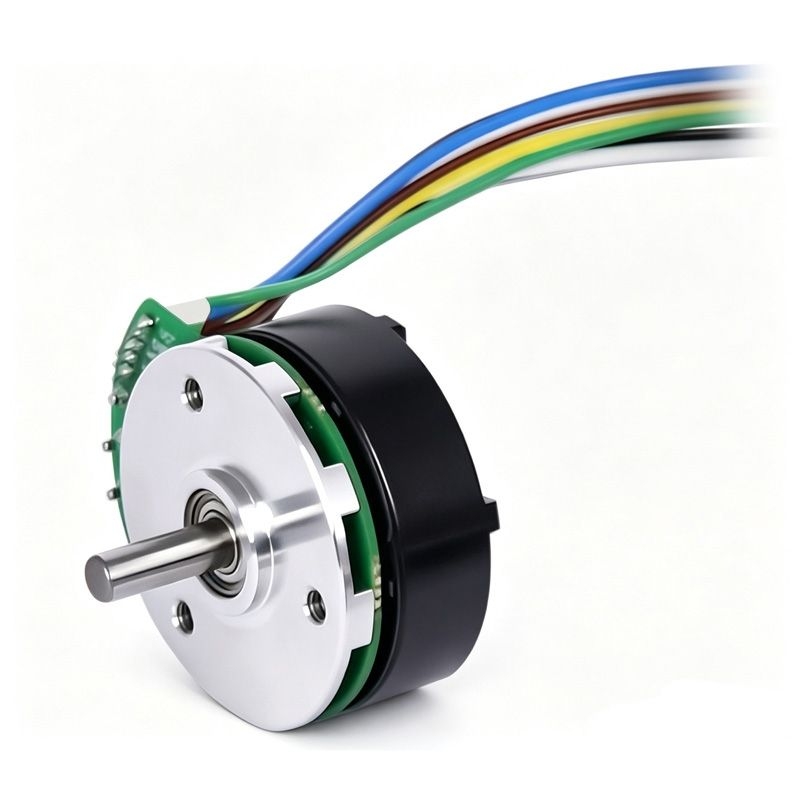

Flat motors for designs with limited axial space
The ESF family of flat outrunner brushless DC motors uses an outer-rotor design for applications where axial space is limited. A nominal 32 mm diameter and bare-motor body length of 16.2 mm provide a shallow profile. This compact form factor is ideal for applications where motor length is a key design constraint.

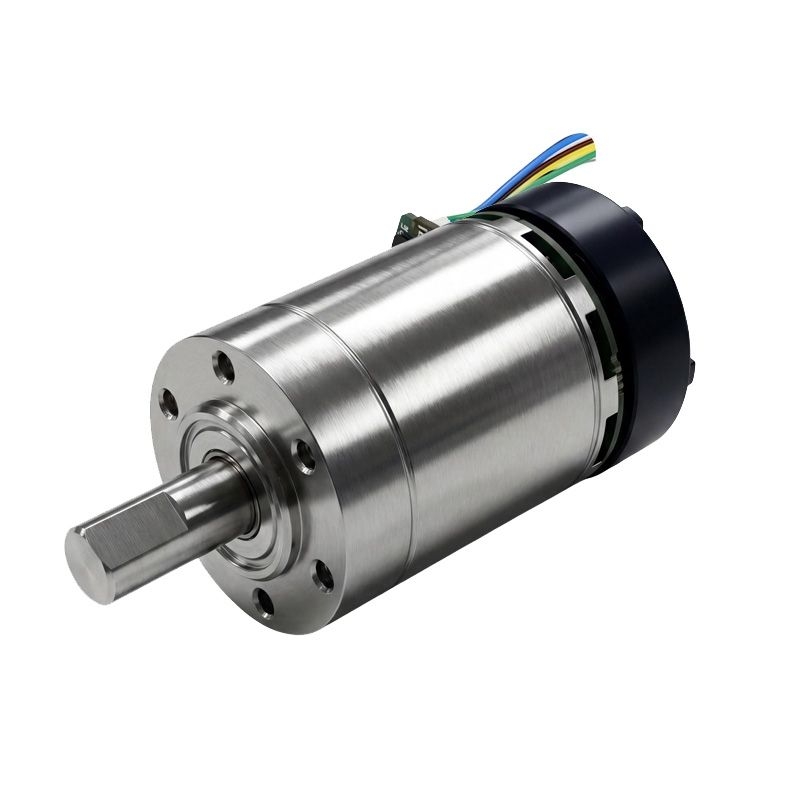

Planetary gearbox options to match your load
ESF family motors are available with compact planetary gearboxes that increase output torque while keeping the overall assembly short. Multiple gear ratios accommodate different torque and speed requirements, allowing you to match the geared motor to your load. Higher reduction ratios provide greater output torque at lower speeds, while lower ratios retain more output speed.
