5718 Series - Rapid Prototyping Motors


Hybrid Stepper Motor

Unit Price:



10 Available in 2 Business Days


2 Business Days

Part Number:


No Gearbox
Single Shaft
Flat Shaft
No Encoder
- empty -
- empty -
Flying Leads
24 inch (61.00 cm)
Looking For Higher Volume?


ModelDIM. A (length) in
5718X-01S1.740 in

Torque Curves



Motor Specifications

Part Number5718X-01S
Step Angle1.8°
Frame Size2.250 in
Body Length1.740 in
Current (AMP)1.4 AMP
Holding Torque100.54 oz-in
Rotor Inertia0.7 oz-in²
Number of leads4
Weight1.05 lbs

Operating Specifications

Radial Play0.001 in @ 1.00 lbs
End Play0.003 in @ 3.00 lbs
Shaft Run Out0.002 TIR
Concentricity of Mounting Pilot to Shaft0.003 TIR
Perpendicularity of Mounting Pilot to Face0.003 TIR
Max Radial Load at Dimension "K" from mounting face15.00 lbs
Dimension "K"0.550 in
Max Axial Load13.00 lbs
Maximum Case Temperature176 °F maximum
Ambient Temperature-4 ° to 122 °F
Storage Temperature-4 ° to 212 °F
Humidity Range (%) 85% or less, non-condensing
Magnet Wire InsulationClass B 130 deg C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min

Specialty Motors

Vacuum Rated Motors
Card image

Vacuum rated motors, for example, are perfect for environments where out-gassing needs to be minimized, which includes vacuum chambers, space applications, and clean room environments.

IP Rated Motors
Card image

IP (Ingress Protection) rated motors are perfect for applications exposed to humidity, water, oil, and other various debris.

Customizations & Optimizations

Lin Engineering can ensure that your hybrid stepper motor is optimized to deliver the required performance for your specific application, whether it’s increasing torque at a specific speed range, reducing noise or vibration, or optimizing for minimal power consumption, or making specific modification  to ensure proper and native fit within your assembly.

Content image

Customization Services Include:

  • Optimized Winding
  • Multiple Shaft Options
  • Customized Leads & Connectors
  • Customized Housings & Mountings
  • Bearings & Lubricants
  • Mechatronic Solutions
  • Environmental Protection
  • Drivers & Controllers, Encoders, Gearboxes & Accessories


Learn More About Motor Customizations & Optimizations

The result is that you’ll get a motor that is fully optimized for your specific applications and configured to seamlessly fit with your assembly. This reduces your product's complexity, and increases the speed and ease of the assembly of your final product.


Speak with one of our sales representatives about your specific application needs by filling out a request for a quote.

Encoder Options

E5S - Single-Ended Optical Encoder

Content image

View E5S Specifications


E5D - Differential Optical Encoder

Content image

View E5D Specifications

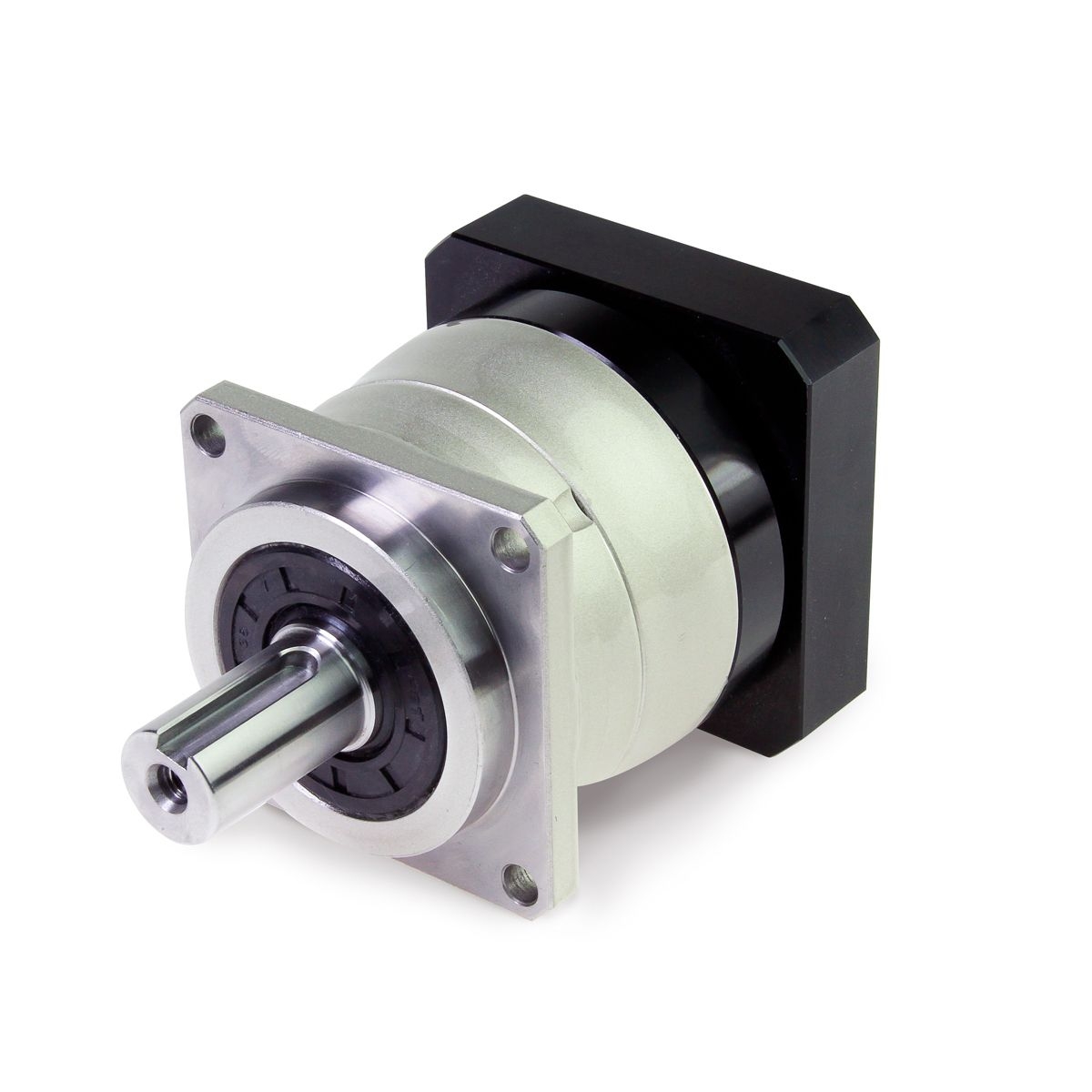

Gearbox Options

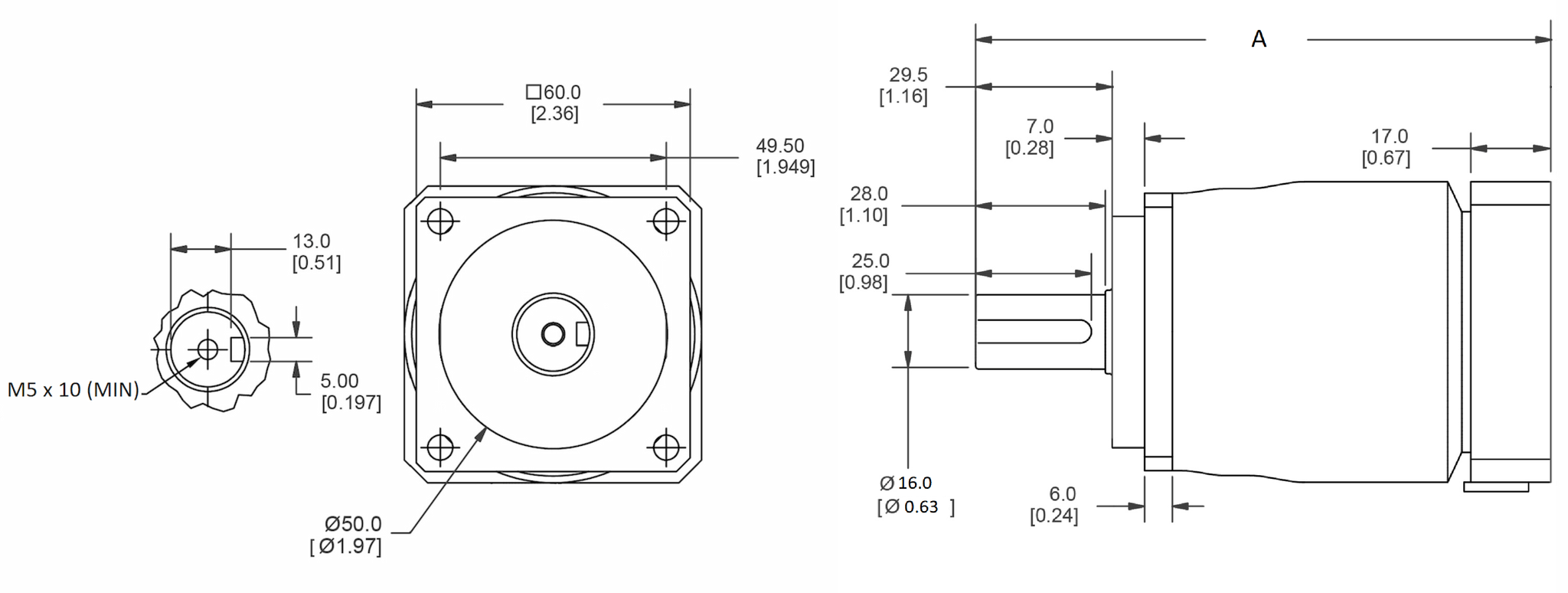

StageDimension A
1106mm (4.17in)
2127.5mm (5.02in)
Content image
Nominal Output TorqueNm60405060
Emergency Stop TorqueNm3 times nominal output torque
Nominal Input SpeedRPM5000
Max Input SpeedRPM10000
Max Radial LoadN1377
Max Axial LoadN765
Efficiency η%9085
Protection Class IP65
Service Lifehr20000
Operating Temperature°C-20 to 90
Lubrication synthetic lubrication oils
Noise (n = 3000 rpm)dB(A)56545855
Mass Moment of Inertiakg-cm²0.
Content image

5718 Series

Related Products


WO-5718X-01S Datasheet (PDF)
Lin Engineering Catalog 2020 (PDF)
Motor Numbering System (PDF)
