SLU30CH064 Series
SLU30CH064-48
Slotless BLDC Motor

Name: SLU30CH064-48
Brand: Lin Engineering
SKU: SLU30CH064-48
Price: 447 USD
Availability: PreOrder

Quick Facts

SLU30CH064-48 Slotless BLDC Motors

Specifications:

1.180 in Frame Size
1.25 A Rated Current
8.4967 oz-in Rated Torque
48 VDC Nominal Voltage
null Length

Features and Benefits:

Extremely quick response and high acceleration
Quiet Operation
High power density

Specifications

Motor Specifications

Frame Size	1.180 in
Motor Type	Motor Only
Weight	0.001 lbs
Number of pole	2
Number of Phases	3
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	48 VDC
No Load Speed	9972 RPM
No Load Current	335 mA
Nominal Speed	9260 RPM
Nominal Torque (Max Cont. Torque)	10.6634 oz-in
Nominal Current (Max Cont. Current)	1.98 A
Rated Speed	9260 RPM
Rated Torque	8.4967 oz-in
Rated Current	1.25 A
Stall Torque	150.5335 oz-in
Stall Current	23.2 A
Max. Efficiency	86%

Motor Characteristics

Terminal Resistance	2.07 ohm
Terminal Inductance	0.4129 mH
Speed/Torque Gradient	1.2745 RPM/oz-in
Speed Constant	208.4 RPM/V
Mechanical Time Constant	1.91 ms
Rotor Inertia	0.106 oz-in²

Motor Mechanical Data

Axial play	0.006 in
Radial play	0.000
Max. Radial Load	5.62 lbf
Max Speed (Mechanical)	15000 RPM

Motor Thermal Data

Ambient Temperature	-40 °F to 212.00 °F
Insulation Class	F
Max winding temperature	311.00 °F
Max winding temperature	311.00 °F
Thermal resistance (Housing-Ambient)	49.28 °F/W
Thermal resistance (Winding-Housing)	33.76 °F/W
Thermal time constant motor	1240 s
Thermal time constant winding	6.8 s

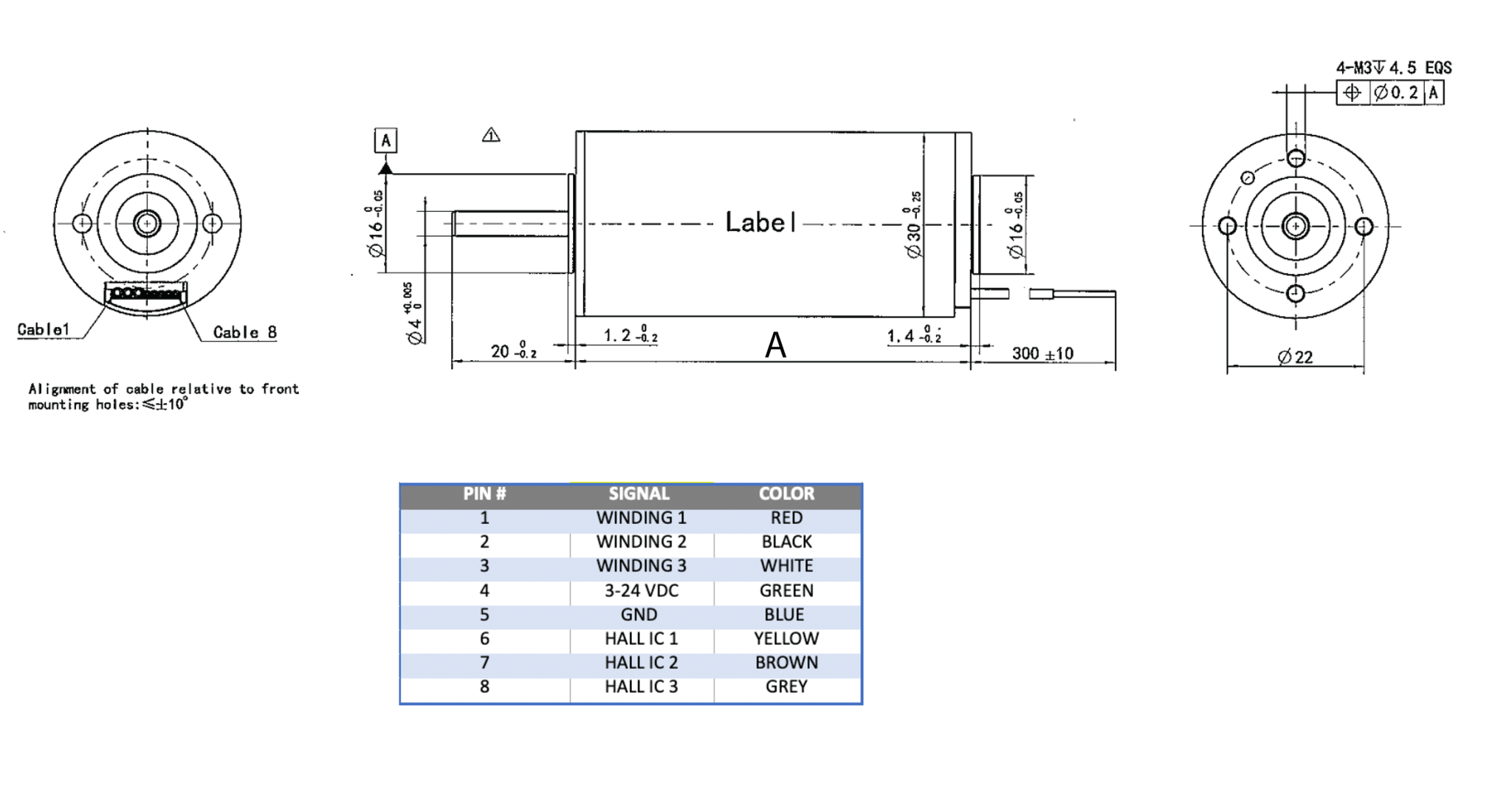

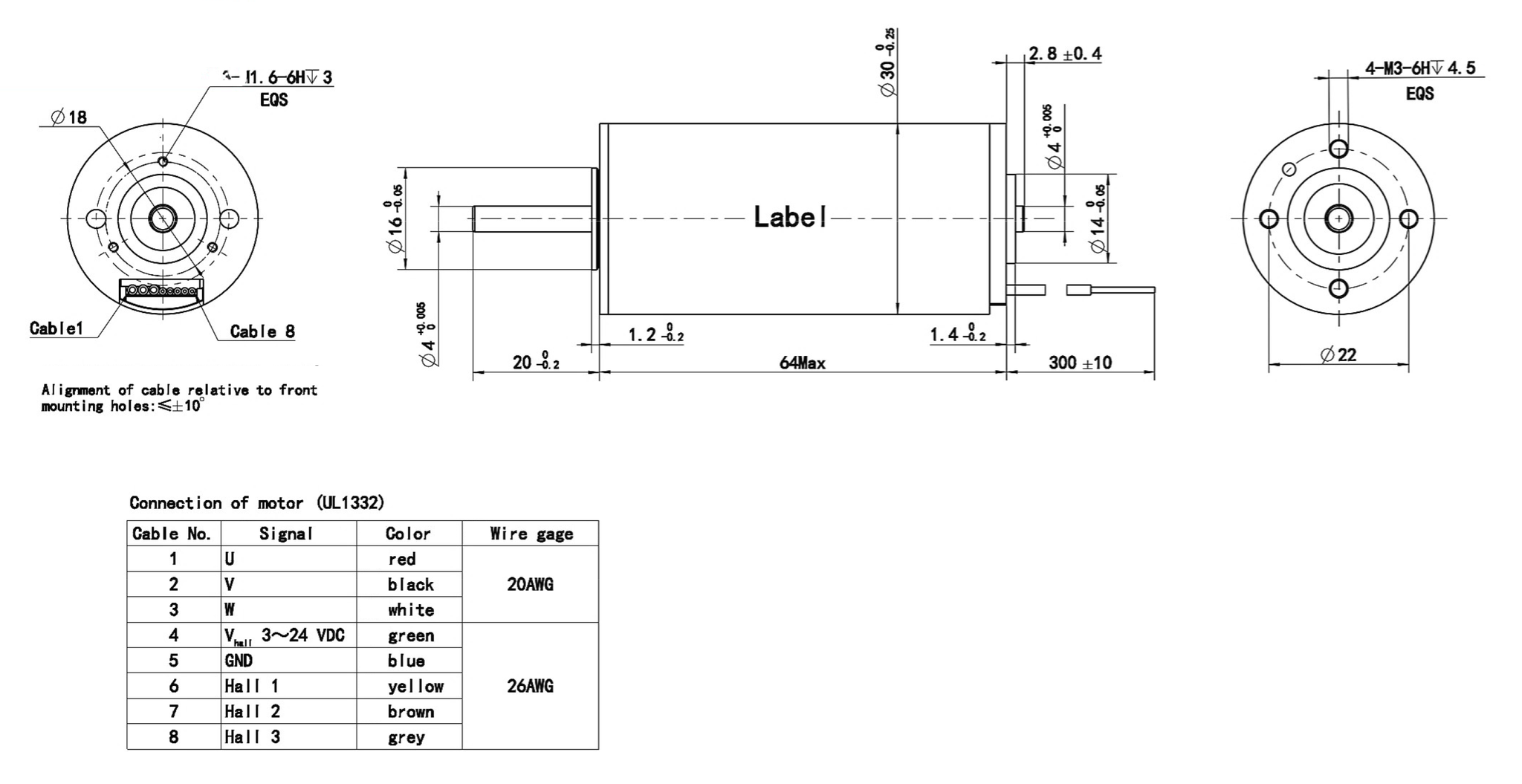

Dimensions

Model	DIM. A (length) in MAX
SLU30CH064-48

Performance Curve

SLU30CH064 Series

Downloads

SLU30CH064-48 Configured Datasheet (PDF)
