SLU30CH064 Series
SLU30CH064-36
Slotless BLDC Motor

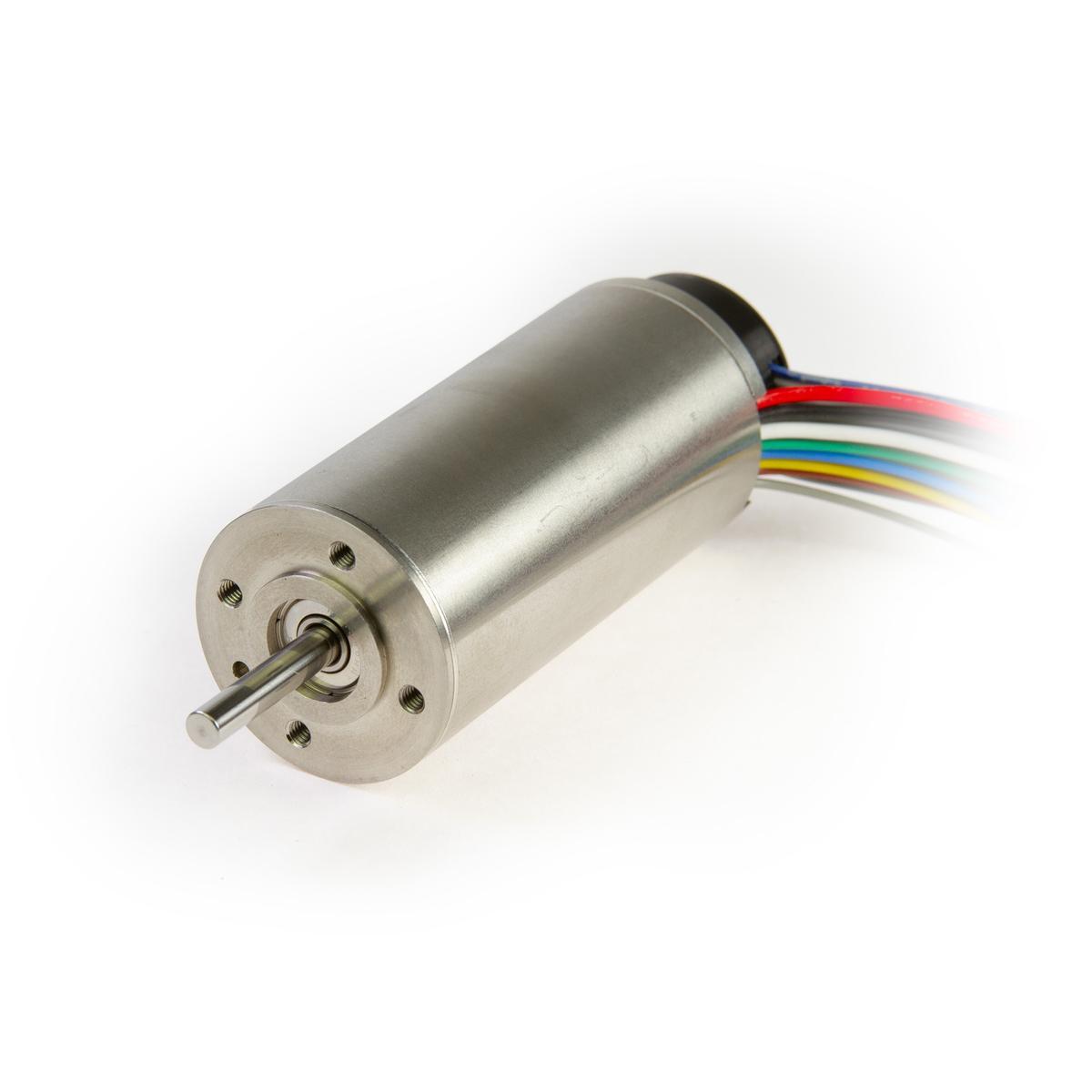

Featured product media

Quick Facts

SLU30CH064-36 Slotless BLDC Motors

Specifications:
  • 1.180 in Frame Size
  • 1.88 A Rated Current
  • 9.3464 oz-in Rated Torque
  • 36 VDC Nominal Voltage
  • 2.520 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size1.180 in
Motor TypeMotor Only
Weight0.615 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage36 VDC
No Load Speed 10349 RPM
No Load Current502 mA
Nominal Speed3700 RPM
Rated Speed9347 RPM
Rated Torque9.3464 oz-in
Rated Current1.88 A
Stall Current41 A
Max. Efficiency88%

Motor Characteristics

Terminal Resistance0.878 ohm
Terminal Inductance0.2066 mH
Speed/Torque Gradient 1.1046 RPM/oz-in
Speed Constant290.8 RPM/V
Mechanical Time Constant1.58 ms

Motor Mechanical Data

Max. Radial Load5.62 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor1094 s
Thermal time constant winding9.1 s

Performance Curve

SLU30CH064-36
@36 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU30CH064 Series

Downloads

SLU30CH064-36 Configured Datasheet (PDF)
