SLU30CH064 SeriesSLU30CH064-24-G16Slotless BLDC Motor
Quick Facts
SLU30CH064-24-G16 Slotless BLDC Motors
SLU30CH064-24-G16 Slotless BLDC Motors
Specifications:
- 1.180 in Frame Size
- 2.77 A Rated Current
- 124.6185 oz-in Rated Torque
- 24 VDC Nominal Voltage
- 4.000 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Specifications
Motor Specifications
| Frame Size | 1.180 in |
| Motor Type | Motor + Gearhead |
| Weight | 1.008 lbs |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 24 VDC |
| No Load Speed | 655 RPM |
| No Load Current | 660 mA |
| Nominal Speed | 574 RPM |
| Rated Speed | 563.7 RPM |
| Rated Torque | 124.6185 oz-in |
| Rated Current | 2.77 A |
| Stall Torque | 2549.0147 oz-in |
| Stall Current | 60 A |
| Max. Efficiency | 75.4% |
Motor Characteristics
| Terminal Resistance | 0.4 ohm |
| Terminal Inductance | 0.0958 mH |
| Speed/Torque Gradient | 1.0904 RPM/oz-in |
| Speed Constant | 428 RPM/V |
Motor Mechanical Data
| Max. Radial Load | 22.48 lbf |
Motor Thermal Data
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
Gearhead Specifications
| Gearhead Reduction Ratio | 16 |
| Nominal Reduction Ratio | 16 |

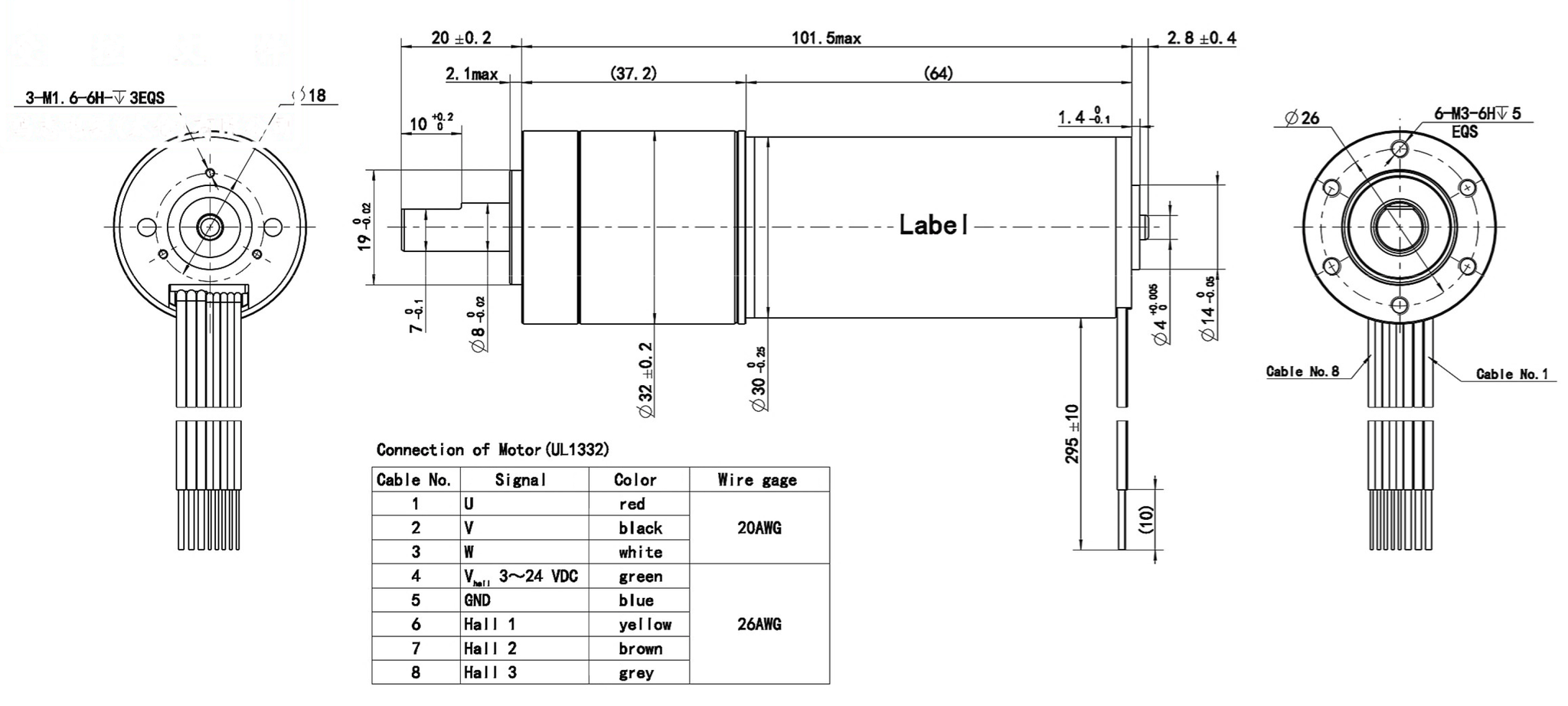

Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| SLU30CH064-24-G16 | 4.000 in |
Performance Curve
SLU30CH064-24-G16
@24 VDC, 16:1 reduction
- Speed
- Current
- Power
- Efficiency
- Operating Area
- Maximum Continuous Torque
Generate new cureve based on different VDC
SLU30CH064 Series
Downloads
SLU30CH064-24-G16 Configured Datasheet (PDF)
