SLU30CH064 SeriesSLU30CH064-24-G138-M24-1024Slotless BLDC Motor
Quick Facts
SLU30CH064-24-G138-M24-1024 Slotless BLDC Motors
SLU30CH064-24-G138-M24-1024 Slotless BLDC Motors
Specifications:
- 1.180 in Frame Size
- 2.15 A Rated Current
- 708.0597 oz-in Rated Torque
- 24 VDC Nominal Voltage
- 4.700 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Specifications
Motor Specifications
| Frame Size | 1.180 in |
| Motor Type | Motor + Encoder + Gearhead |
| Weight | 1.118 lbs |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 24 VDC |
| No Load Speed | 74 RPM |
| No Load Current | 660 mA |
| Nominal Speed | 67 RPM |
| Rated Speed | 66.3 RPM |
| Rated Torque | 708.0597 oz-in |
| Rated Current | 2.15 A |
| Stall Torque | 19684.0583 oz-in |
| Stall Current | 60 A |
| Max. Efficiency | 65.8% |
Motor Characteristics
| Terminal Resistance | 0.4 ohm |
| Terminal Inductance | 0.0958 mH |
| Speed/Torque Gradient | 1.0904 RPM/oz-in |
| Speed Constant | 428 RPM/V |
Motor Mechanical Data
| Max. Radial Load | 22.48 lbf |
Motor Thermal Data
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
Gearhead Specifications
| Gearhead Reduction Ratio | 138 |
| Nominal Reduction Ratio | 138 |
Encoder Specifications
| Encoder Type | 1024-line incremental magnetic encoder |

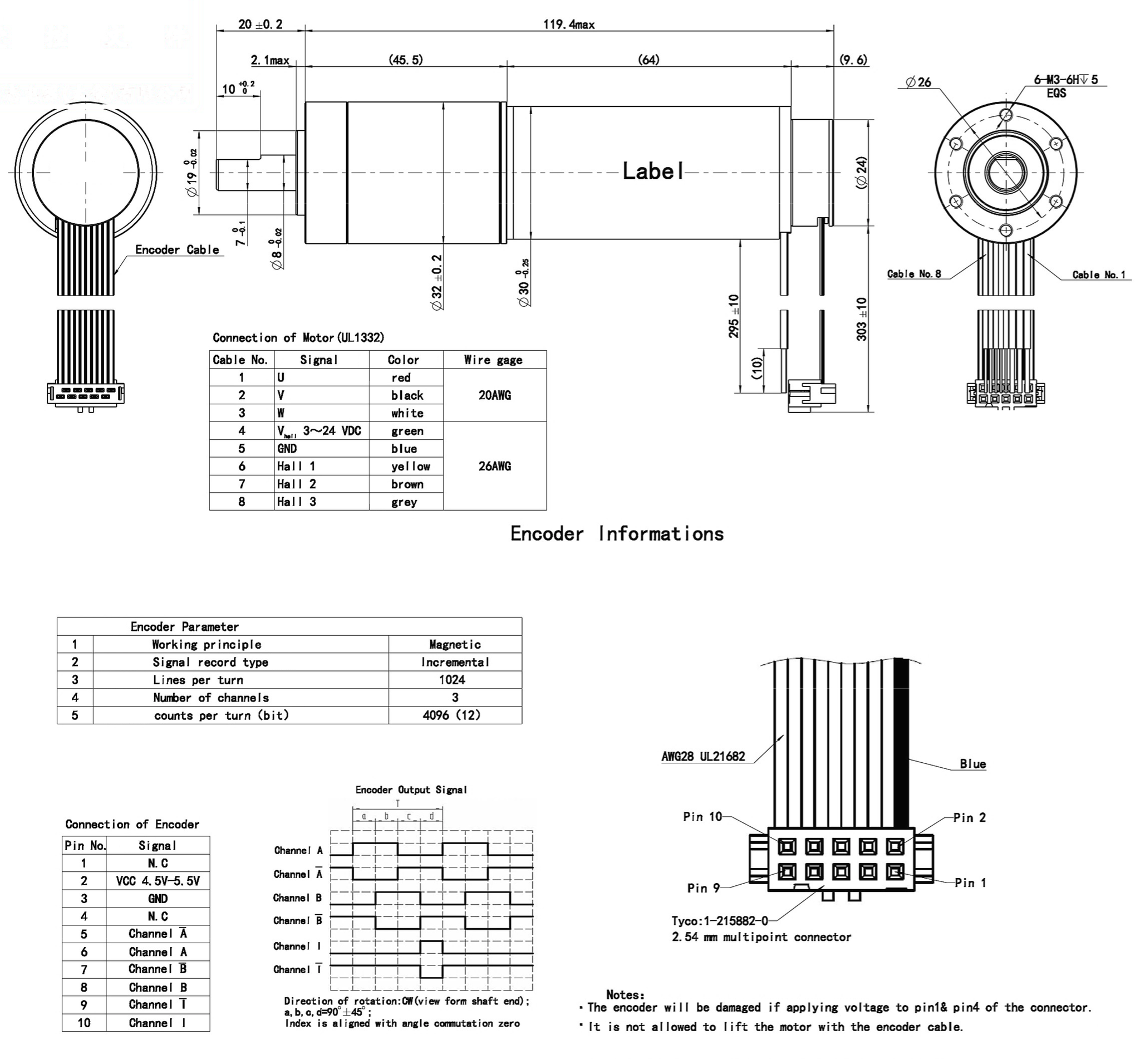

Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| SLU30CH064-24-G138-M24-1024 | 4.700 in |
Performance Curve
SLU30CH064-24-G138-M24-1024
@24 VDC, 138:1 reduction
- Speed
- Current
- Power
- Efficiency
- Operating Area
- Maximum Continuous Torque
Generate new cureve based on different VDC
SLU30CH064 Series
Downloads
SLU30CH064-24-G138-M24-1024 Configured Datasheet (PDF)
