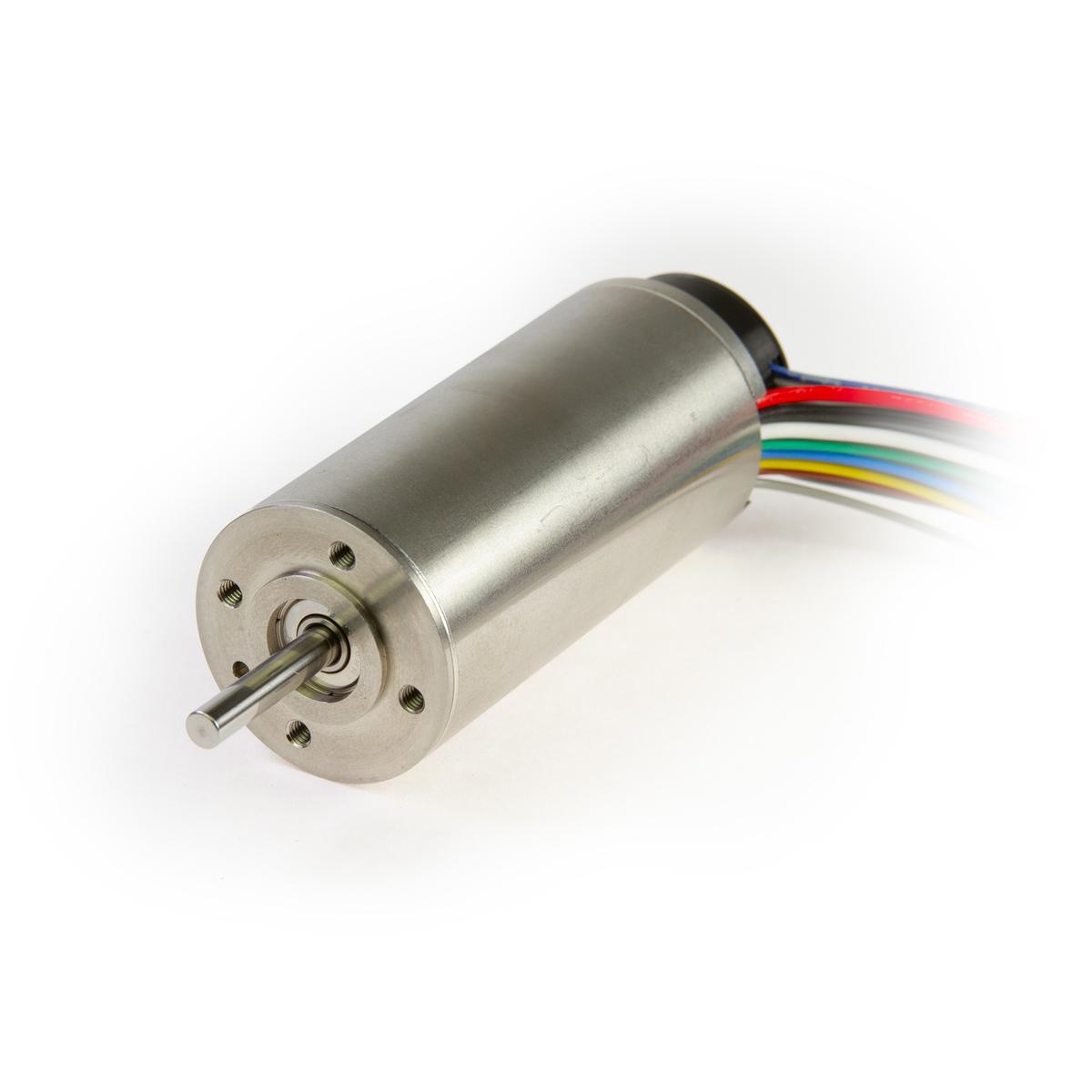

SLU30CH064 Series
SLU30CH064-24
Slotless BLDC Motor

Name: SLU30CH064-24
Brand: Lin Engineering
SKU: SLU30CH064-24
Price: 240 USD
Availability: PreOrder

Quick Facts

SLU30CH064-24 Slotless BLDC Motors

Specifications:

1.180 in Frame Size
2.43 A Rated Current
8.4967 oz-in Rated Torque
24 VDC Nominal Voltage
2.520 in Length

Features and Benefits:

Extremely quick response and high acceleration
Quiet Operation
High power density

Specifications

Motor Specifications

Frame Size	1.180 in
Motor Type	Motor Only
Weight	0.604 lbs
Number of pole	2
Number of Phases	3
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	24 VDC
No Load Speed	9955 RPM
No Load Current	520 mA
Nominal Speed	9190 RPM
Nominal Torque (Max Cont. Torque)	10.72 oz-in
Nominal Current (Max Cont. Current)	3.84 A
Rated Speed	8600 RPM
Rated Torque	8.4967 oz-in
Rated Current	2.43 A
Stall Torque	140.7623 oz-in
Stall Current	43.6 A
Max. Efficiency	86%

Motor Characteristics

Terminal Resistance	0.551 ohm
Terminal Inductance	0.104 mH
Speed/Torque Gradient	1.4161 RPM/oz-in
Speed Constant	418.6 RPM/V
Mechanical Time Constant	2.05 ms
Rotor Inertia	0.106 oz-in²

Motor Mechanical Data

Radial play	Preloaded
Max. Radial Load	5.62 lbf
Distance From Flange For Radial Load	5 in
Max Force For Press Fit	22.03 lbf
Max Speed (Mechanical)	15000 RPM

Motor Thermal Data

Ambient Temperature	-40 °F to 212.00 °F
Insulation Class	F
Max winding temperature	311.00 °F
Max winding temperature	311.00 °F
Thermal resistance (Housing-Ambient)	49.28 °F/W
Thermal resistance (Winding-Housing)	33.76 °F/W
Thermal time constant motor	1094 s
Thermal time constant winding	6.8 s

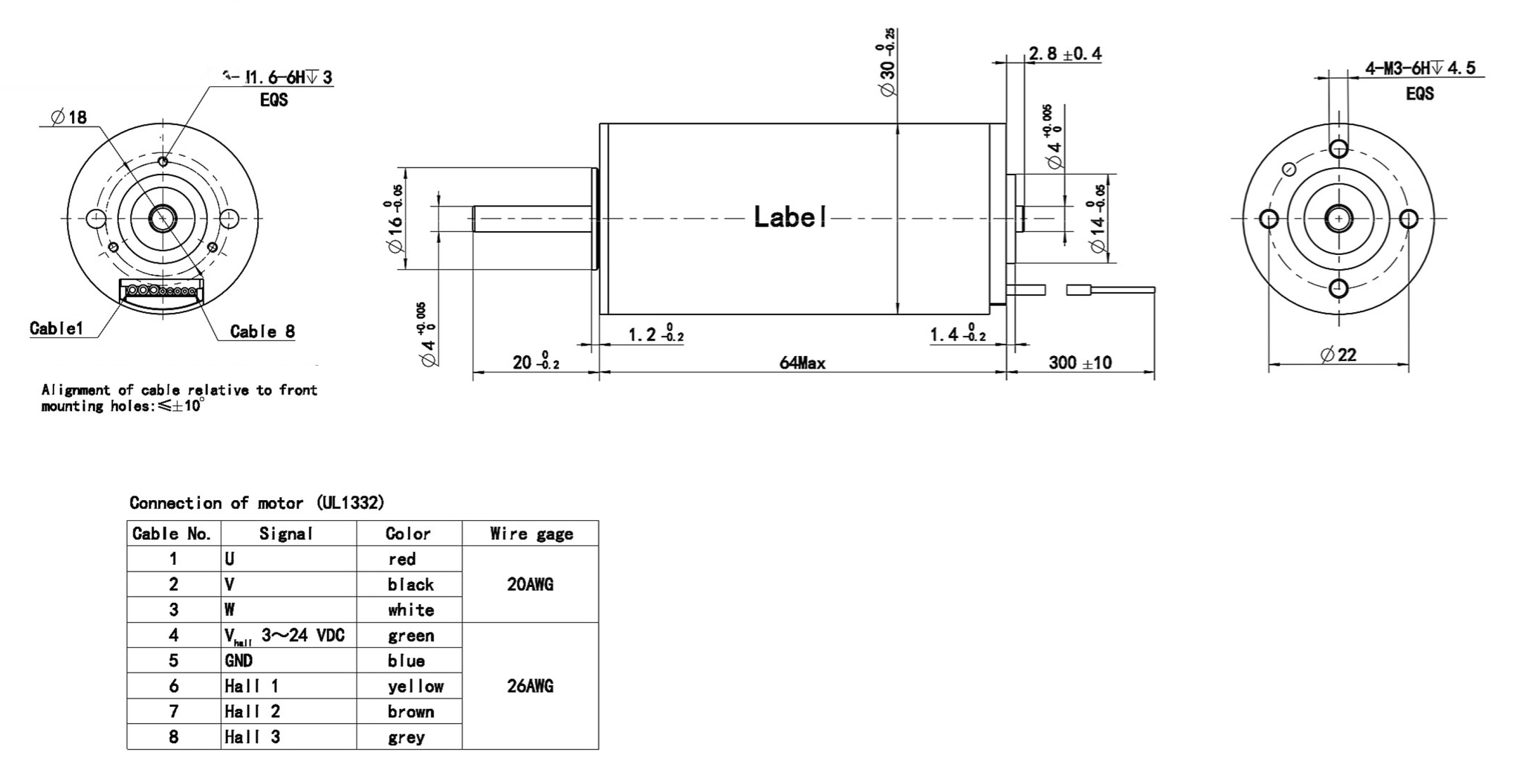

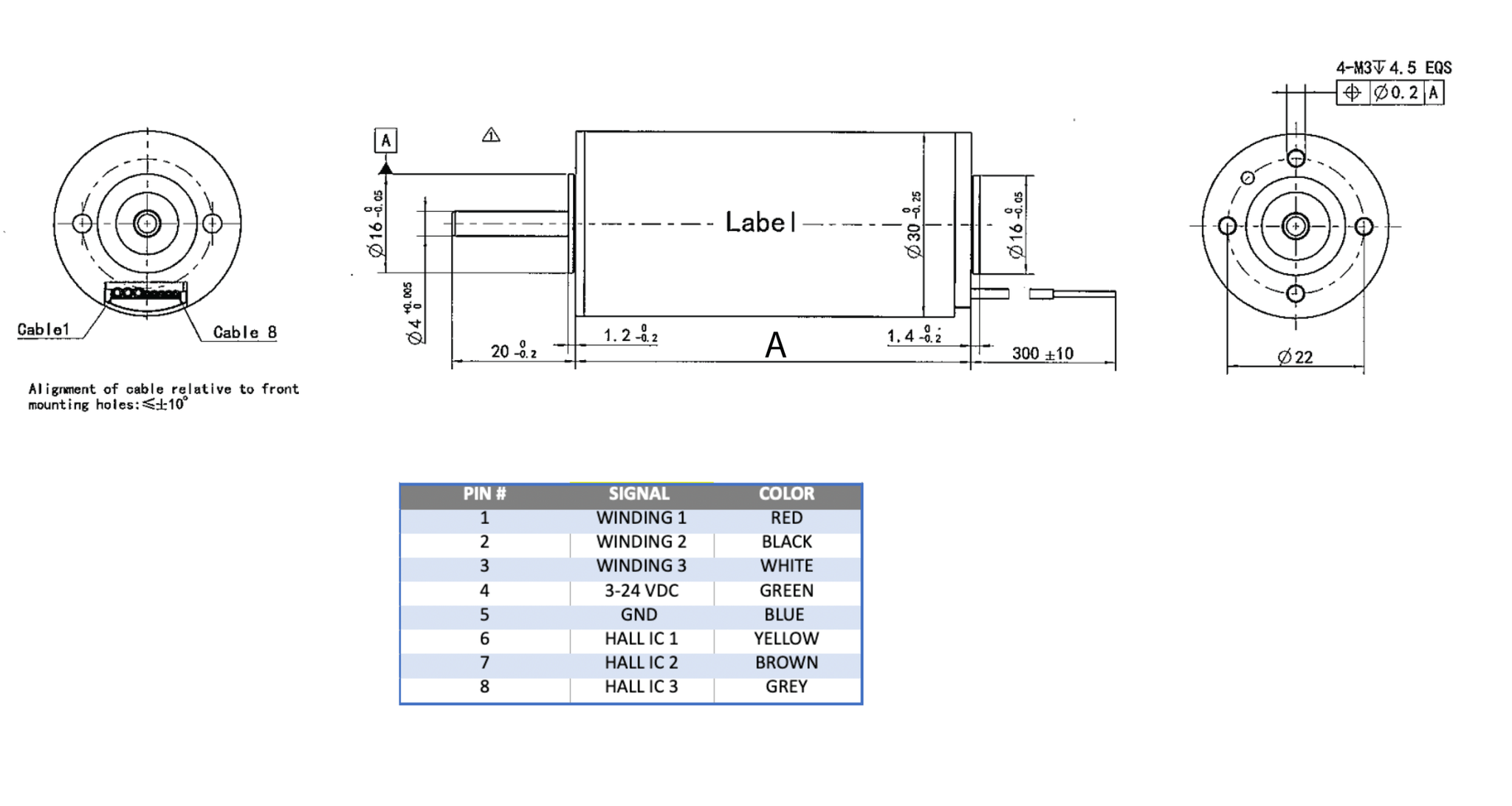

Dimensions

Model	DIM. A (length) in MAX
SLU30CH064-24	2.520 in

Performance Curve

SLU30CH064 Series

Downloads

SLU30CH064-24 Configured Datasheet (PDF)
