SLU30CH042 Series
SLU30CH042-24-M24-1024
Slotless BLDC Motor

Featured product media

Quick Facts

SLU30CH042-24-M24-1024 Slotless BLDC Motors

Specifications:
  • 1.180 in Frame Size
  • 1.04 A Rated Current
  • 3.3987 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 2.040 in Length

Specifications

Motor Specifications

Frame Size1.180 in
Motor TypeMotor + Encoder
Weight0.45 lbs

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 10300 RPM
No Load Current230 mA
Nominal Speed8600 RPM
Rated Speed8600 RPM
Rated Torque3.3987 oz-in
Rated Current1.04 A
Stall Torque40.416 oz-in
Stall Current13.3 A
Max. Efficiency79%

Motor Characteristics

Terminal Resistance1.8 ohm
Terminal Inductance0.215 mH
Speed/Torque Gradient 5.2821 RPM/oz-in
Speed Constant445 RPM/V
Mechanical Time Constant4.1 ms

Motor Mechanical Data

Max. Radial Load5.62 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor1140 s
Thermal time constant winding3.8 s

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

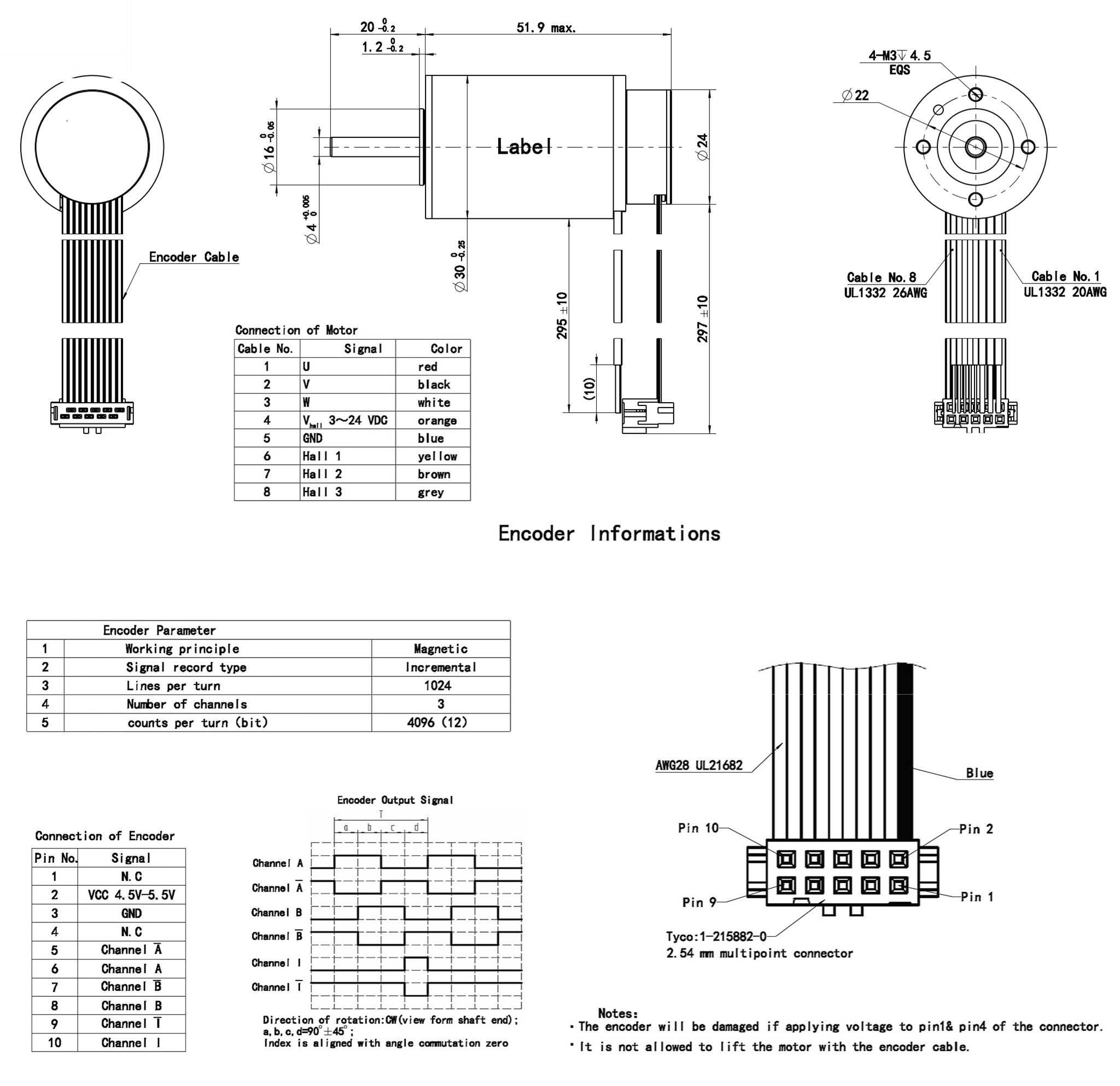

Dimensions

ModelDIM. A (length) in MAX
SLU30CH042-24-M24-10242.040 in

Performance Curve

SLU30CH042-24-M24-1024
@24 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU30CH042 Series

Downloads

SLU30CH042-24-M24-1024 Configured Datasheet (PDF)
