SLU30CH042 Series
SLU30CH042-24-G35-M24-1024
Slotless BLDC Motor

Featured product media

Quick Facts

SLU30CH042-24-G35-M24-1024 Slotless BLDC Motors

Specifications:
  • 1.180 in Frame Size
  • 1.04 A Rated Current
  • 101.9606 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 3.510 in Length

Specifications

Motor Specifications

Frame Size1.180 in
Motor TypeMotor + Encoder + Gearhead
Weight0.825 lbs

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 294 RPM
No Load Current250 mA
Nominal Speed246 RPM
Rated Speed259.8 RPM
Rated Torque101.9606 oz-in
Rated Current1.04 A
Stall Torque1217.8626 oz-in
Stall Current13.3 A
Max. Efficiency69.1%

Motor Characteristics

Terminal Resistance1.8 ohm
Terminal Inductance0.215 mH
Speed/Torque Gradient 5.2821 RPM/oz-in
Speed Constant445 RPM/V

Motor Mechanical Data

Max. Radial Load22.48 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F

Gearhead Specifications

Gearhead Reduction Ratio35
Nominal Reduction Ratio35

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

Dimensions

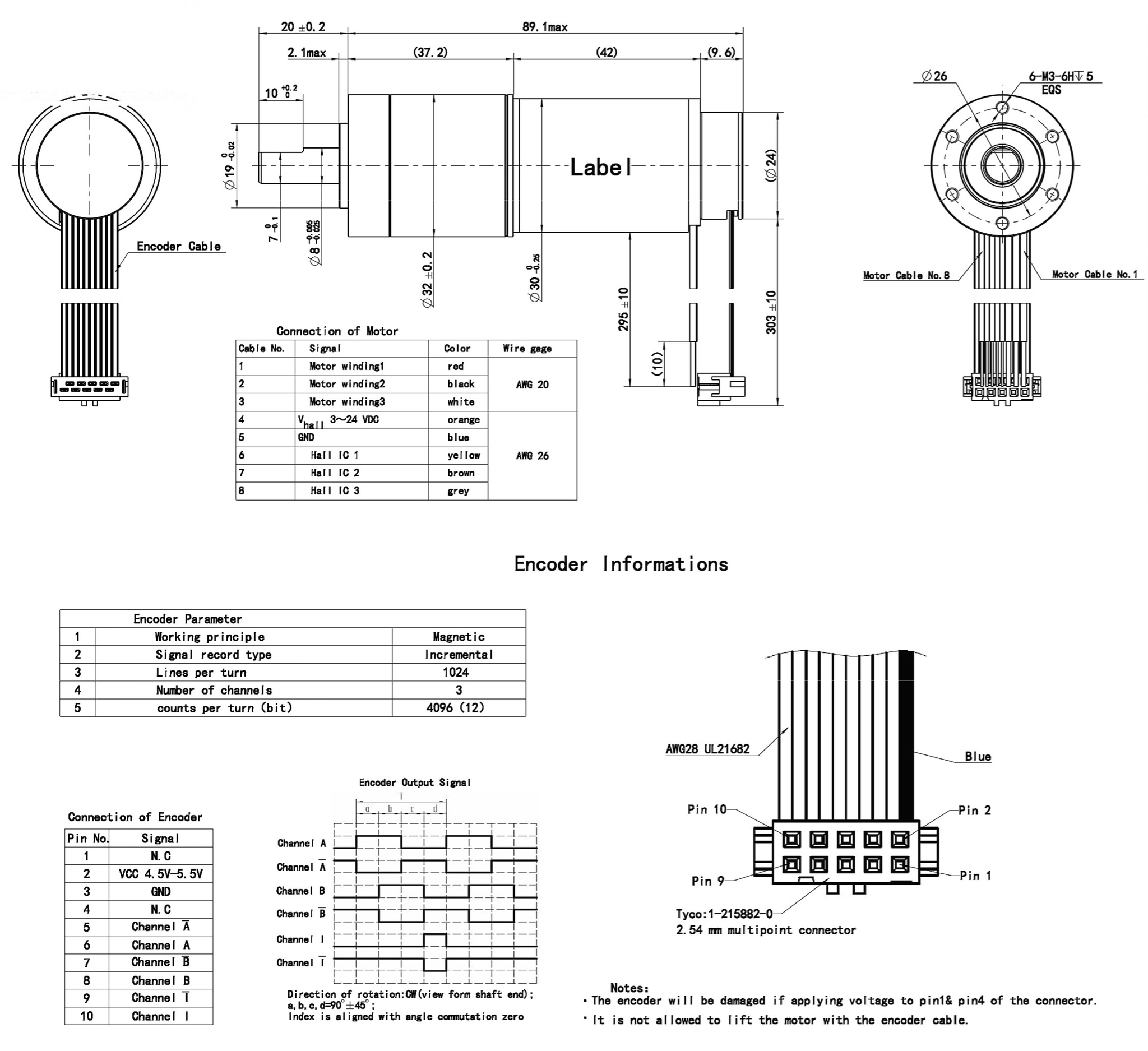

ModelDIM. A (length) in MAX
SLU30CH042-24-G35-M24-10243.510 in

Performance Curve

SLU30CH042-24-G35-M24-1024
@24 VDC, 35:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU30CH042 Series

Downloads

SLU30CH042-24-G35-M24-1024 Configured Datasheet (PDF)
