SLU30CH042 Series
SLU30CH042-24-G231
Slotless BLDC Motor

Featured product media

Quick Facts

SLU30CH042-24-G231 Slotless BLDC Motors

Specifications:
  • 1.180 in Frame Size
  • 1.04 A Rated Current
  • 589.1056 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 3.460 in Length

Specifications

Motor Specifications

Frame Size1.180 in
Motor TypeMotor + Gearhead
Weight0.858 lbs

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 45 RPM
No Load Current250 mA
Nominal Speed37 RPM
Rated Speed39.4 RPM
Rated Torque589.1056 oz-in
Rated Current1.04 A
Stall Torque7023.9517 oz-in
Stall Current13.3 A
Max. Efficiency60.2%

Motor Characteristics

Terminal Resistance1.8 ohm
Terminal Inductance0.215 mH
Speed/Torque Gradient 5.2821 RPM/oz-in
Speed Constant445 RPM/V

Motor Mechanical Data

Max. Radial Load22.48 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F

Gearhead Specifications

Gearhead Reduction Ratio231
Nominal Reduction Ratio231

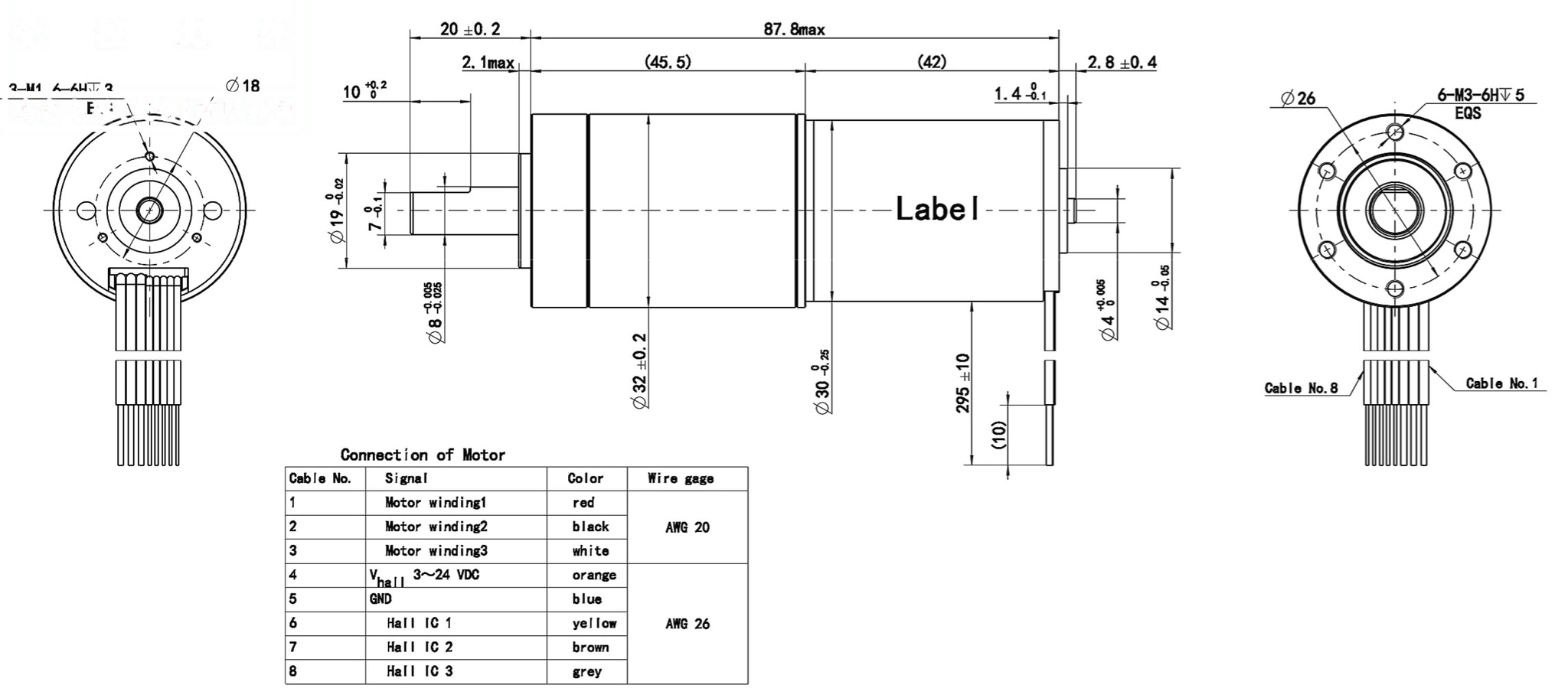

Dimensions

ModelDIM. A (length) in MAX
SLU30CH042-24-G2313.460 in

Performance Curve

SLU30CH042-24-G231
@24 VDC, 231:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU30CH042 Series

Downloads

SLU30CH042-24-G231 Configured Datasheet (PDF)
