SLU26CH056 Series
SLU26CH056-48
Slotless BLDC Motor

Featured product media

Quick Facts

SLU26CH056-48 Slotless BLDC Motors

Specifications:
  • 1.020 in Frame Size
  • 0.92 A Rated Current
  • 6.2309 oz-in Rated Torque
  • 48 VDC Nominal Voltage
  • 2.200 in Length

Specifications

Motor Specifications

Frame Size1.020 in
Motor TypeMotor Only
Weight0.412 lbs

Motor Values (At Nominal Speed)

Nominal Voltage48 VDC
No Load Speed 10450 RPM
No Load Current207.3 mA
Nominal Speed9200 RPM
Nominal Torque (Max Cont. Torque)6.2309 oz-in
Rated Speed9200 RPM
Rated Torque6.2309 oz-in
Rated Current0.92 A
Stall Torque94.6393 oz-in
Stall Current14.91 A
Max. Efficiency87.5%

Motor Characteristics

Terminal Resistance3.22 ohm
Terminal Inductance0.638 mH
Speed/Torque Gradient 2.1667 RPM/oz-in
Speed Constant213 RPM/V
Mechanical Time Constant1.44 ms
Rotor Inertia0.049 oz-in²

Motor Mechanical Data

Max. Radial Load4.608 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Thermal time constant motor1178 s
Thermal time constant winding2.16 s

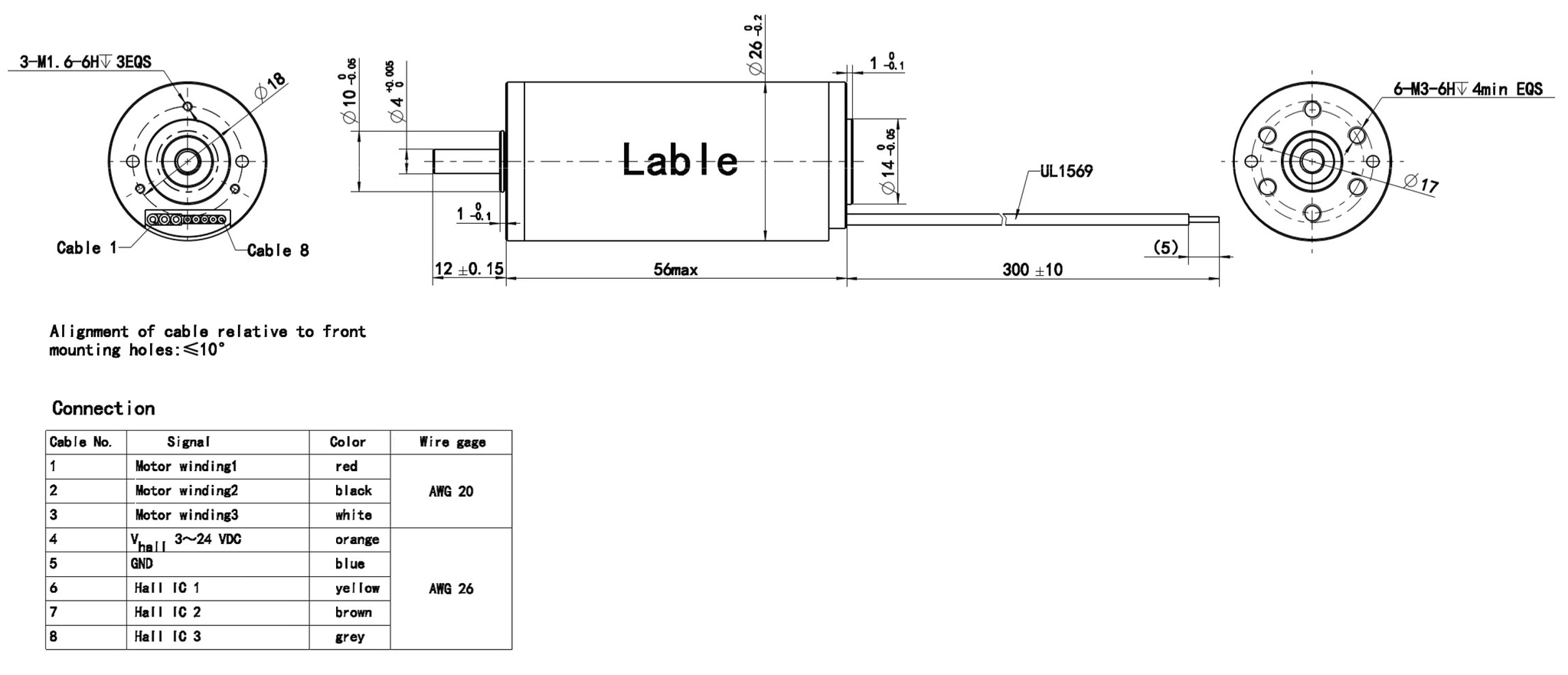

Dimensions

ModelDIM. A (length) in MAX
SLU26CH056-482.200 in

Performance Curve

SLU26CH056-48
@48 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU26CH056 Series

Downloads

SLU26CH056-48 Configured Datasheet (PDF)
SLU26CH056-48 (3D model) (STP)
