SLU26CH056 SeriesSLU26CH056-36-G4-M24-1024Slotless BLDC Motor
Quick Facts
SLU26CH056-36-G4-M24-1024 Slotless BLDC Motors
SLU26CH056-36-G4-M24-1024 Slotless BLDC Motors
Specifications:
- 1.020 in Frame Size
- 1.24 A Rated Current
- 23.1536 oz-in Rated Torque
- 36 VDC Nominal Voltage
- 3.990 in Length
Specifications
Motor Specifications
| Frame Size | 1.020 in |
| Motor Type | Motor + Encoder + Gearhead |
| Weight | 0.571 lbs |
Motor Values (At Nominal Speed)
| Nominal Voltage | 36 VDC |
| No Load Speed | 2614.9 RPM |
| No Load Current | 257.5 mA |
| Nominal Speed | 2362 RPM |
| Rated Speed | 2278 RPM |
| Rated Torque | 23.1536 oz-in |
| Rated Current | 1.24 A |
| Stall Torque | 341.2848 oz-in |
| Stall Current | 19.46 A |
| Max. Efficiency | 79.8% |
Motor Characteristics
| Terminal Resistance | 1.85 ohm |
| Terminal Inductance | 0.3617 mH |
| Speed/Torque Gradient | 2.1525 RPM/oz-in |
| Speed Constant | 280.5 RPM/V |
Motor Mechanical Data
| Max. Radial Load | 15.736 lbf |
Motor Thermal Data
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal time constant motor | 1178 s |
| Thermal time constant winding | 2.16 s |
Gearhead Specifications
| Gearhead Reduction Ratio | 4 |
| Nominal Reduction Ratio | 4 |
Encoder Specifications
| Encoder Type | 1024-line incremental magnetic encoder |
Dimensions

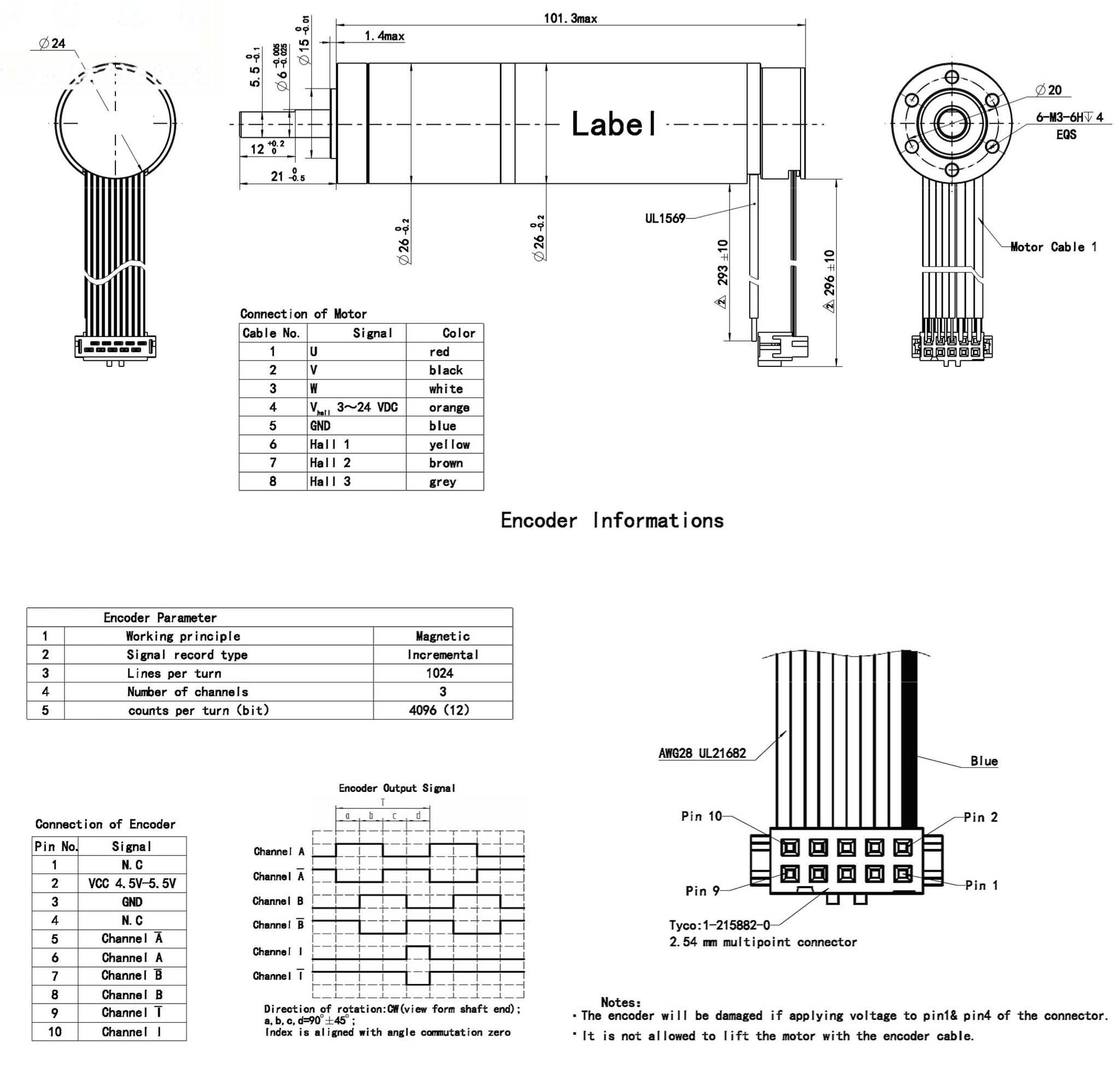

| Model | DIM. A (length) in MAX |
|---|---|
| SLU26CH056-36-G4-M24-1024 | 3.990 in |
Performance Curve
SLU26CH056-36-G4-M24-1024
@36 VDC, 4:1 reduction
- Speed
- Current
- Power
- Efficiency
- Operating Area
- Maximum Continuous Torque
Generate new cureve based on different VDC
