SLU26CH056 Series
SLU26CH056-36-G21
Slotless BLDC Motor

Featured product media

Quick Facts

SLU26CH056-36-G21 Slotless BLDC Motors

Specifications:
  • 1.020 in Frame Size
  • 1.24 A Rated Current
  • 110.8113 oz-in Rated Torque
  • 36 VDC Nominal Voltage
  • 3.330 in Length

Specifications

Motor Specifications

Frame Size1.020 in
Motor TypeMotor + Gearhead
Weight0.549 lbs

Motor Values (At Nominal Speed)

Nominal Voltage36 VDC
No Load Speed 493 RPM
No Load Current257.5 mA
Nominal Speed450 RPM
Rated Speed430 RPM
Rated Torque110.8113 oz-in
Rated Current1.24 A
Stall Torque1631.3694 oz-in
Stall Current19.46 A
Max. Efficiency72%

Motor Characteristics

Terminal Resistance1.85 ohm
Terminal Inductance0.3617 mH
Speed/Torque Gradient 2.1525 RPM/oz-in
Speed Constant280.5 RPM/V

Motor Mechanical Data

Max. Radial Load15.736 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor1178 s
Thermal time constant winding2.16 s

Gearhead Specifications

Gearhead Reduction Ratio21
Nominal Reduction Ratio21

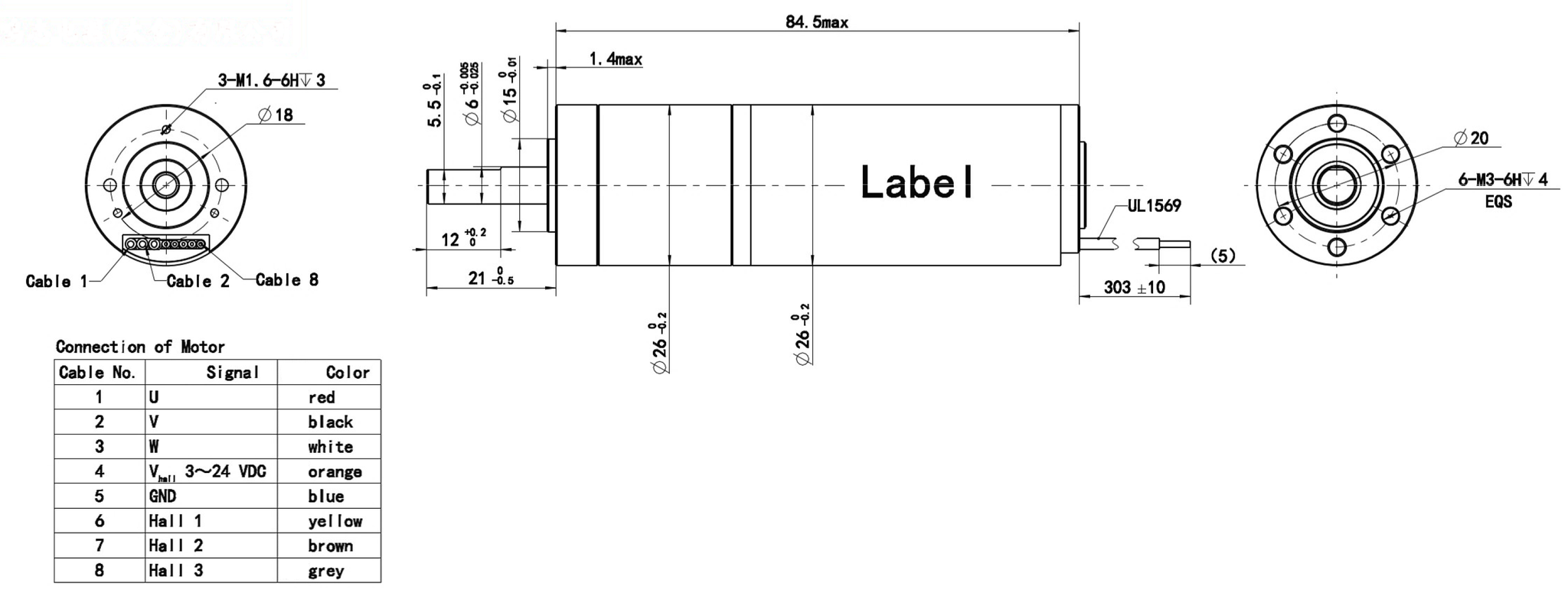

Dimensions

ModelDIM. A (length) in MAX
SLU26CH056-36-G213.330 in

Performance Curve

SLU26CH056-36-G21
@36 VDC, 21:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU26CH056 Series

Downloads

SLU26CH056-36-G21 Configured Datasheet (PDF)
