SLU26CH056 Series
SLU26CH056-24-M24-1024
Slotless BLDC Motor

Featured product media

Quick Facts

SLU26CH056-24-M24-1024 Slotless BLDC Motors

Specifications:
  • 1.020 in Frame Size
  • 1.84 A Rated Current
  • 6.3725 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 2.590 in Length

Specifications

Motor Specifications

Frame Size1.020 in
Motor TypeMotor + Encoder
Weight0.432 lbs

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 10300 RPM
No Load Current315 mA
Nominal Speed9190 RPM
Rated Speed8630 RPM
Rated Torque6.3725 oz-in
Rated Current1.84 A
Stall Torque90.2776 oz-in
Stall Current27.9 A
Max. Efficiency88%

Motor Characteristics

Terminal Resistance0.86 ohm
Terminal Inductance0.1628 mH
Speed/Torque Gradient 2.2658 RPM/oz-in
Speed Constant418 RPM/V
Mechanical Time Constant1.48 ms
Rotor Inertia0.049 oz-in²

Motor Mechanical Data

Max. Radial Load4.608 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor1178 s
Thermal time constant winding2.16 s

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

Dimensions

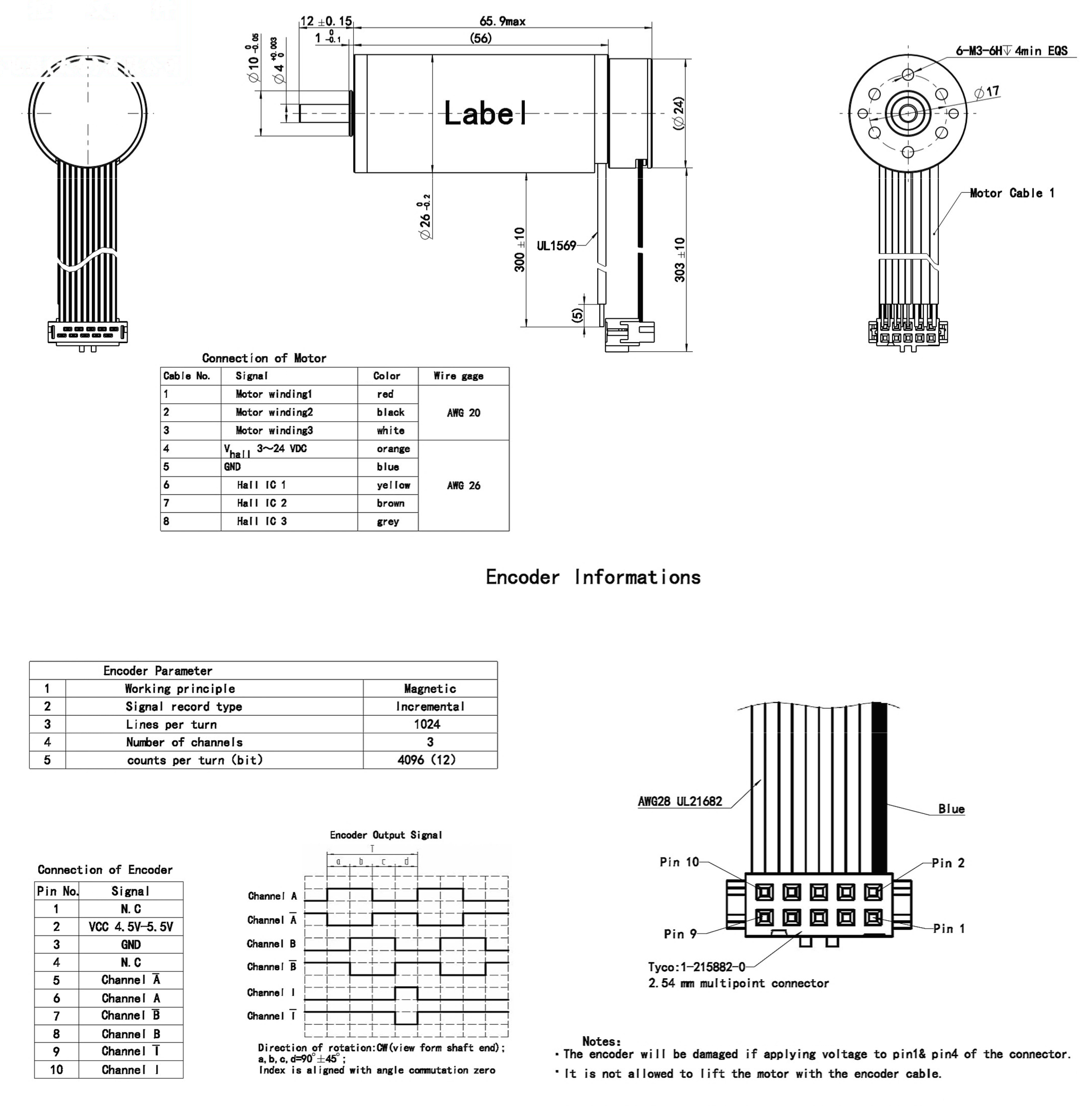

ModelDIM. A (length) in MAX
SLU26CH056-24-M24-10242.590 in

Performance Curve

SLU26CH056-24-M24-1024
@24 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC
