SLU26CH056 SeriesSLU26CH056-24-G62Slotless BLDC Motor
Quick Facts
SLU26CH056-24-G62 Slotless BLDC Motors
SLU26CH056-24-G62 Slotless BLDC Motors
Specifications:
- 1.020 in Frame Size
- 1.82 A Rated Current
- 305.8818 oz-in Rated Torque
- 24 VDC Nominal Voltage
- 3.610 in Length
Specifications
Motor Specifications
| Frame Size | 1.020 in |
| Motor Type | Motor + Gearhead |
| Weight | 0.666 lbs |
Motor Values (At Nominal Speed)
| Nominal Voltage | 24 VDC |
| No Load Speed | 167.5 RPM |
| No Load Current | 315 mA |
| Nominal Speed | 150 RPM |
| Rated Speed | 140 RPM |
| Rated Torque | 305.8818 oz-in |
| Rated Current | 1.82 A |
| Stall Torque | 4333.3251 oz-in |
| Stall Current | 27.91 A |
| Max. Efficiency | 67.8% |
Motor Characteristics
| Terminal Resistance | 0.86 ohm |
| Terminal Inductance | 0.1628 mH |
| Speed/Torque Gradient | 2.2233 RPM/oz-in |
| Speed Constant | 418 RPM/V |
Motor Mechanical Data
| Max. Radial Load | 15.736 lbf |
Motor Thermal Data
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal time constant motor | 1178 s |
| Thermal time constant winding | 2.16 s |
Gearhead Specifications
| Gearhead Reduction Ratio | 62 |
| Nominal Reduction Ratio | 62 |

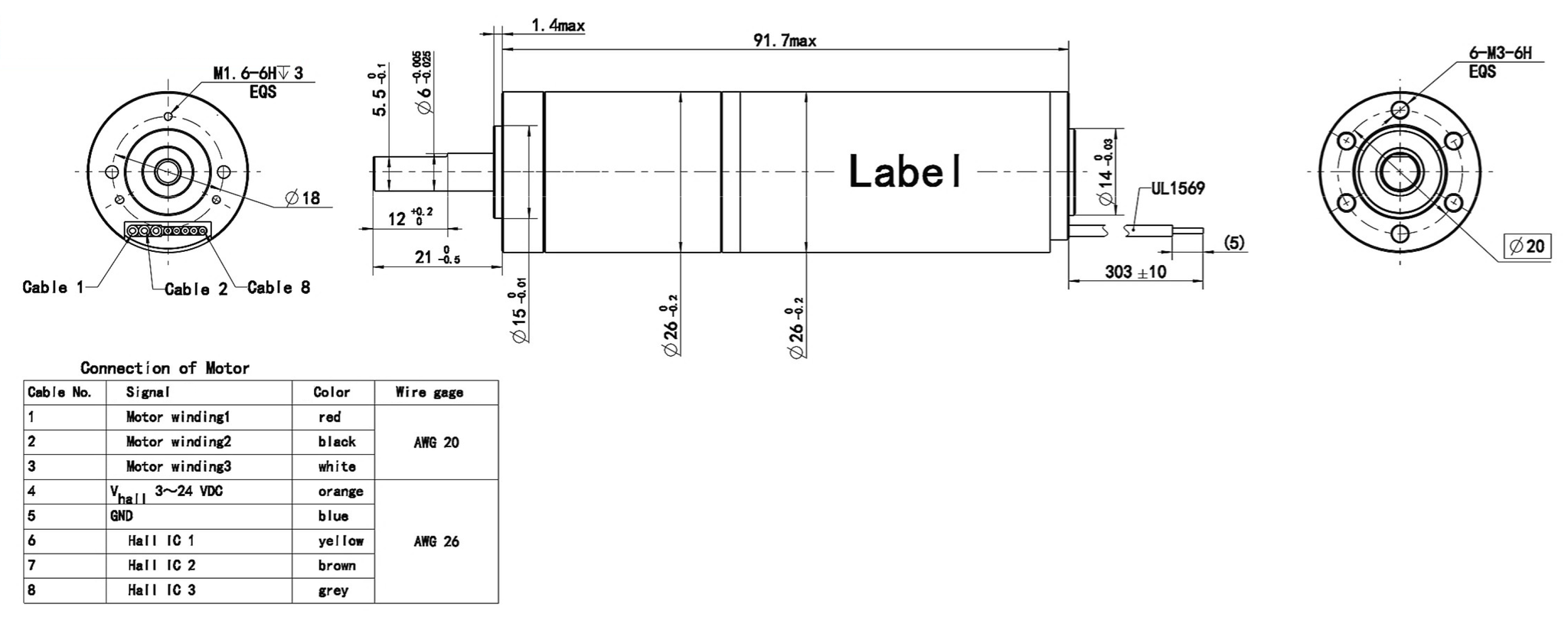

Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| SLU26CH056-24-G62 | 3.610 in |
Performance Curve
SLU26CH056-24-G62
@24 VDC, 62:1 reduction
- Speed
- Current
- Power
- Efficiency
- Operating Area
- Maximum Continuous Torque
Generate new cureve based on different VDC
SLU26CH056 Series
Downloads
SLU26CH056-24-G62 Configured Datasheet (PDF)
