SLU26CH056 SeriesSLU26CH056-24-G4-M24-1024Slotless BLDC Motor
Quick Facts
SLU26CH056-24-G4-M24-1024 Slotless BLDC Motors
SLU26CH056-24-G4-M24-1024 Slotless BLDC Motors
Specifications:
- 1.020 in Frame Size
- 1.82 A Rated Current
- 23.1536 oz-in Rated Torque
- 24 VDC Nominal Voltage
- 3.440 in Length
Specifications
Motor Specifications
| Frame Size | 1.020 in |
| Motor Type | Motor + Encoder + Gearhead |
| Weight | 0.571 lbs |
Motor Values (At Nominal Speed)
| Nominal Voltage | 24 VDC |
| No Load Speed | 2607.6 RPM |
| No Load Current | 315 mA |
| Nominal Speed | 2321 RPM |
| Rated Speed | 2185 RPM |
| Rated Torque | 23.1536 oz-in |
| Rated Current | 1.82 A |
| Stall Torque | 328.5397 oz-in |
| Stall Current | 27.91 A |
| Max. Efficiency | 79.9% |
Motor Characteristics
| Terminal Resistance | 0.86 ohm |
| Terminal Inductance | 0.1628 mH |
| Speed/Torque Gradient | 2.2233 RPM/oz-in |
| Speed Constant | 418 RPM/V |
| Mechanical Time Constant | 1.48 ms |
Motor Mechanical Data
| Max. Radial Load | 15.736 lbf |
Motor Thermal Data
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal time constant motor | 1178 s |
| Thermal time constant winding | 2.16 s |
Gearhead Specifications
| Gearhead Reduction Ratio | 4 |
| Nominal Reduction Ratio | 4 |
Encoder Specifications
| Encoder Type | 1024-line incremental magnetic encoder |
Dimensions

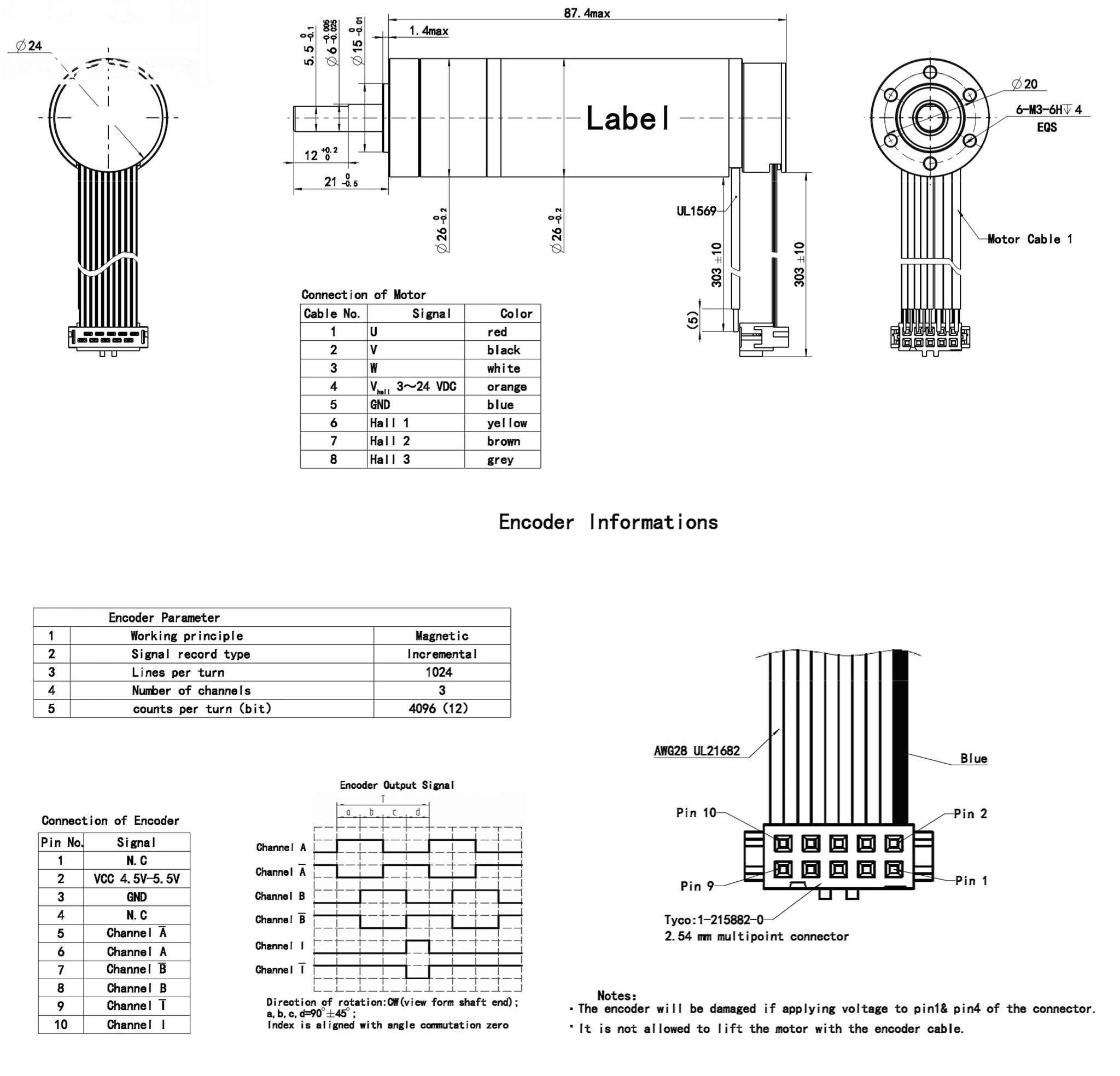

| Model | DIM. A (length) in MAX |
|---|---|
| SLU26CH056-24-G4-M24-1024 | 3.440 in |
Performance Curve
SLU26CH056-24-G4-M24-1024
@24 VDC, 4:1 reduction
- Speed
- Current
- Power
- Efficiency
- Operating Area
- Maximum Continuous Torque
Generate new cureve based on different VDC
