SLU26CH056 Series
SLU26CH056-12-G138-M24-1024
Slotless BLDC Motor

Featured product media

Quick Facts

SLU26CH056-12-G138-M24-1024 Slotless BLDC Motors

Specifications:
  • 1.020 in Frame Size
  • 3.416 A Rated Current
  • 637.2537 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 3.990 in Length

Specifications

Motor Specifications

Frame Size1.020 in
Motor TypeMotor + Encoder + Gearhead
Weight0.666 lbs

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 73.1 RPM
No Load Current329 mA
Nominal Speed66 RPM
Rated Speed56.2 RPM
Rated Torque637.2537 oz-in
Rated Current3.416 A
Stall Torque9132.5534 oz-in
Stall Current52.17 A
Max. Efficiency67.6%

Motor Characteristics

Terminal Resistance0.23 ohm
Terminal Inductance0.0409 mH
Speed/Torque Gradient 2.3649 RPM/oz-in
Speed Constant833.5 RPM/V
Mechanical Time Constant1.58 ms

Motor Mechanical Data

Max. Radial Load15.736 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor1178 s
Thermal time constant winding2.16 s

Gearhead Specifications

Gearhead Reduction Ratio138
Nominal Reduction Ratio138

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

Dimensions

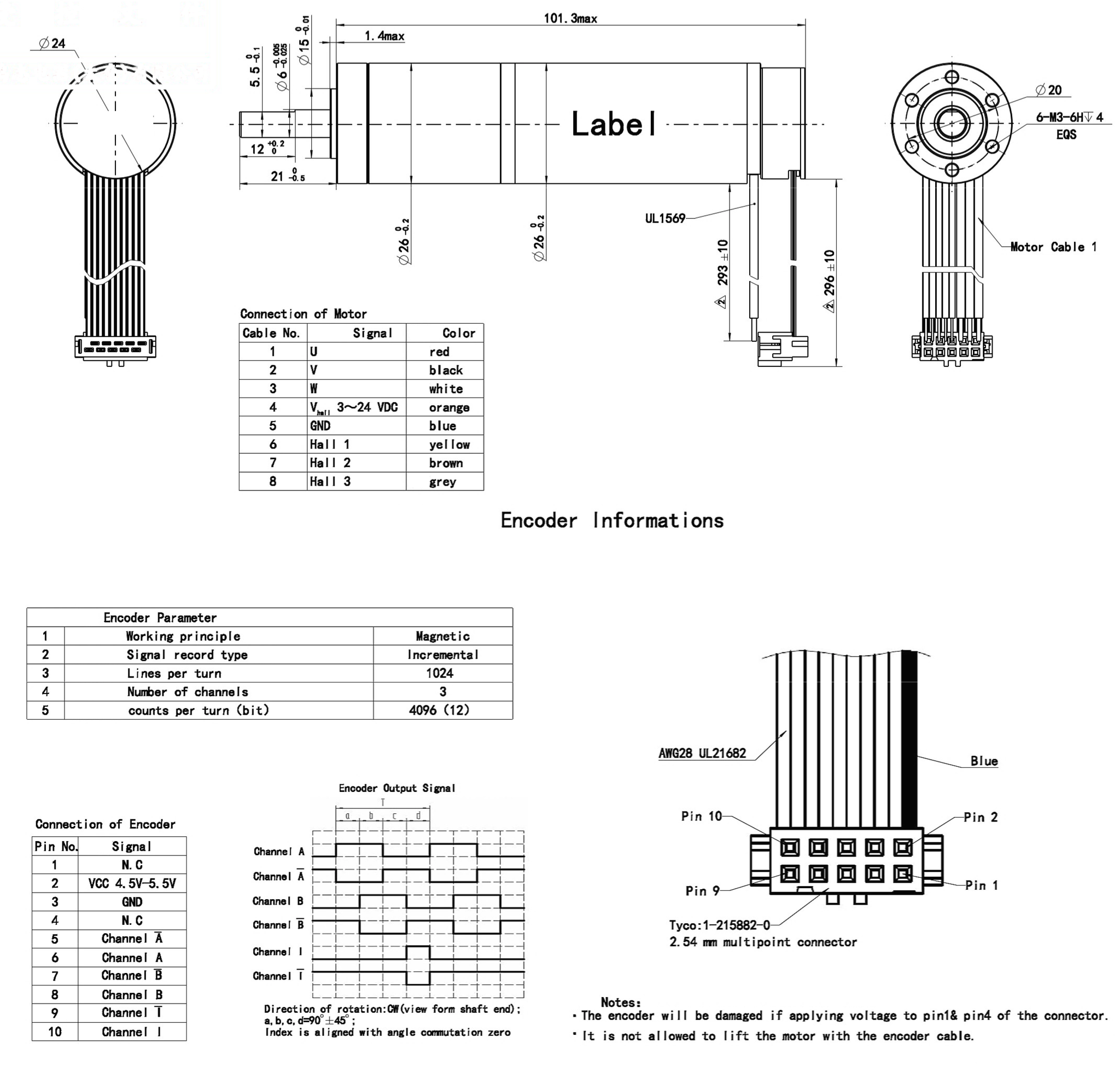

ModelDIM. A (length) in MAX
SLU26CH056-12-G138-M24-10243.990 in

Performance Curve

SLU26CH056-12-G138-M24-1024
@12 VDC, 138:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU26CH056 Series

Downloads

SLU26CH056-12-G138-M24-1024 Configured Datasheet (PDF)
