SLU26CH056 Series
SLU26CH056-12
Slotless BLDC Motor

Featured product media

Quick Facts

SLU26CH056-12 Slotless BLDC Motors

Specifications:
  • 1.020 in Frame Size
  • 3.6 A Rated Current
  • 6.3725 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 2.200 in Length

Specifications

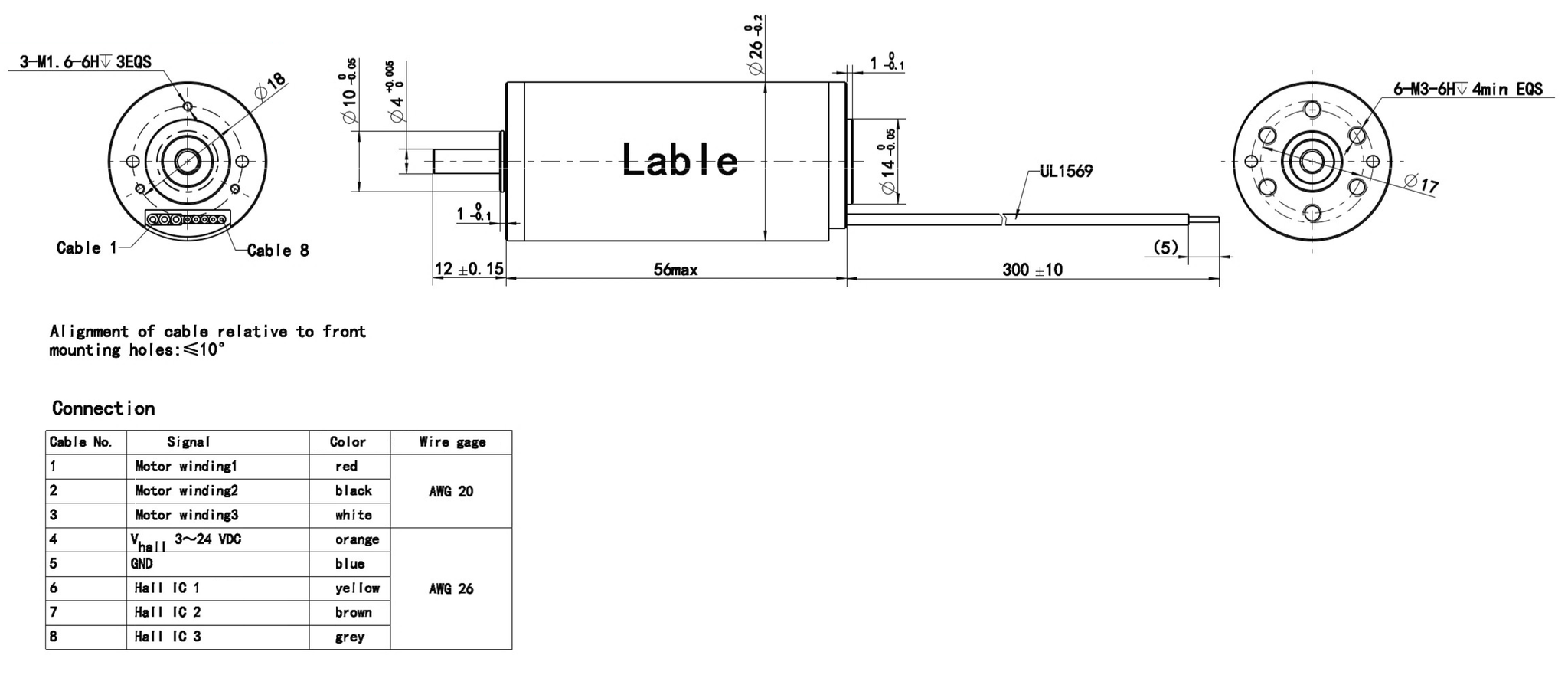

Motor Specifications

Frame Size1.020 in
Motor TypeMotor Only
Weight0.412 lbs

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 10105 RPM
No Load Current329 mA
Nominal Speed9106 RPM
Rated Speed9106 RPM
Rated Torque6.3725 oz-in
Rated Current3.6 A
Stall Torque84.6273 oz-in
Stall Current52.17 A
Max. Efficiency86.3%

Motor Characteristics

Terminal Resistance0.23 ohm
Terminal Inductance0.0409 mH
Speed/Torque Gradient 2.3649 RPM/oz-in
Speed Constant833.5 RPM/V
Mechanical Time Constant1.58 ms
Rotor Inertia0.049 oz-in²

Motor Mechanical Data

Max. Radial Load4.608 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor1178 s
Thermal time constant winding2.16 s

Performance Curve

SLU26CH056-12
@12 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU26CH056 Series

Downloads

SLU26CH056-12 Configured Datasheet (PDF)
