SLU22CH048 Series
SLU22CH048-48-G111-M16-1024
Slotless BLDC Motor

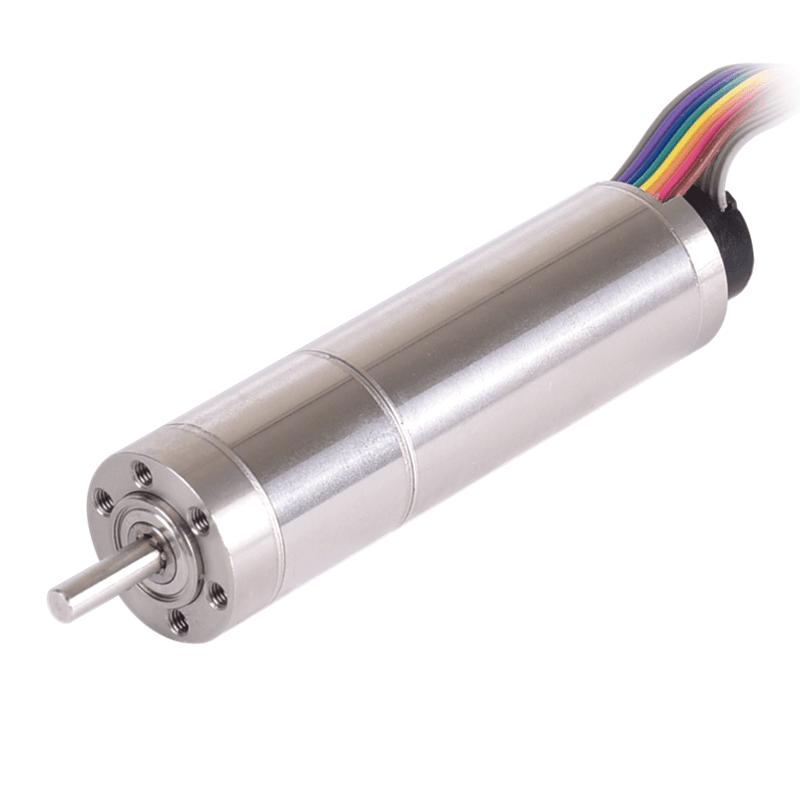

Featured product media

Quick Facts

SLU22CH048-48-G111-M16-1024 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 0.79 A Rated Current
  • 226.5791 oz-in Rated Torque
  • 30 VDC Nominal Voltage
  • 3.650 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor + Encoder + Gearhead
Weight0.437 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage30 VDC
No Load Speed 110 RPM
No Load Current220 mA
Nominal Speed160 RPM
Rated Speed91.6 RPM
Rated Torque226.5791 oz-in
Rated Current0.79 A
Stall Torque2449.8864 oz-in
Stall Current8.93 A
Max. Efficiency61%

Motor Characteristics

Terminal Resistance3.36 ohm
Terminal Inductance0.391 mH
Speed/Torque Gradient 8.2135 RPM/oz-in
Speed Constant400 RPM/V
Mechanical Time Constant2.28 ms

Motor Mechanical Data

Max. Radial Load13.488 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor510 s
Thermal time constant winding1.59 s

Gearhead Specifications

Gearhead Reduction Ratio111
Nominal Reduction Ratio111

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

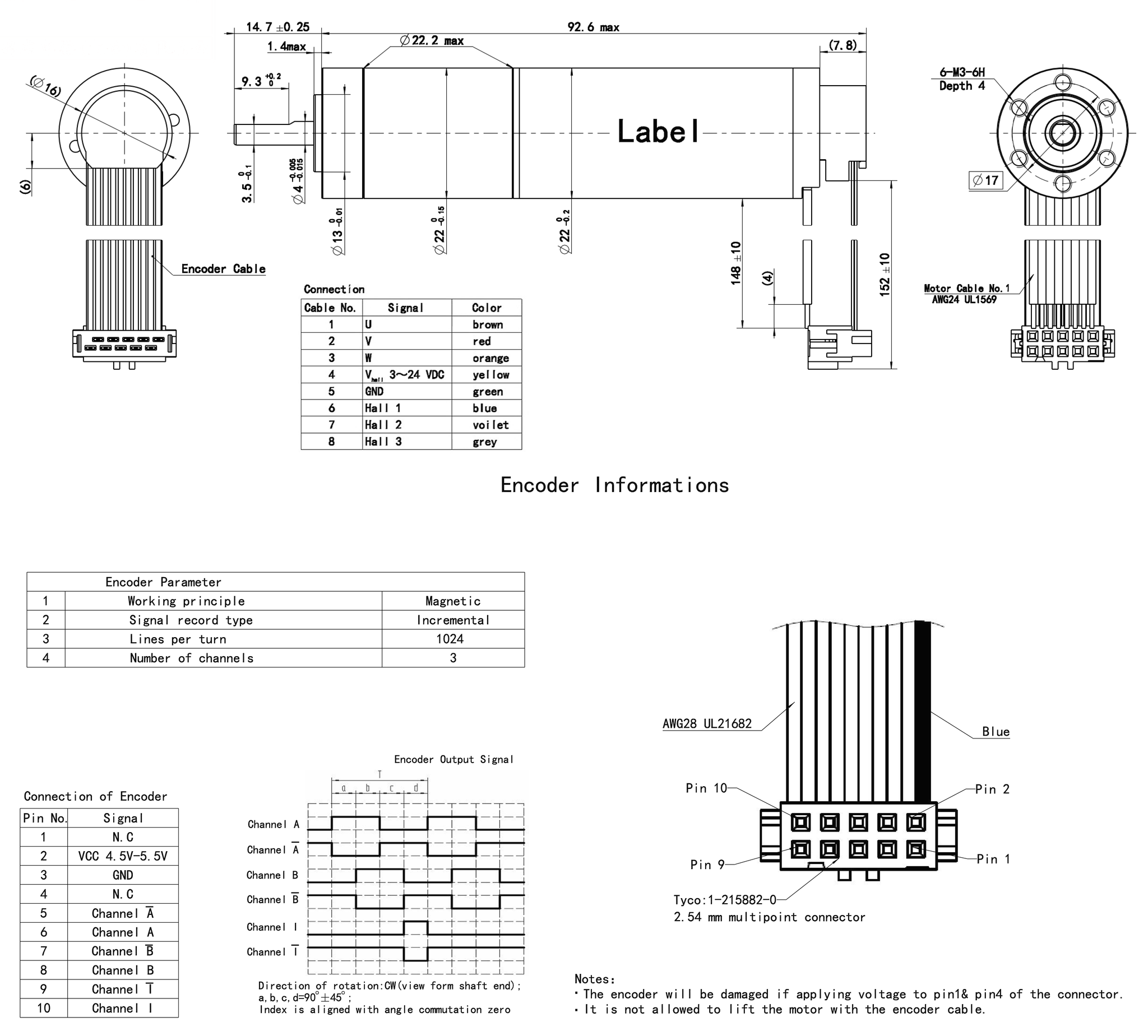

Dimensions

ModelDIM. A (length) in MAX
SLU22CH048-48-G111-M16-10243.650 in

Performance Curve

SLU22CH048-48-G111-M16-1024
@30 VDC, 111:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU22CH048 Series

Downloads

SLU22CH048-48-G111-M16-1024 Configured Datasheet (PDF)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
