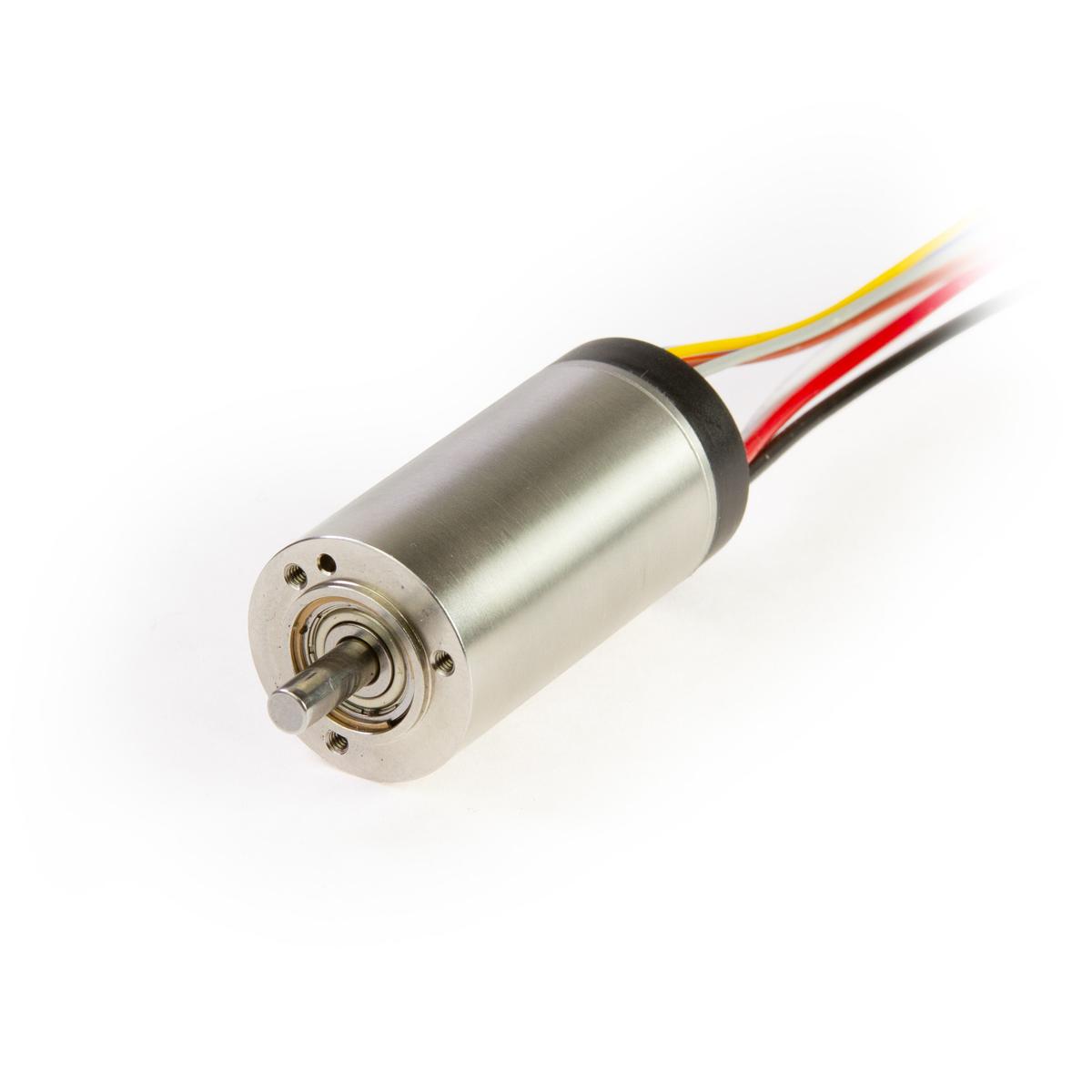

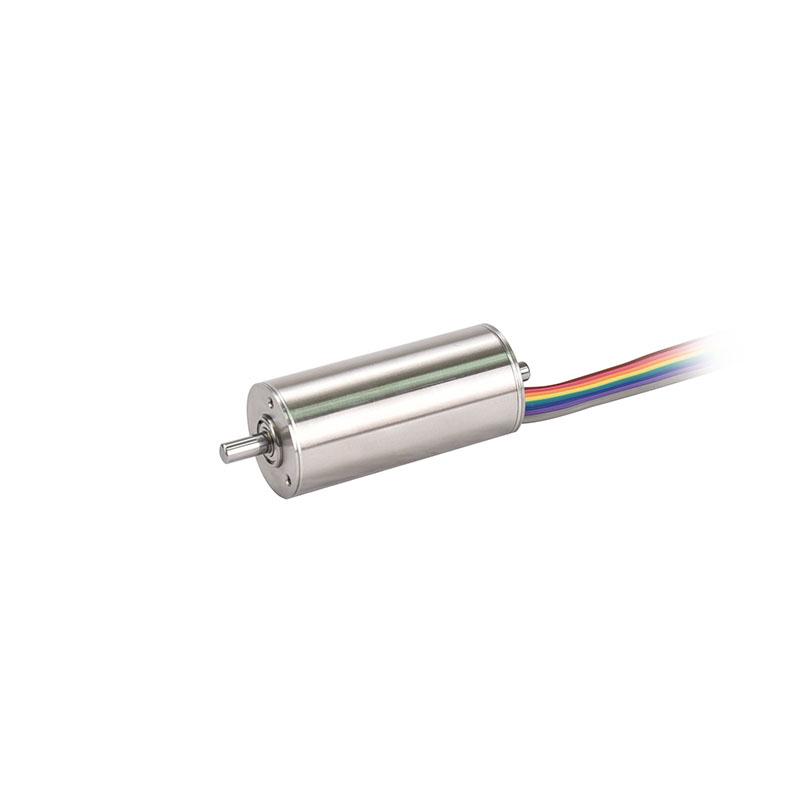

SLU22CH048 SeriesSLU22CH048-48Slotless BLDC Motor
Specifications:
- 0.870 in Frame Size
- 0.86 A Rated Current
- 2.9257 oz-in Rated Torque
- 48 VDC Nominal Voltage
- 1.890 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Unit Price:
$200.00
Inventory:
0 Available
Part Number:
SLU22CH048-48
Looking For Higher Volume?
Specifications
Motor Specifications
| Frame Size | 0.870 in |
| Motor Type | Motor Only |
| Weight | 0 lbs |
| Number of pole | 2 |
| Number of Phases | 3 |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 48 VDC |
| No Load Speed | 19860 RPM |
| No Load Current | 254 mA |
| Nominal Speed | 17720 RPM |
| Nominal Torque (Max Cont. Torque) | 4.2342 oz-in |
| Nominal Current (Max Cont. Current) | 1.24 A |
| Rated Speed | 17720 RPM |
| Rated Torque | 2.9257 oz-in |
| Rated Current | 0.86 A |
| Stall Torque | 48.7145 oz-in |
| Stall Current | 14.3 A |
| Max. Efficiency | 84.5% |
Motor Characteristics
| Terminal Resistance | 3.36 ohm |
| Terminal Inductance | 0.3913 mH |
| Speed/Torque Gradient | 8.1781 RPM/oz-in |
| Speed Constant | 397 RPM/V |
| Mechanical Time Constant | 2.24 ms |
| Rotor Inertia | 0.021 oz-in² |
Motor Mechanical Data
| Axial play | 0.006 in |
| Radial play | Preloaded |
| Max. Radial Load | 3.372 lbf |
| Max Force For Press Fit | 13.488 lbf |
| Max Speed (Mechanical) | 30000 RPM |
Motor Thermal Data
| Ambient Temperature | -40 °F to 212.00 °F |
| Insulation Class | F |
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal resistance (Housing-Ambient) | 48.20 °F/W |
| Thermal resistance (Winding-Housing) | 35.15 °F/W |
| Thermal time constant motor | 510 s |
| Thermal time constant winding | 2.51 s |

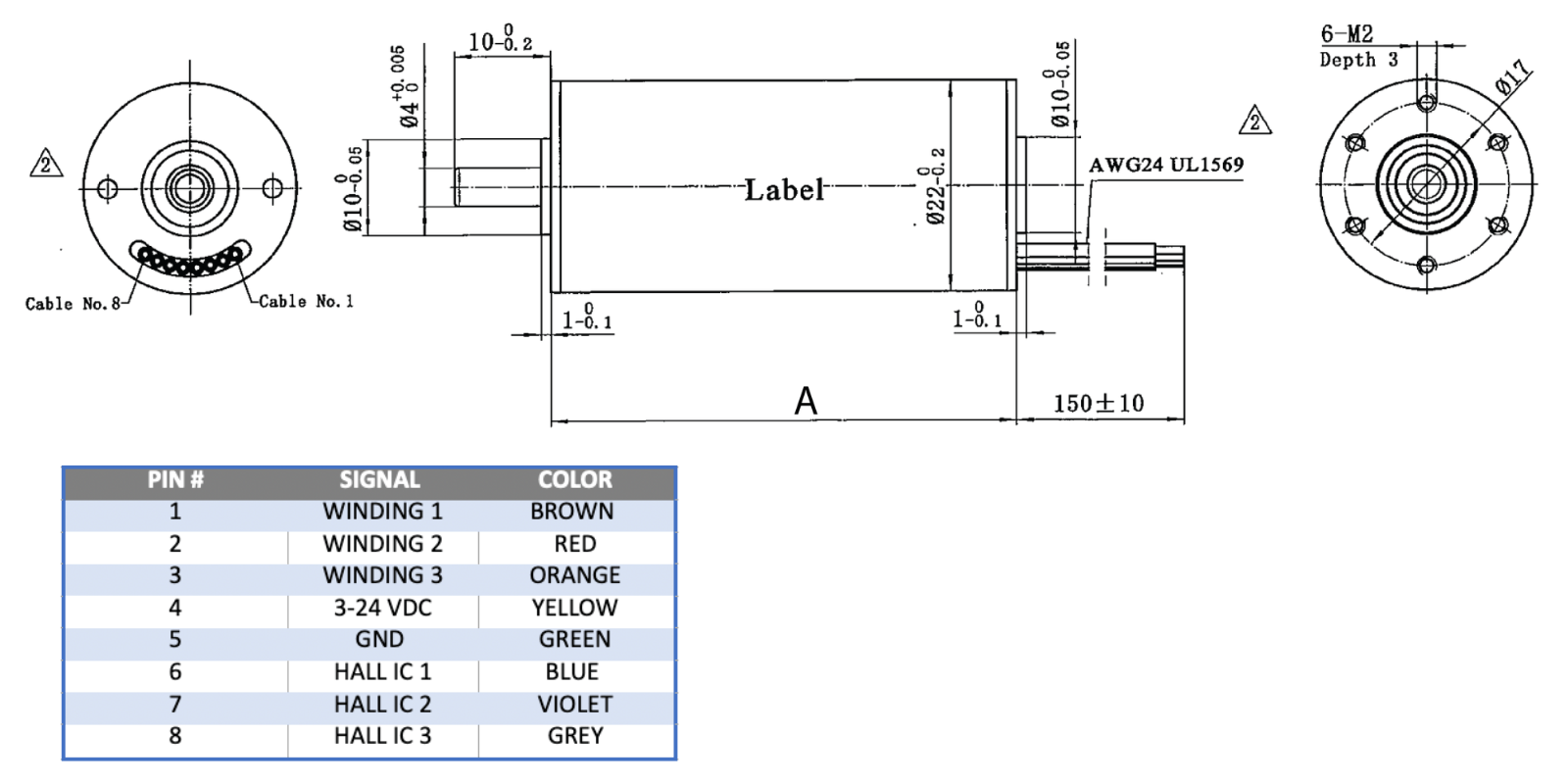

Dimensions
| Model | DIM. A (length) in |
|---|---|
| SLU22CH048-48 | 1.890 in |
Performance Curve
SLU22CH048 Series
