SLU22CH048 Series
SLU22CH048-36
Slotless BLDC Motor

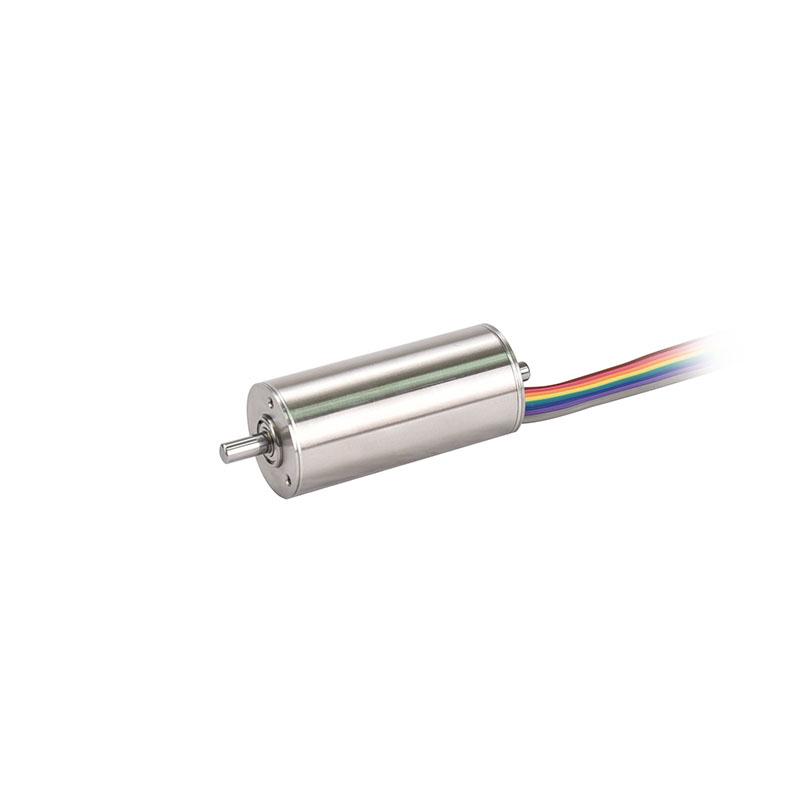

Featured product media

Quick Facts

SLU22CH048-36 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 1.12 A Rated Current
  • 2.9739 oz-in Rated Torque
  • 36 VDC Nominal Voltage
  • 1.910 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor Only
Weight0.243 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage36 VDC
No Load Speed 19400 RPM
No Load Current295 mA
Nominal Speed17630 RPM
Nominal Torque (Max Cont. Torque)2.9739 oz-in
Rated Speed17000 RPM
Rated Torque2.9739 oz-in
Rated Current1.12 A
Stall Torque46.7603 oz-in
Stall Current17.91 A
Max. Efficiency86%

Motor Characteristics

Terminal Resistance2.01 ohm
Terminal Inductance0.23 mH
Speed/Torque Gradient 8.0719 RPM/oz-in
Speed Constant518 RPM/V
Mechanical Time Constant2.3 ms
Rotor Inertia0.02 oz-in²

Motor Mechanical Data

Max. Radial Load3.372 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Thermal time constant motor510 s
Thermal time constant winding2.51 s

Performance Curve

SLU22CH048-36
@36 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU22CH048 Series

Downloads

SLU22CH048-36 Configured Datasheet (PDF)
SLU22CH048-36 (3D model) (STP)
