SLU22CH048 SeriesSLU22CH048-24-P22-S17BSlotless BLDC Motor
Quick Facts

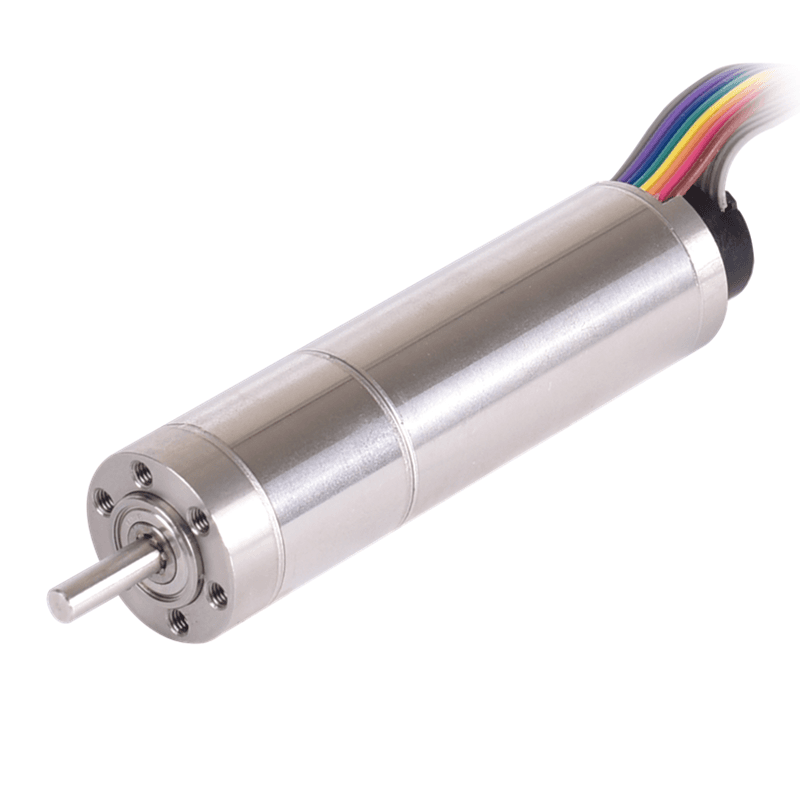

SLU22CH048-24-P22-S17B Slotless BLDC Motors
SLU22CH048-24-P22-S17B Slotless BLDC Motors
Specifications:
- 0.870 in Frame Size
- 1.67 A Rated Current
- 3.0588 oz-in Rated Torque
- 24 VDC Nominal Voltage
- 2.990 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Specifications
Motor Specifications
| Frame Size | 0.870 in |
| Motor Type | Motor Only |
| Weight | 0.323 lbs |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 24 VDC |
| No Load Speed | 19200 RPM |
| No Load Current | 326 mA |
| Nominal Speed | 17320 RPM |
| Rated Speed | 15800 RPM |
| Rated Torque | 3.0588 oz-in |
| Rated Current | 1.67 A |
| Stall Torque | 44.8343 oz-in |
| Stall Current | 25.53 A |
| Max. Efficiency | 85.9% |
Motor Characteristics
| Terminal Resistance | 0.94 ohm |
| Terminal Inductance | 0.104 mH |
| Speed/Torque Gradient | 8.2135 RPM/oz-in |
| Speed Constant | 770 RPM/V |
| Mechanical Time Constant | 2.23 ms |
| Rotor Inertia | 0.02 oz-in² |
Motor Mechanical Data
| Max. Radial Load | 3.372 lbf |
Motor Thermal Data
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal time constant motor | 510 s |
| Thermal time constant winding | 5.26 s |
Encoder Specifications
| Encoder Type | 17-bit absolute magnetic encoder |

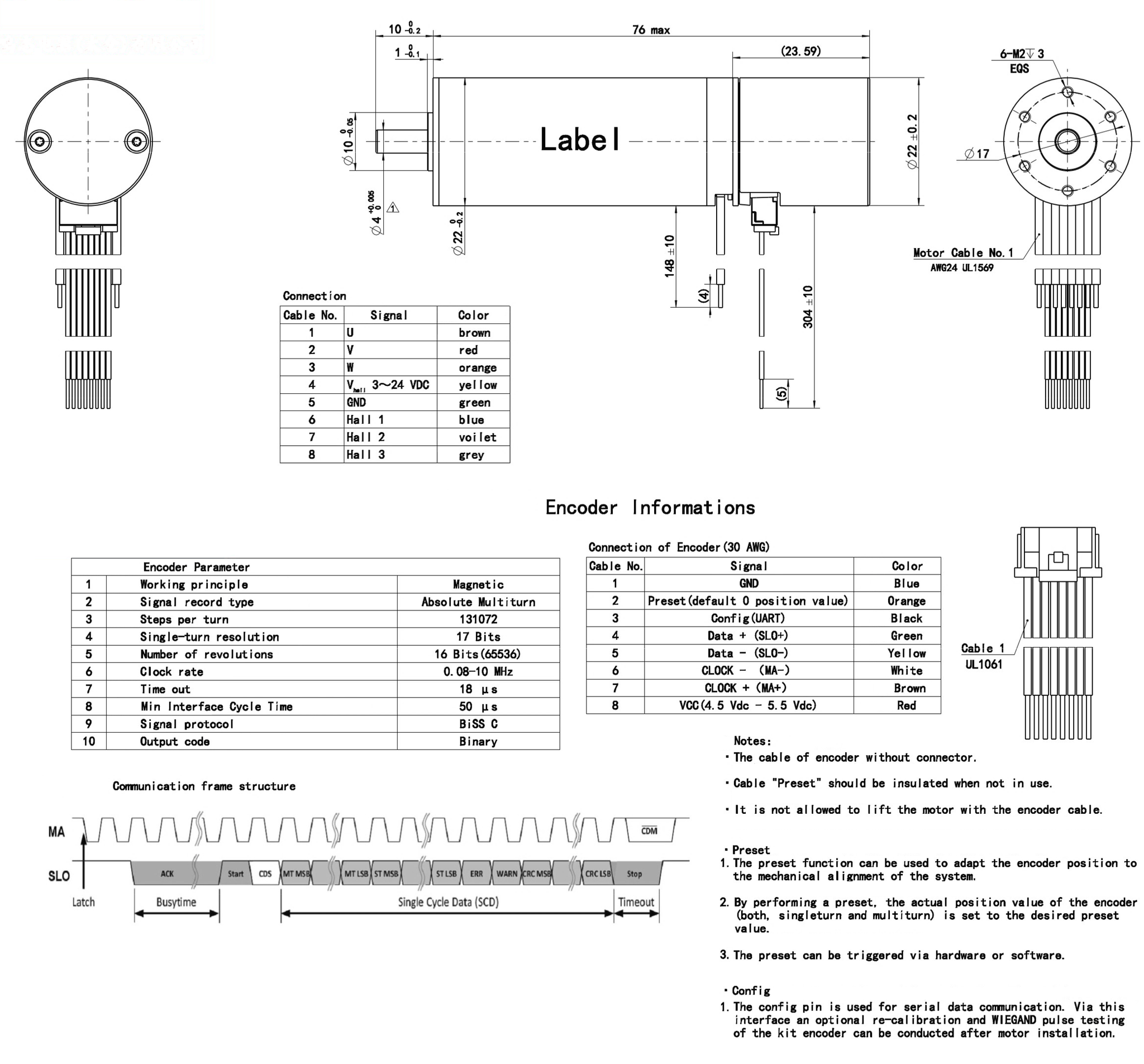

Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| SLU22CH048-24-P22-S17B | 2.990 in |
Performance Curve
SLU22CH048-24-P22-S17B
@24 VDC
- Speed
- Current
- Power
- Efficiency
- Operating Area
- Maximum Continuous Torque
Generate new cureve based on different VDC
