SLU22CH048 Series
SLU22CH048-24-M16-1024
Slotless BLDC Motor

Name: SLU22CH048-24-M16-1024
Brand: Lin Engineering
SKU: SLU22CH048-24-M16-1024
Price: 262 USD
Availability: PreOrder

Quick Facts

SLU22CH048-24-M16-1024 Slotless BLDC Motors

Specifications:

0.870 in Frame Size
1.67 A Rated Current
3.0588 oz-in Rated Torque
24 VDC Nominal Voltage
2.360 in Length

Features and Benefits:

Extremely quick response and high acceleration
Quiet Operation
High power density

Specifications

Motor Specifications

Frame Size	0.870 in
Motor Type	Motor + Encoder
Weight	0.273 lbs
Number of pole	2
Number of Phases	3
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	24 VDC
No Load Speed	19200 RPM
No Load Current	326 mA
Nominal Speed	17310 RPM
Nominal Torque (Max Cont. Torque)	4.6024 oz-in
Nominal Current (Max Cont. Current)	2.94 A
Rated Speed	15835 RPM
Rated Torque	3.0588 oz-in
Rated Current	1.67 A
Stall Torque	44.8343 oz-in
Stall Current	25.53 A
Max. Efficiency	86%

Motor Characteristics

Terminal Resistance	0.94 ohm
Terminal Inductance	0.104 mH
Speed/Torque Gradient	8.2135 RPM/oz-in
Speed Constant	770 RPM/V
Mechanical Time Constant	2.36 ms
Rotor Inertia	0.02 oz-in²

Motor Mechanical Data

Radial play	Preloaded
Max. Radial Load	3.372 lbf
Distance From Flange For Radial Load	5 in
Max Force For Press Fit	11.914 lbf
Max Speed (Mechanical)	40000 RPM

Motor Thermal Data

Ambient Temperature	-40 °F to 212.00 °F
Insulation Class	F
Max winding temperature	311.00 °F
Max winding temperature	311.00 °F
Thermal resistance (Housing-Ambient)	48.20 °F/W
Thermal resistance (Winding-Housing)	35.15 °F/W
Thermal time constant motor	510 s
Thermal time constant winding	5.26 s

Encoder Specifications

Counts Per Turn	1024
Number Of Channels	3

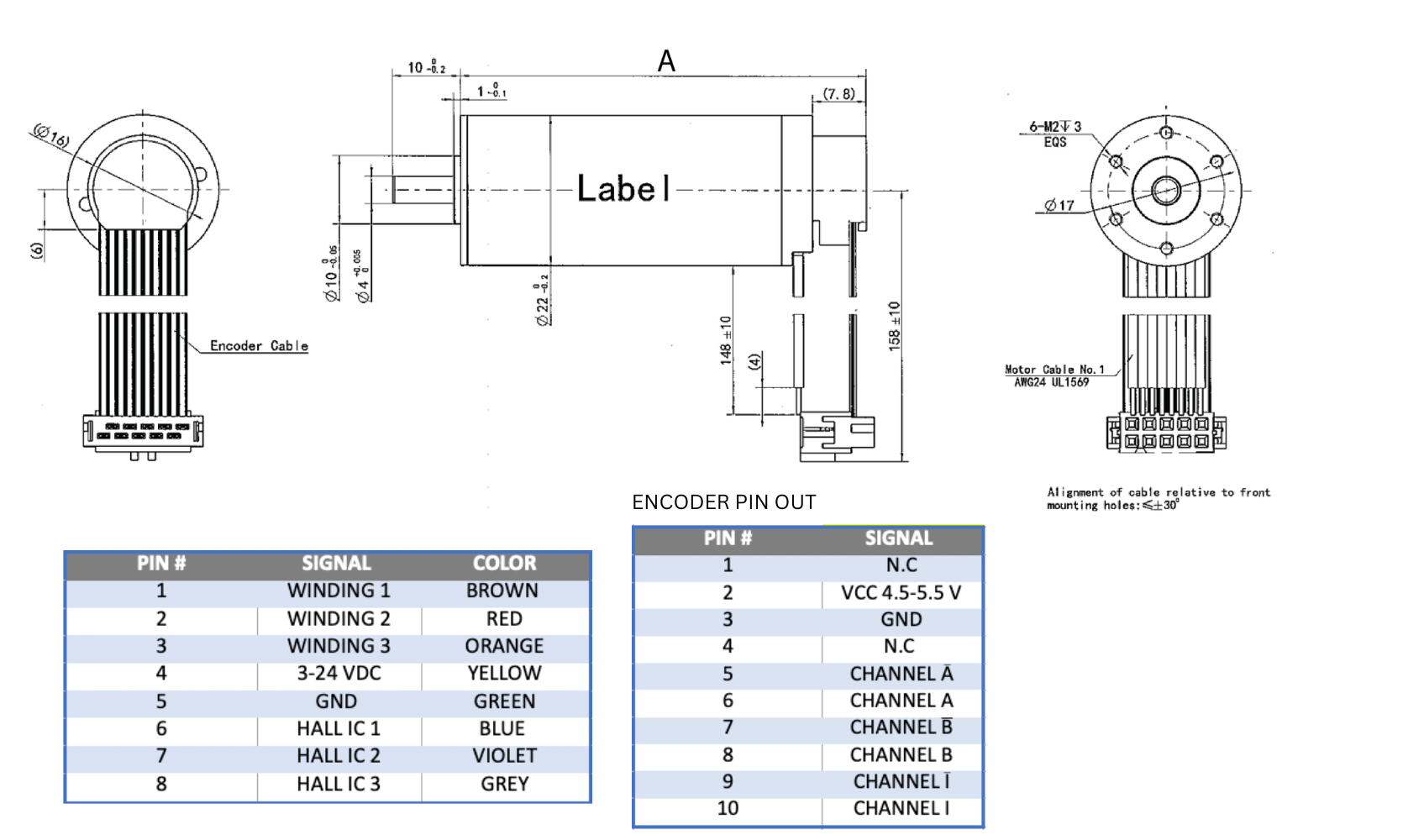

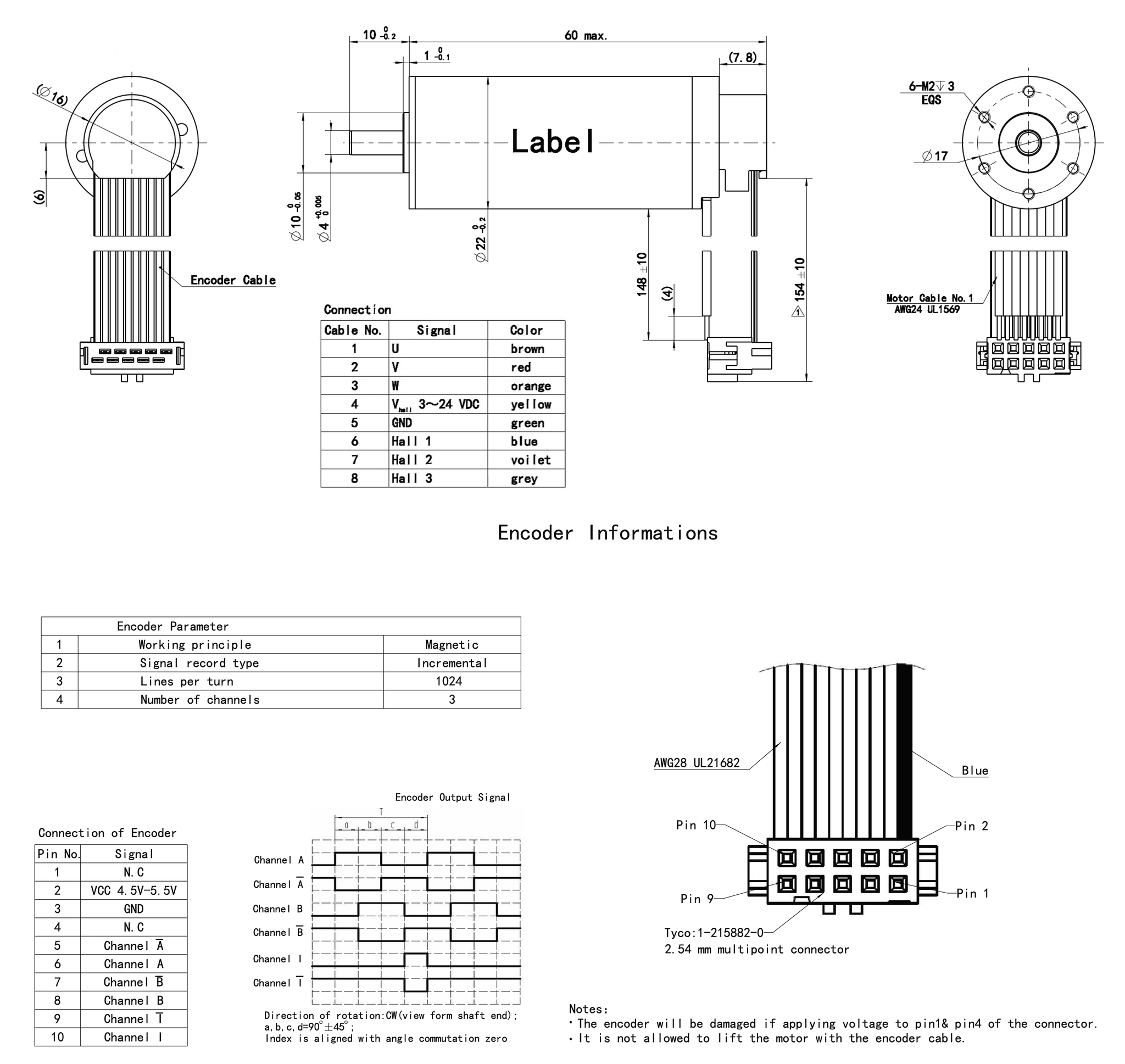

Dimensions

Model	DIM. A (length) in MAX
SLU22CH048-24-M16-1024	2.360 in

Performance Curve

SLU22CH048 Series

Downloads

SLU22CH048-24-M16-1024 Configured Datasheet (PDF)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
