SLU22CH048 SeriesSLU22CH048-24-G546Slotless BLDC Motor
Quick Facts

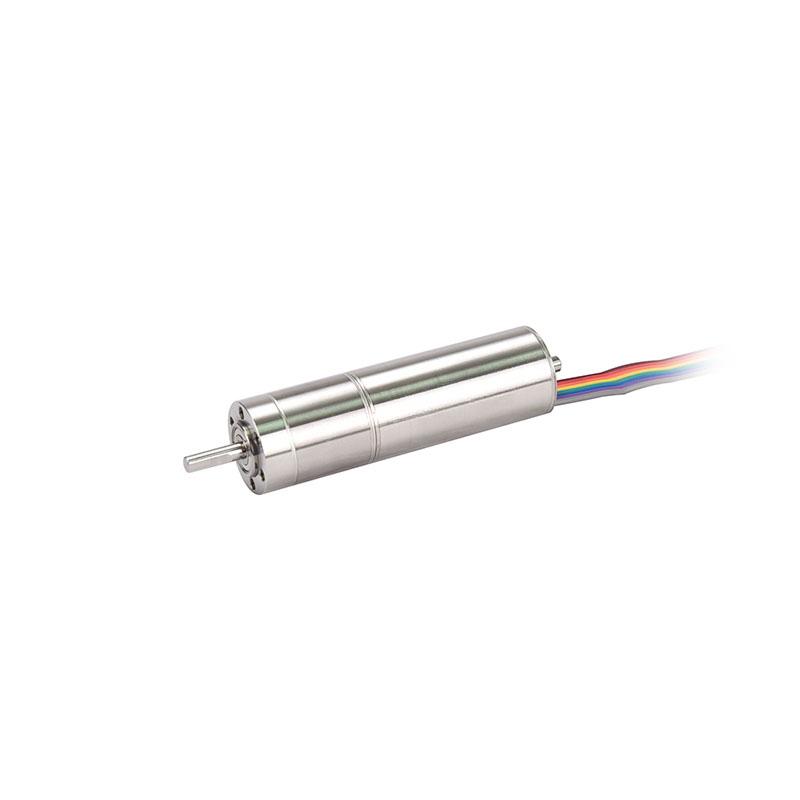

SLU22CH048-24-G546 Slotless BLDC Motors
SLU22CH048-24-G546 Slotless BLDC Motors
Specifications:
- 0.870 in Frame Size
- 0.56 A Rated Current
- 283.2239 oz-in Rated Torque
- 15 VDC Nominal Voltage
- 3.430 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Specifications
Motor Specifications
| Frame Size | 0.870 in |
| Motor Type | Motor + Gearhead |
| Weight | 0.426 lbs |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 15 VDC |
| No Load Speed | 22 RPM |
| No Load Current | 285 mA |
| Nominal Speed | 32 RPM |
| Rated Speed | 20.7 RPM |
| Rated Torque | 283.2239 oz-in |
| Rated Current | 0.56 A |
| Stall Torque | 10705.8619 oz-in |
| Stall Current | 15.96 A |
| Max. Efficiency | 57.7% |
Motor Characteristics
| Terminal Resistance | 0.94 ohm |
| Terminal Inductance | 0.104 mH |
| Speed/Torque Gradient | 8.2135 RPM/oz-in |
| Speed Constant | 770 RPM/V |
| Mechanical Time Constant | 2.23 ms |
Motor Mechanical Data
| Max. Radial Load | 13.488 lbf |
Motor Thermal Data
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal time constant motor | 510 s |
| Thermal time constant winding | 5.26 s |
Gearhead Specifications
| Gearhead Reduction Ratio | 546 |
| Nominal Reduction Ratio | 546 |

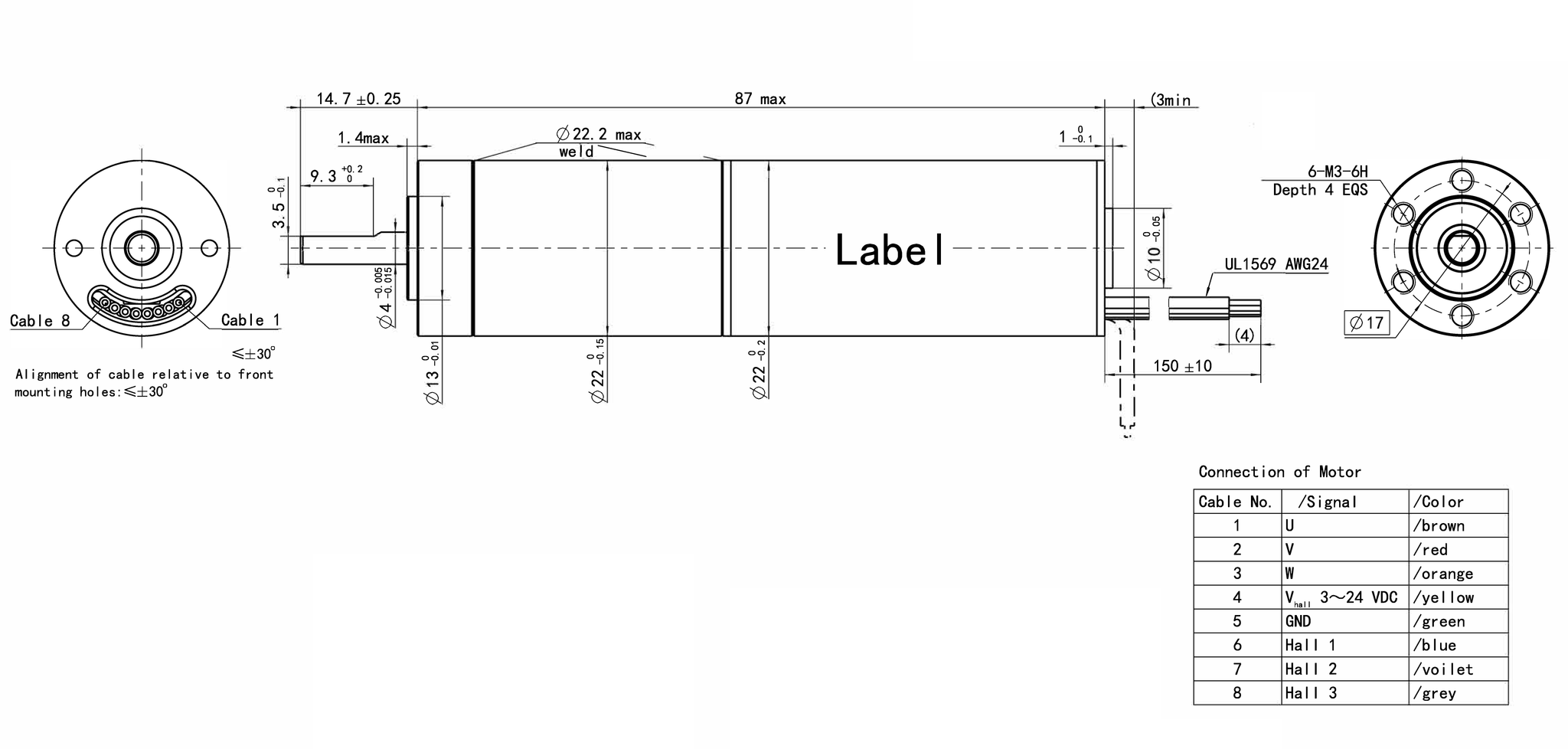

Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| SLU22CH048-24-G546 | 3.430 in |
Performance Curve
SLU22CH048-24-G546
@15 VDC, 546:1 reduction
- Speed
- Current
- Power
- Efficiency
- Operating Area
- Maximum Continuous Torque
Generate new cureve based on different VDC
