SLU22CH048 Series

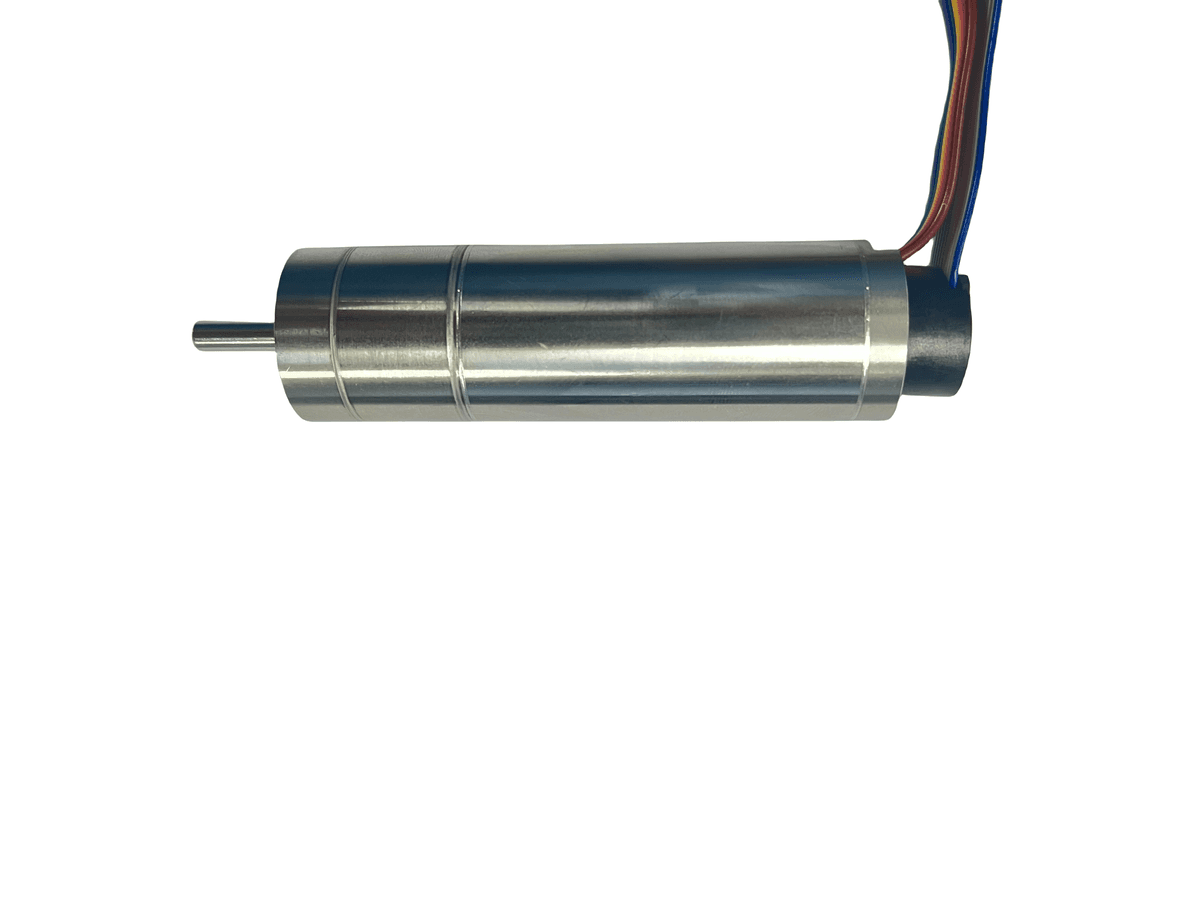

SLU22CH048-24-G4-M16-1024
Slotless BLDC Motor

Name: SLU22CH048-24-G4-M16-1024
Brand: Lin Engineering
SKU: SLU22CH048-24-G4-M16-1024
Price: 361 USD
Availability: PreOrder

Quick Facts

SLU22CH048-24-G4-M16-1024 Slotless BLDC Motors

Specifications:

0.870 in Frame Size
1.67 A Rated Current
11.1873 oz-in Rated Torque
24 VDC Nominal Voltage
3.190 in Length

Features and Benefits:

Extremely quick response and high acceleration
Quiet Operation
High power density

Specifications

Motor Specifications

Frame Size	0.870 in
Motor Type	Motor + Encoder + Gearhead
Weight	0.38 lbs
Number of pole	2
Number of Phases	3
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	24 VDC
No Load Speed	3040 RPM
No Load Current	285 mA
Nominal Speed	2706 RPM
Nominal Torque (Max Cont. Torque)	17.0642 oz-in
Nominal Current (Max Cont. Current)	2.94 A
Rated Speed	2271 RPM
Rated Torque	11.1873 oz-in
Rated Current	1.67 A
Stall Torque	101.9606 oz-in
Stall Current	15.96 A
Max. Efficiency	76.4%

Motor Characteristics

Terminal Resistance	0.94 ohm
Terminal Inductance	0.104 mH
Speed/Torque Gradient	8.2135 RPM/oz-in
Speed Constant	770 RPM/V
Mechanical Time Constant	2.36 ms
Rotor Inertia	0.02 oz-in²

Motor Mechanical Data

Radial play	0.004
Max. Radial Load	13.488 lbf
Distance From Flange For Radial Load	10 in
Max Force For Press Fit	22.48 lbf
Max Speed (Mechanical)	30000 RPM

Motor Thermal Data

Ambient Temperature	-40 °F to 212.00 °F
Insulation Class	F
Max winding temperature	311.00 °F
Max winding temperature	311.00 °F
Thermal resistance (Housing-Ambient)	48.20 °F/W
Thermal resistance (Winding-Housing)	35.15 °F/W
Thermal time constant motor	510 s
Thermal time constant winding	1.59 s

Gearhead Specifications

Type Of Gearhead	Planetary Gearhead
Gearhead Reduction Ratio	4
Nominal Reduction Ratio	3.95
Absolute Reduction Ratio	75/19
Number Of Stages	1

Encoder Specifications

Counts Per Turn	1024
Number Of Channels	3

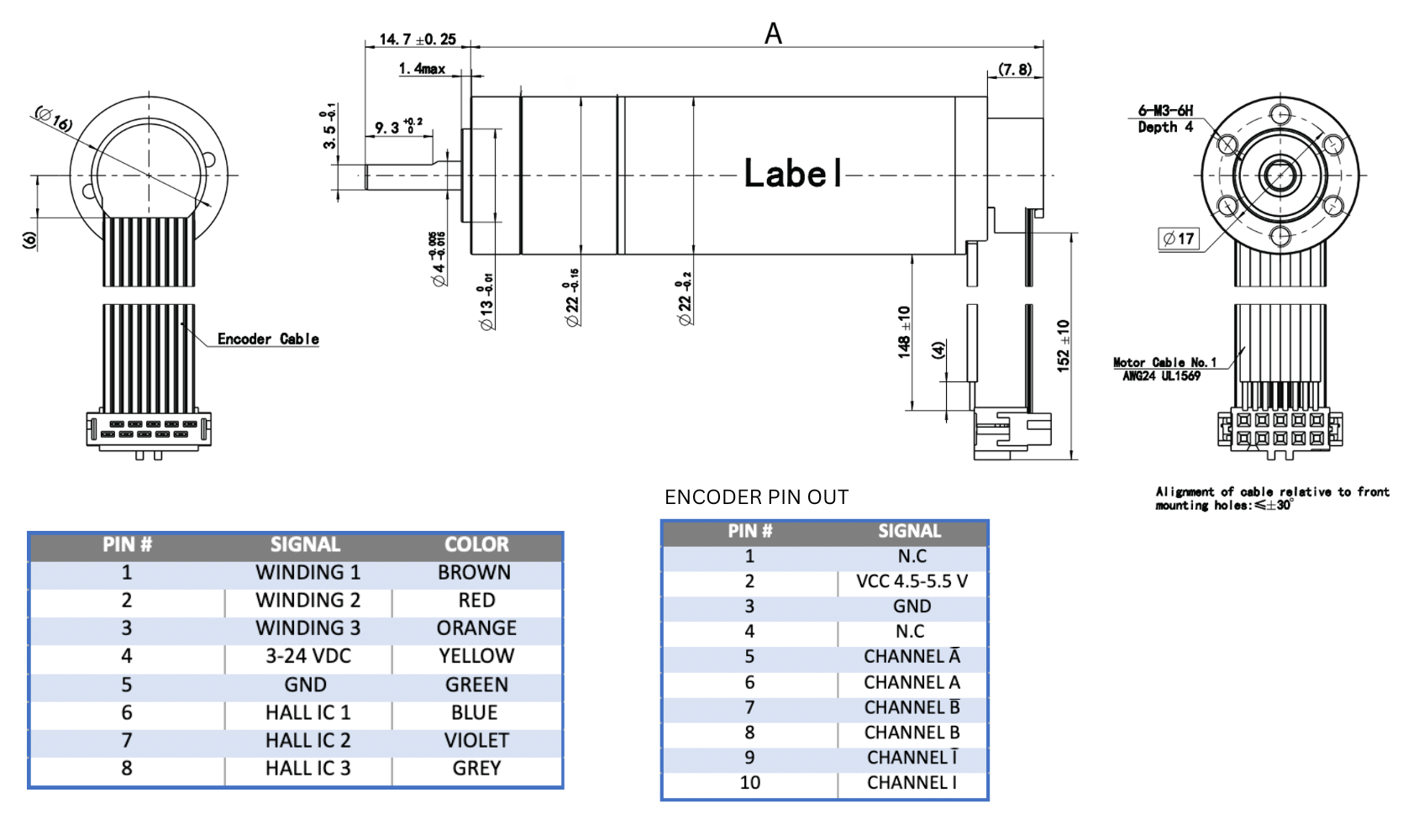

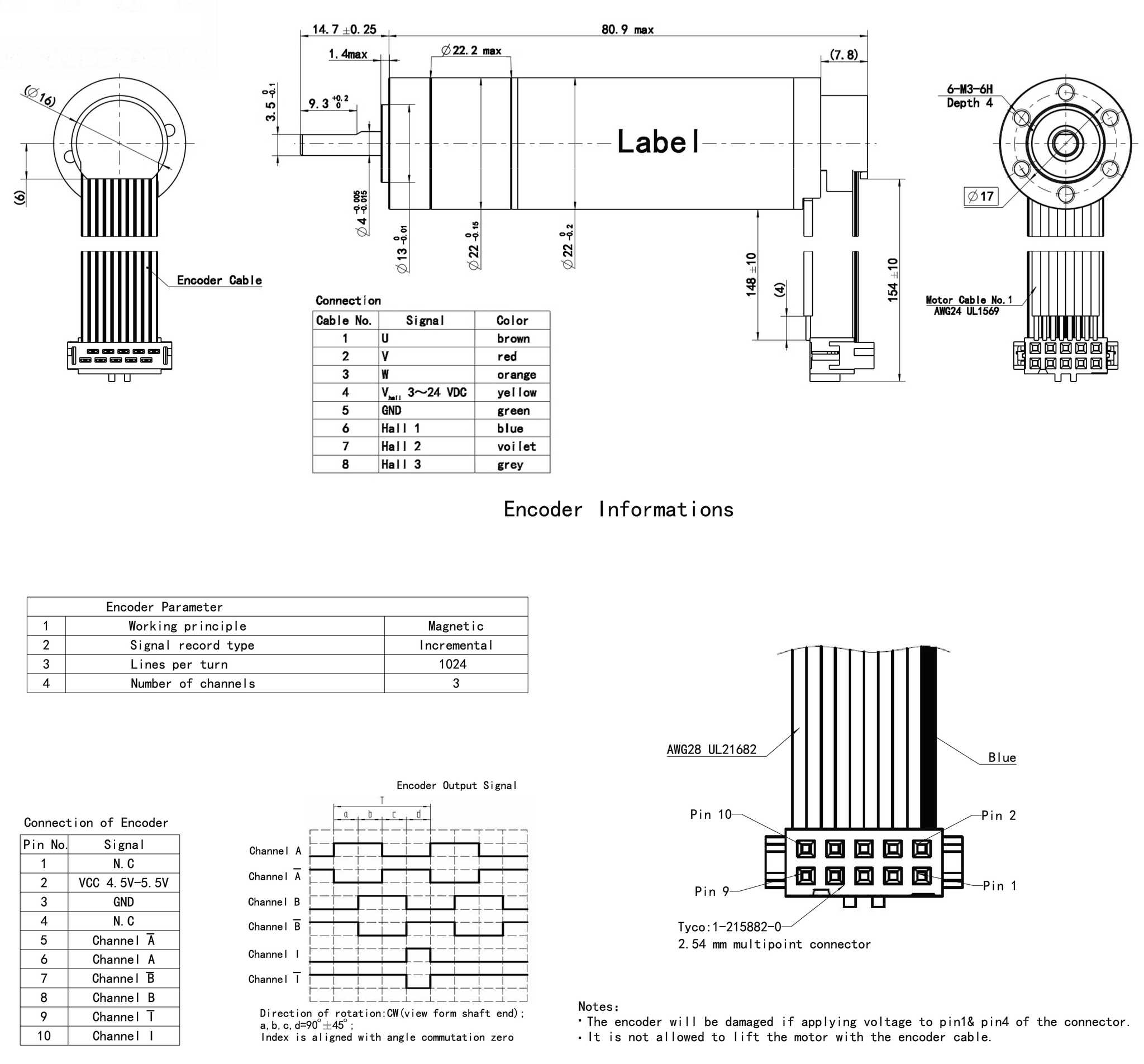

Dimensions

Model	DIM. A (length) in MAX
SLU22CH048-24-G4-M16-1024	3.190 in

Performance Curve

SLU22CH048 Series

Downloads

SLU22CH048-24-G4-M16-1024 Configured Datasheet (PDF)
