SLU22CH048 Series

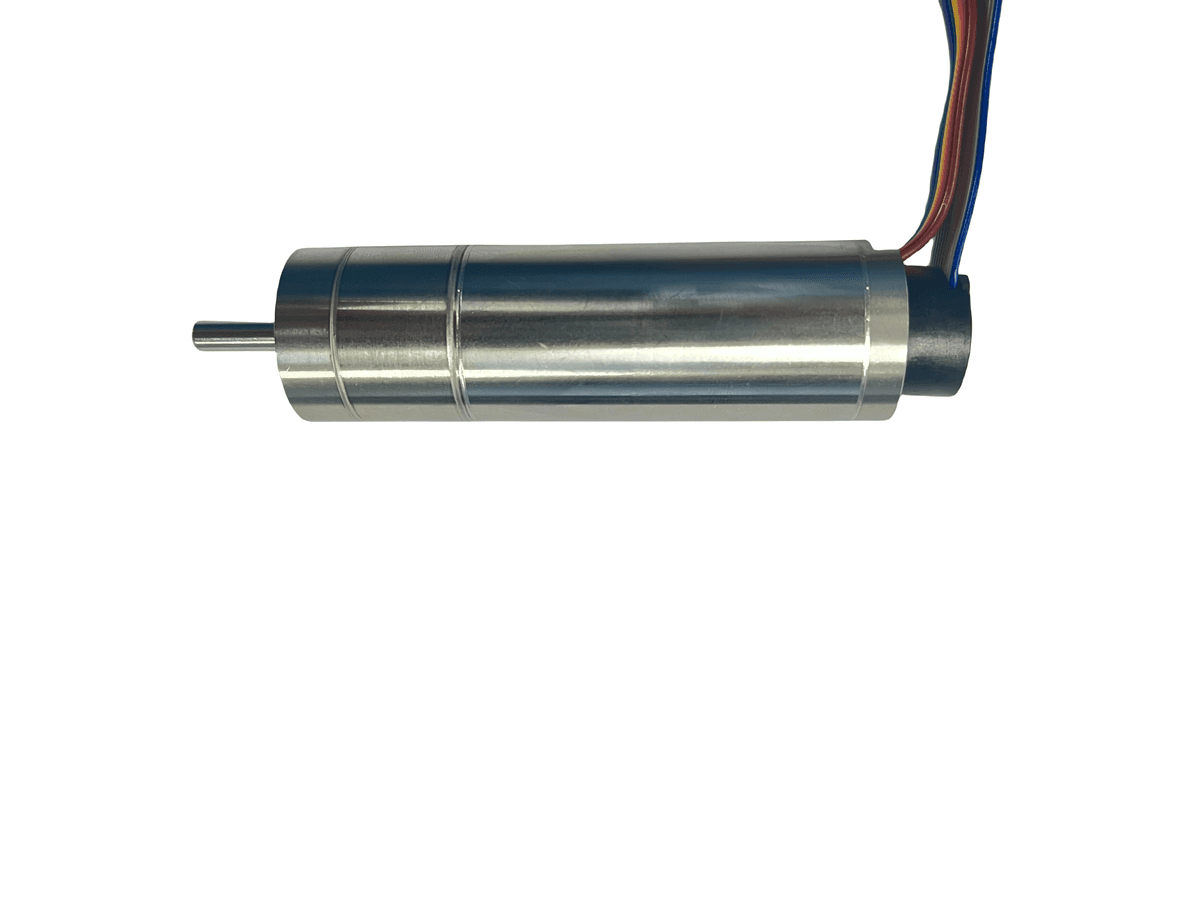

SLU22CH048-24-G16-M16-1024
Slotless BLDC Motor

Featured product media

Quick Facts

SLU22CH048-24-G16-M16-1024 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 1.67 A Rated Current
  • 41.0675 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 3.420 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor + Encoder + Gearhead
Weight0.407 lbs
Number of pole2
Number of Phases3
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 770.1 RPM
No Load Current285 mA
Nominal Speed676 RPM
Nominal Torque (Max Cont. Torque)63.1589 oz-in
Nominal Current (Max Cont. Current)2.94 A
Rated Speed575 RPM
Rated Torque41.0675 oz-in
Rated Current1.67 A
Stall Torque375.2716 oz-in
Stall Current15.96 A
Max. Efficiency70.9%

Motor Characteristics

Terminal Resistance0.94 ohm
Terminal Inductance0.104 mH
Speed/Torque Gradient 8.2135 RPM/oz-in
Speed Constant770 RPM/V
Mechanical Time Constant2.36 ms
Rotor Inertia0.02 oz-in²

Motor Mechanical Data

Radial play0.004
Max. Radial Load13.488 lbf
Distance From Flange For Radial Load10 in
Max Force For Press Fit22.48 lbf
Max Speed (Mechanical)30000 RPM

Motor Thermal Data

Ambient Temperature-40 °F to 212.00 °F
Insulation ClassF
Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal resistance (Housing-Ambient)48.20 °F/W
Thermal resistance (Winding-Housing)35.15 °F/W
Thermal time constant motor510 s
Thermal time constant winding1.59 s

Gearhead Specifications

Type Of GearheadPlanetary Gearhead
Gearhead Reduction Ratio16
Nominal Reduction Ratio15.58
Absolute Reduction Ratio5625/361
Number Of Stages2

Encoder Specifications

Counts Per Turn1024
Number Of Channels3

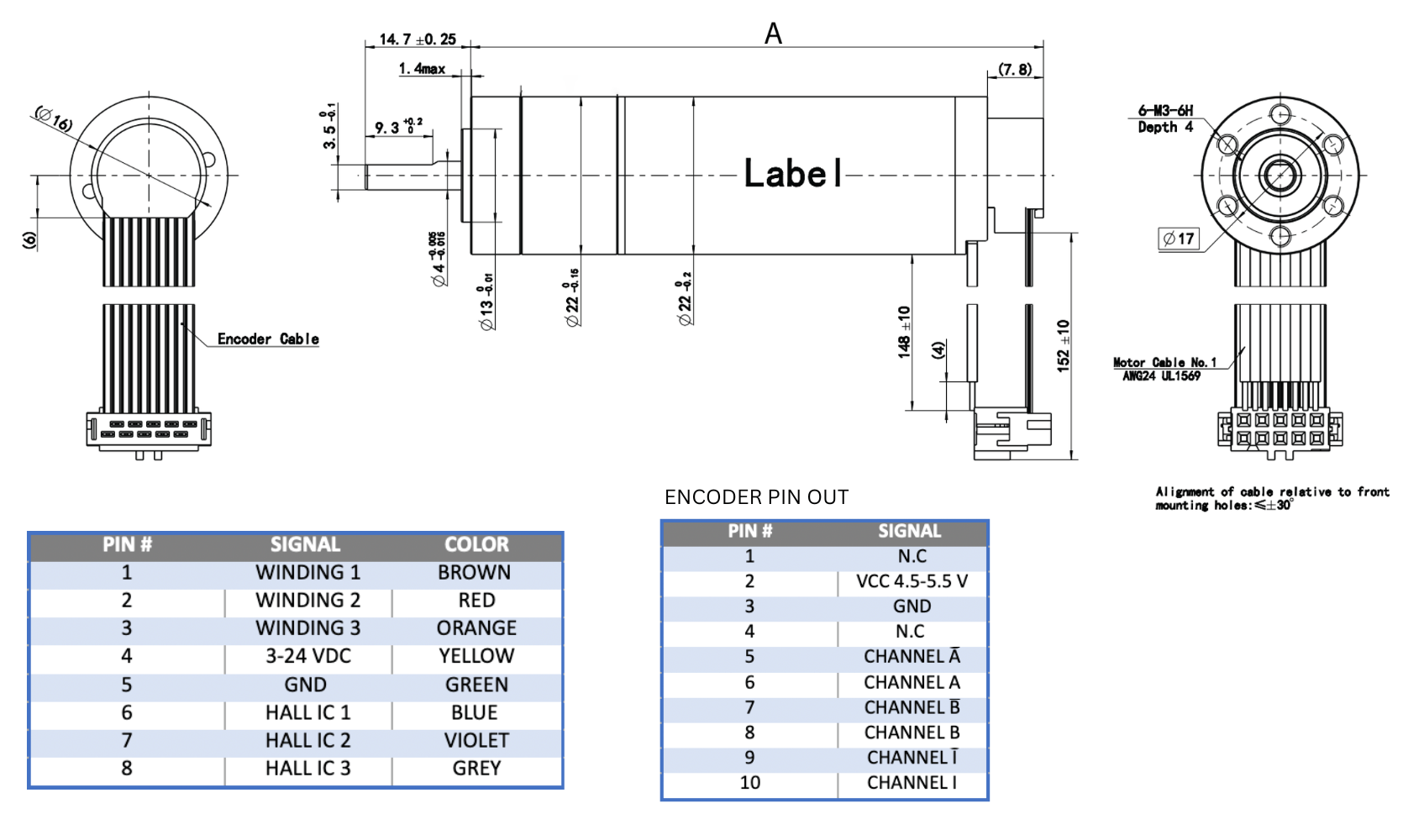

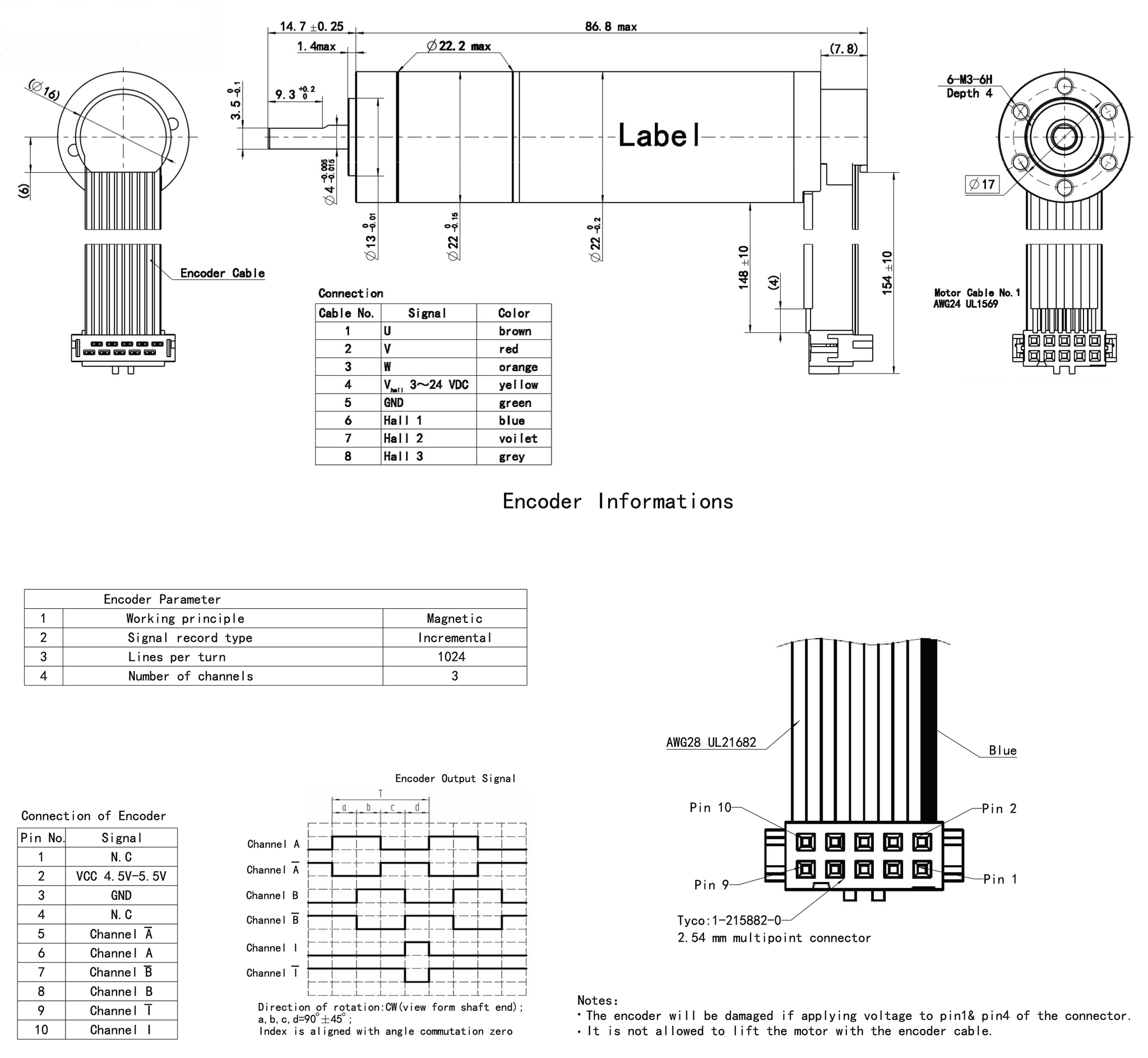

Dimensions

ModelDIM. A (length) in MAX
SLU22CH048-24-G16-M16-10243.420 in

Performance Curve

SLU22CH048 Series

Downloads

SLU22CH048-24-G16-M16-1024 Configured Datasheet (PDF)
