SLU22CH048 Series
SLU22CH048-18
Slotless BLDC Motor

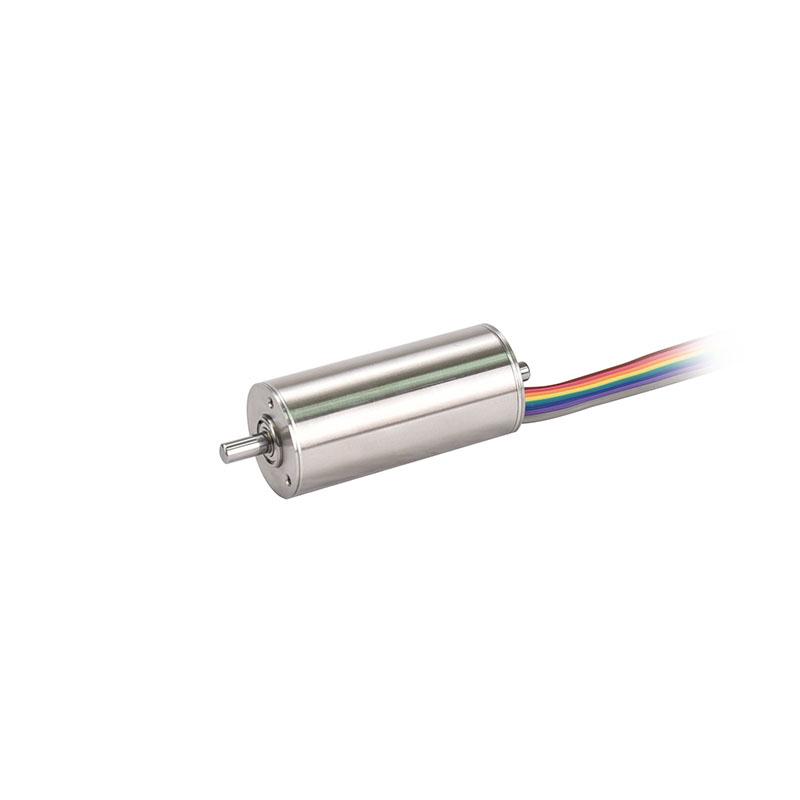

Featured product media

Quick Facts

SLU22CH048-18 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 2.37 A Rated Current
  • 3.1877 oz-in Rated Torque
  • 18 VDC Nominal Voltage
  • 1.910 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor Only
Weight0.243 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage18 VDC
No Load Speed 19500 RPM
No Load Current342 mA
Nominal Speed17530 RPM
Rated Speed14955 RPM
Rated Torque3.1877 oz-in
Rated Current2.37 A
Stall Torque45.7123 oz-in
Stall Current36 A
Max. Efficiency86%

Motor Characteristics

Terminal Resistance0.5 ohm
Terminal Inductance0.052 mH
Speed/Torque Gradient 8.3551 RPM/oz-in
Speed Constant1065 RPM/V
Mechanical Time Constant2.264 ms
Rotor Inertia0.02 oz-in²

Motor Mechanical Data

Max. Radial Load3.372 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor510 s
Thermal time constant winding2.51 s

Performance Curve

SLU22CH048-18
@18 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU22CH048 Series

Downloads

SLU22CH048-18 Configured Datasheet (PDF)
