SLU22CH032 Series
SLU22CH032-24-M16-1024
Slotless BLDC Motor

Featured product media

Quick Facts

SLU22CH032-24-M16-1024 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 0.55 A Rated Current
  • 0.9771 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 1.720 in Length

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor + Encoder
Weight0.19 lbs

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 18000 RPM
No Load Current120 mA
Nominal Speed14620 RPM
Rated Speed15430 RPM
Rated Torque0.9771 oz-in
Rated Current0.55 A
Stall Torque8.1993 oz-in
Stall Current4.55 A
Max. Efficiency74.1%

Motor Characteristics

Terminal Resistance5.27 ohm
Terminal Inductance0.3 mH
Speed/Torque Gradient 43.8997 RPM/oz-in
Speed Constant750 RPM/V
Mechanical Time Constant5.85 ms
Rotor Inertia0.01 oz-in²

Motor Mechanical Data

Max. Radial Load3.372 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor667 s
Thermal time constant winding1.49 s

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

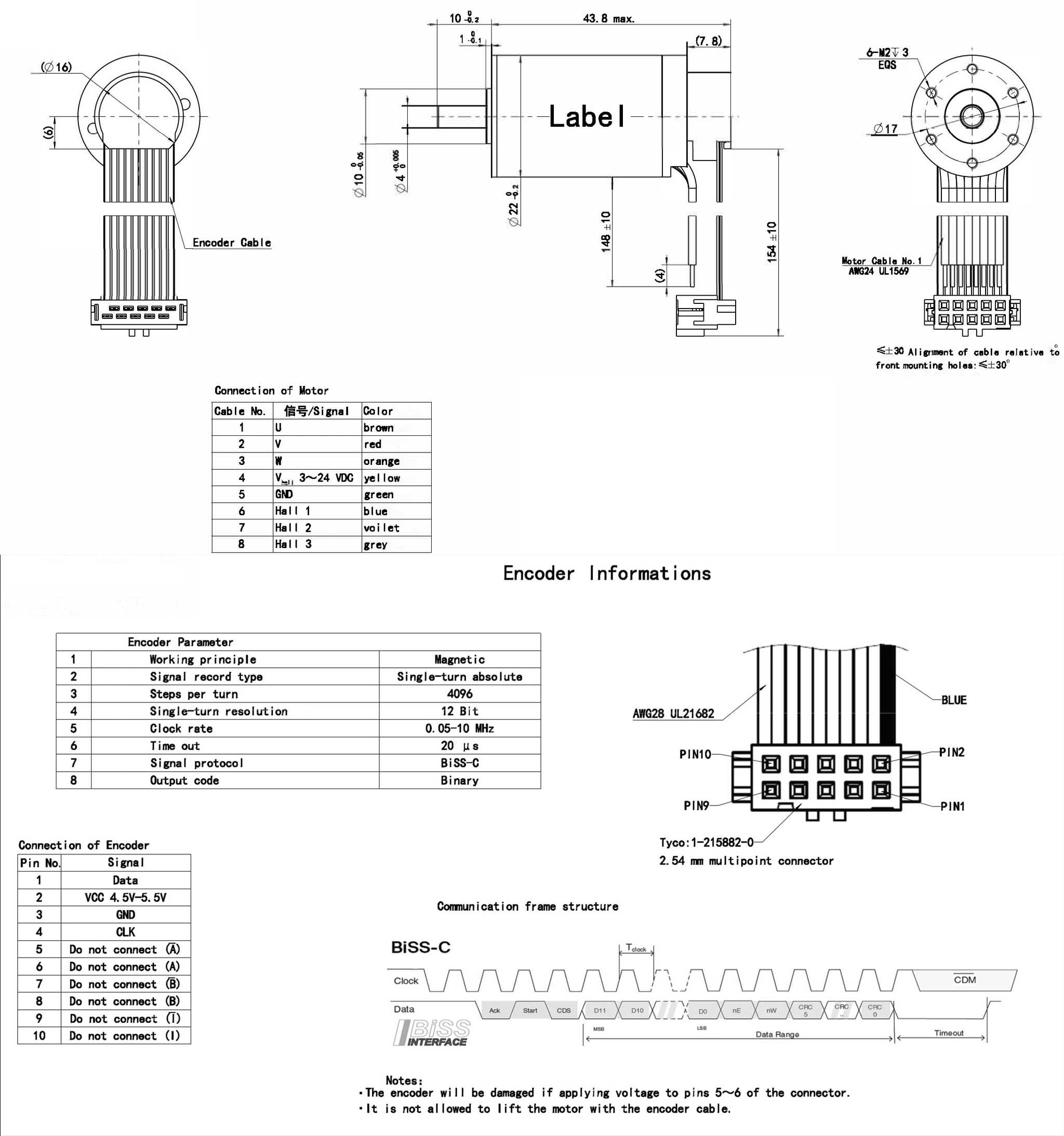

Dimensions

ModelDIM. A (length) in MAX
SLU22CH032-24-M16-10241.720 in

Performance Curve

SLU22CH032-24-M16-1024
@24 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU22CH032 Series

Downloads

SLU22CH032-24-M16-1024 Configured Datasheet (PDF)
