SLU22CH032 Series
SLU22CH032-24-G62
Slotless BLDC Motor

Featured product media

Quick Facts

SLU22CH032-24-G62 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 0.55 A Rated Current
  • 48.1481 oz-in Rated Torque
  • 15 VDC Nominal Voltage
  • 2.540 in Length

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor + Gearhead
Weight0.312 lbs

Motor Values (At Nominal Speed)

Nominal Voltage15 VDC
No Load Speed 152.9 RPM
No Load Current140 mA
Nominal Speed234 RPM
Rated Speed128 RPM
Rated Torque48.1481 oz-in
Rated Current0.55 A
Stall Torque252.0692 oz-in
Stall Current2.85 A
Max. Efficiency56.5%

Motor Characteristics

Terminal Resistance5.27 ohm
Terminal Inductance0.3 mH
Speed/Torque Gradient 43.8997 RPM/oz-in
Speed Constant750 RPM/V
Mechanical Time Constant6.35 ms

Motor Mechanical Data

Max. Radial Load13.488 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor667 s
Thermal time constant winding1.49 s

Gearhead Specifications

Gearhead Reduction Ratio62
Nominal Reduction Ratio62

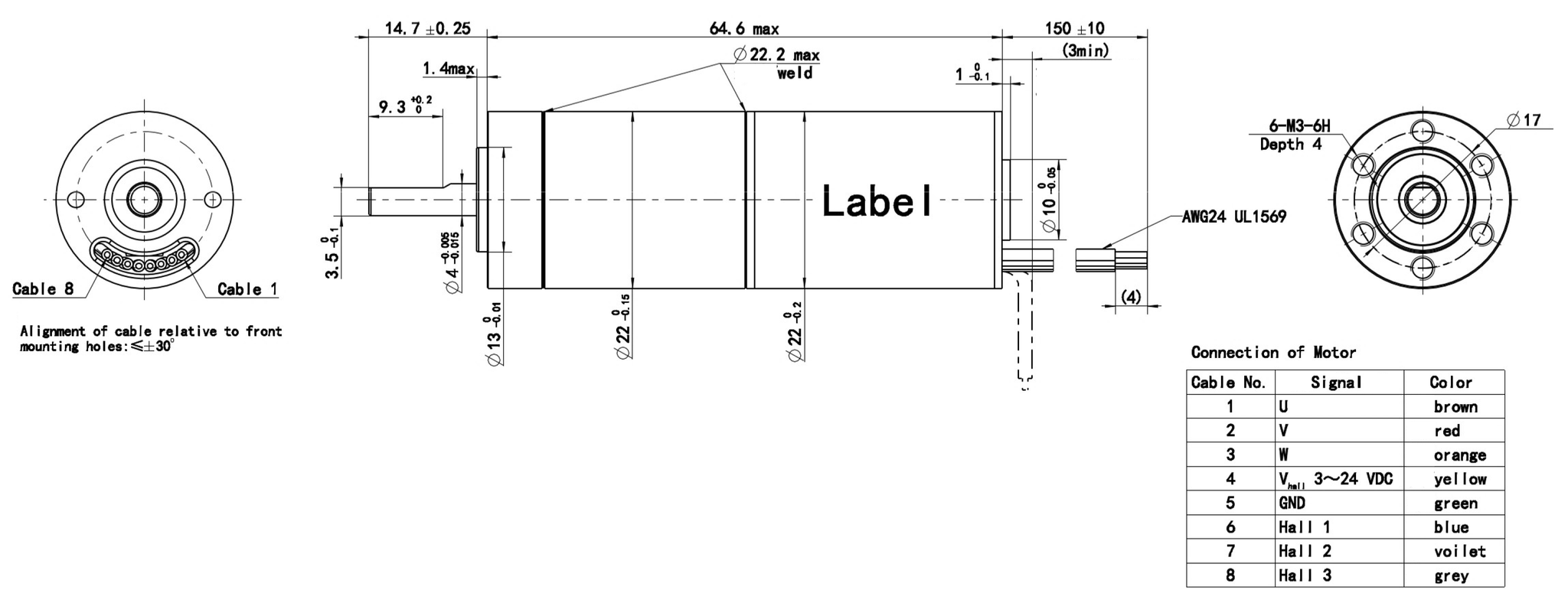

Dimensions

ModelDIM. A (length) in MAX
SLU22CH032-24-G622.540 in

Performance Curve

SLU22CH032-24-G62
@15 VDC, 62:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU22CH032 Series

Downloads

SLU22CH032-24-G62 Configured Datasheet (PDF)
