SLU22CH032 Series
SLU22CH032-24-G546-M16-1024
Slotless BLDC Motor

Featured product media

Quick Facts

SLU22CH032-24-G546-M16-1024 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 0.42 A Rated Current
  • 283.2239 oz-in Rated Torque
  • 15 VDC Nominal Voltage
  • 3.250 in Length

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor + Encoder + Gearhead
Weight0.376 lbs

Motor Values (At Nominal Speed)

Nominal Voltage15 VDC
No Load Speed 20.6 RPM
No Load Current101 mA
Nominal Speed27 RPM
Rated Speed15.4 RPM
Rated Torque283.2239 oz-in
Rated Current0.42 A
Stall Torque1804.136 oz-in
Stall Current2.62 A
Max. Efficiency50.5%

Motor Characteristics

Terminal Resistance5.6 ohm
Terminal Inductance0.3185 mH
Speed/Torque Gradient 47.7232 RPM/oz-in
Speed Constant750 RPM/V
Mechanical Time Constant6.35 ms

Motor Mechanical Data

Max. Radial Load13.488 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor672 s
Thermal time constant winding2.27 s

Gearhead Specifications

Gearhead Reduction Ratio546
Nominal Reduction Ratio546

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

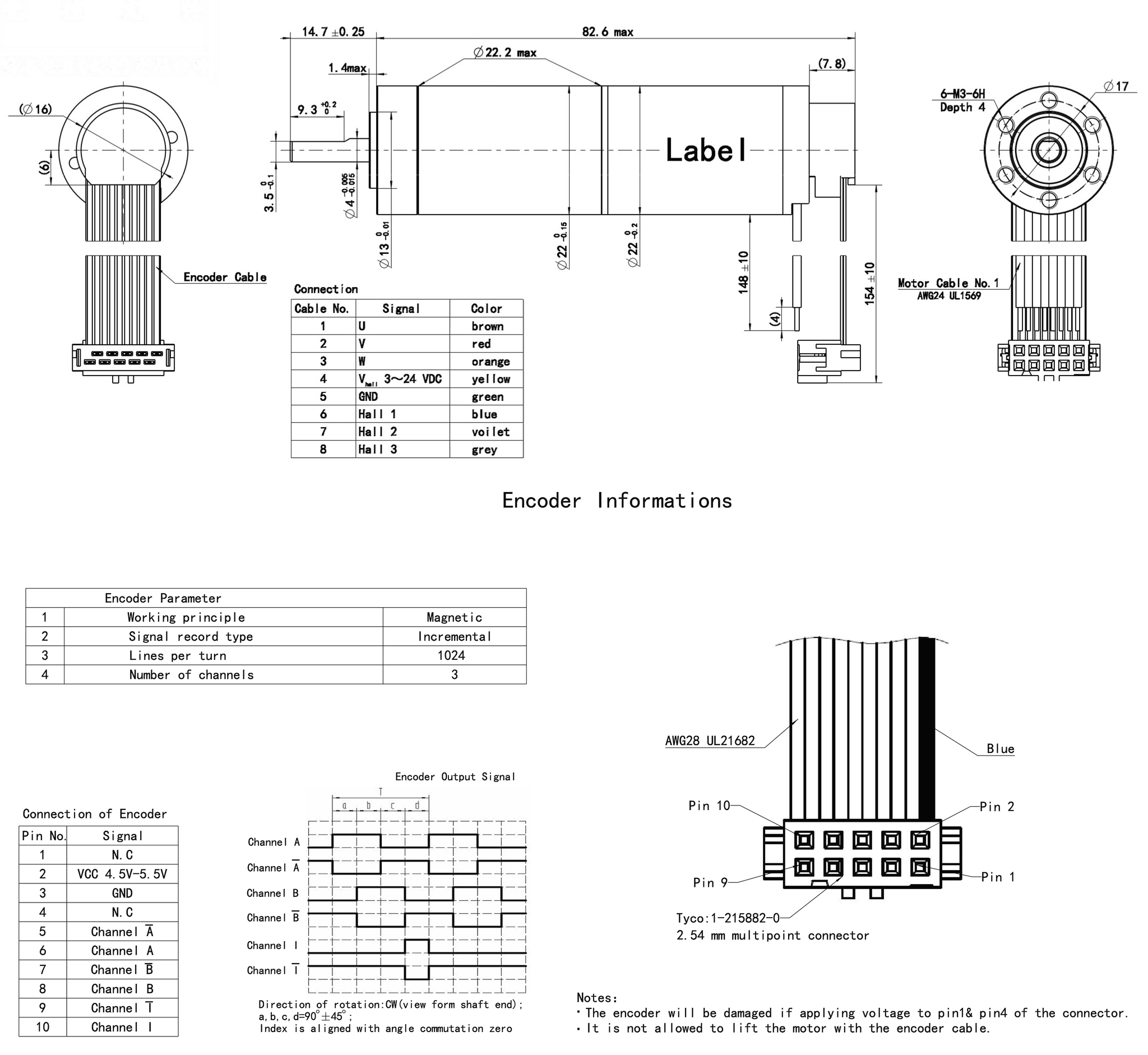

Dimensions

ModelDIM. A (length) in MAX
SLU22CH032-24-G546-M16-10243.250 in

Performance Curve

SLU22CH032-24-G546-M16-1024
@15 VDC, 546:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU22CH032 Series

Downloads

SLU22CH032-24-G546-M16-1024 Configured Datasheet (PDF)
