SLU22CH032 Series
SLU22CH032-24-G546
Slotless BLDC Motor

Featured product media

Quick Facts

SLU22CH032-24-G546 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 0.44 A Rated Current
  • 283.2239 oz-in Rated Torque
  • 15 VDC Nominal Voltage
  • 2.790 in Length

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor + Gearhead
Weight0.34 lbs

Motor Values (At Nominal Speed)

Nominal Voltage15 VDC
No Load Speed 20.6 RPM
No Load Current140 mA
Nominal Speed27 RPM
Rated Speed15.9 RPM
Rated Torque283.2239 oz-in
Rated Current0.44 A
Stall Torque1959.9091 oz-in
Stall Current2.85 A
Max. Efficiency49.4%

Motor Characteristics

Terminal Resistance5.27 ohm
Terminal Inductance0.3 mH
Speed/Torque Gradient 43.8997 RPM/oz-in
Speed Constant750 RPM/V
Mechanical Time Constant6.35 ms

Motor Mechanical Data

Max. Radial Load13.488 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor667 s
Thermal time constant winding1.49 s

Gearhead Specifications

Gearhead Reduction Ratio546
Nominal Reduction Ratio546

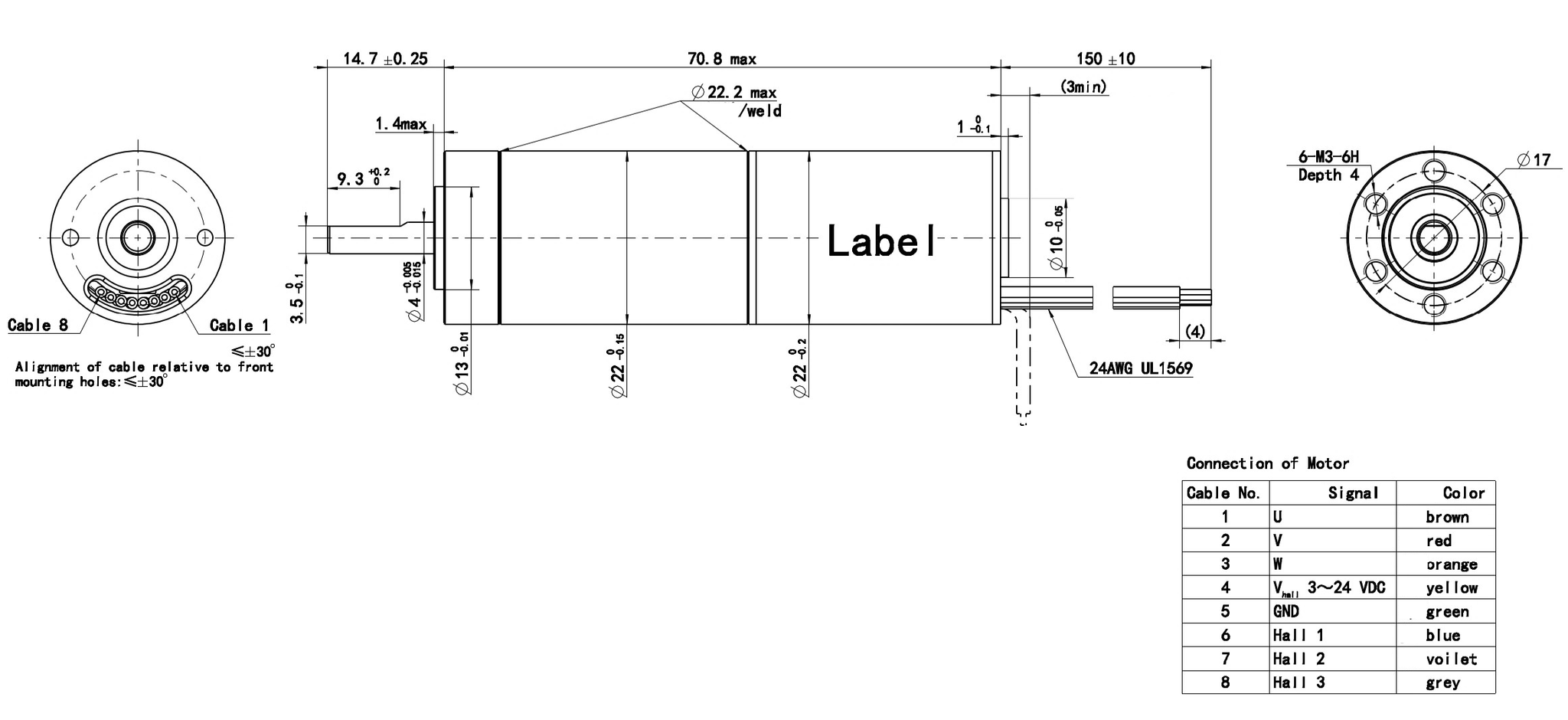

Dimensions

ModelDIM. A (length) in MAX
SLU22CH032-24-G5462.790 in

Performance Curve

SLU22CH032-24-G546
@15 VDC, 546:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU22CH032 Series

Downloads

SLU22CH032-24-G546 Configured Datasheet (PDF)
