SLU22CH032 Series
SLU22CH032-24-G103-M16-1024
Slotless BLDC Motor

Name: SLU22CH032-24-G103-M16-1024
Brand: Lin Engineering
SKU: SLU22CH032-24-G103-M16-1024
Price: 384 USD
Availability: PreOrder

Quick Facts

SLU22CH032-24-G103-M16-1024 Slotless BLDC Motors

Specifications:

0.870 in Frame Size
0.55 A Rated Current
74.3463 oz-in Rated Torque
15 VDC Nominal Voltage
3.010 in Length

Specifications

Motor Specifications

Frame Size	0.870 in
Motor Type	Motor + Encoder + Gearhead
Weight	0.349 lbs

Motor Values (At Nominal Speed)

Nominal Voltage	15 VDC
No Load Speed	105 RPM
No Load Current	140 mA
Nominal Speed	141 RPM
Rated Speed	76 RPM
Rated Torque	74.3463 oz-in
Rated Current	0.55 A
Stall Torque	390.8489 oz-in
Stall Current	2.85 A
Max. Efficiency	52.2%

Motor Characteristics

Terminal Resistance	5.27 ohm
Terminal Inductance	0.3 mH
Speed/Torque Gradient	43.8997 RPM/oz-in
Speed Constant	750 RPM/V
Mechanical Time Constant	6.35 ms

Motor Mechanical Data

Max. Radial Load

13.488 lbf

Motor Thermal Data

Max winding temperature	311.00 °F
Max winding temperature	311.00 °F
Thermal time constant motor	672 s
Thermal time constant winding	2.27 s

Gearhead Specifications

Gearhead Reduction Ratio	103
Nominal Reduction Ratio	103

Encoder Specifications

Encoder Type

1024-line incremental magnetic encoder

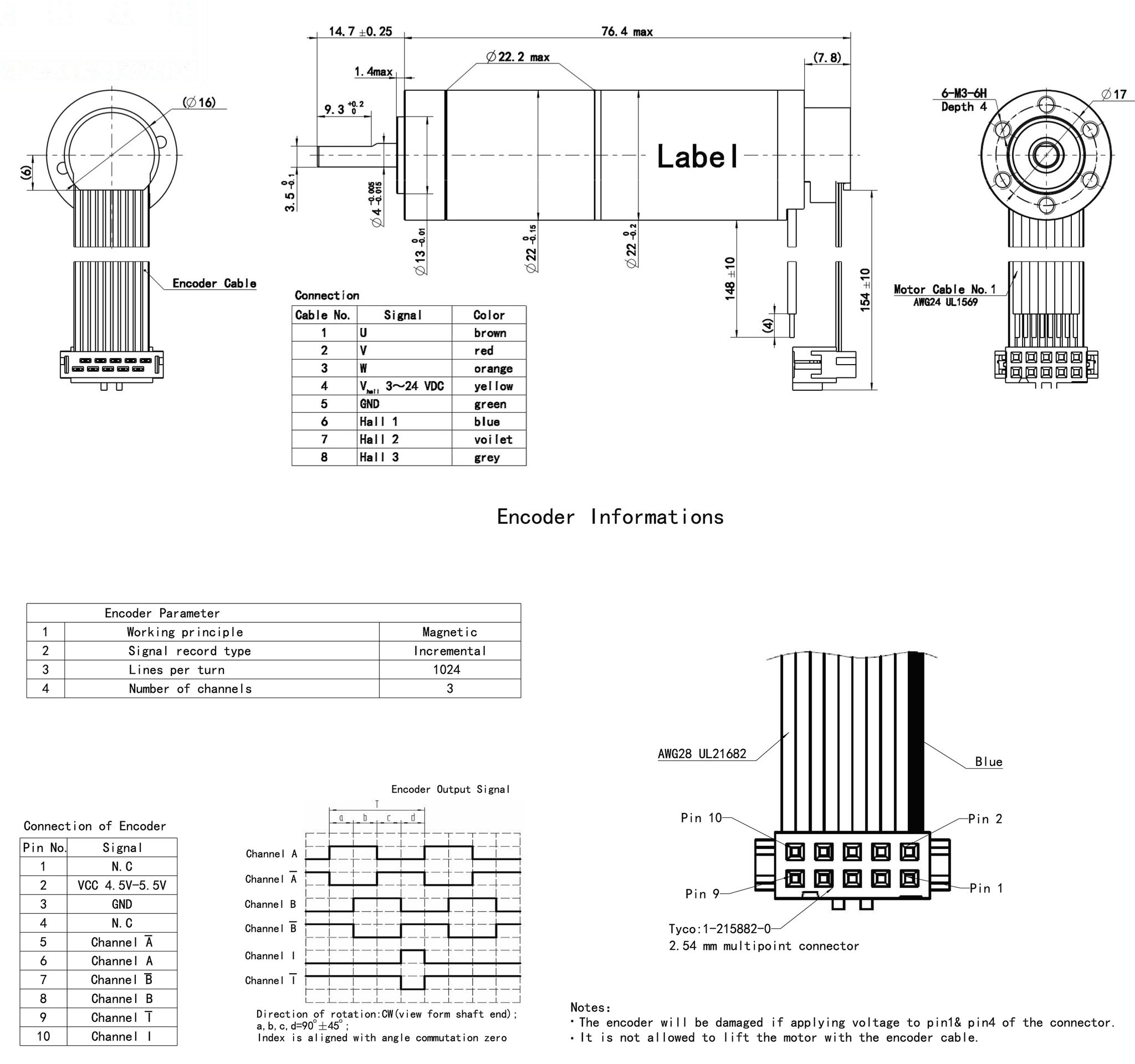

Dimensions

Model	DIM. A (length) in MAX
SLU22CH032-24-G103-M16-1024	3.010 in

Performance Curve

SLU22CH032-24-G103-M16-1024
^{@15 VDC, 103:1 reduction}

Speed
Current
Power
Efficiency
Operating Area
Maximum Continuous Torque

Generate new cureve based on different VDC

SLU22CH032 Series

Downloads

SLU22CH032-24-G103-M16-1024 Configured Datasheet (PDF)
