SLU22CH032 Series
SLU22CH032-24
Slotless BLDC Motor

Featured product media

Quick Facts

SLU22CH032-24 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 0.53 A Rated Current
  • 0.9559 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 1.260 in Length

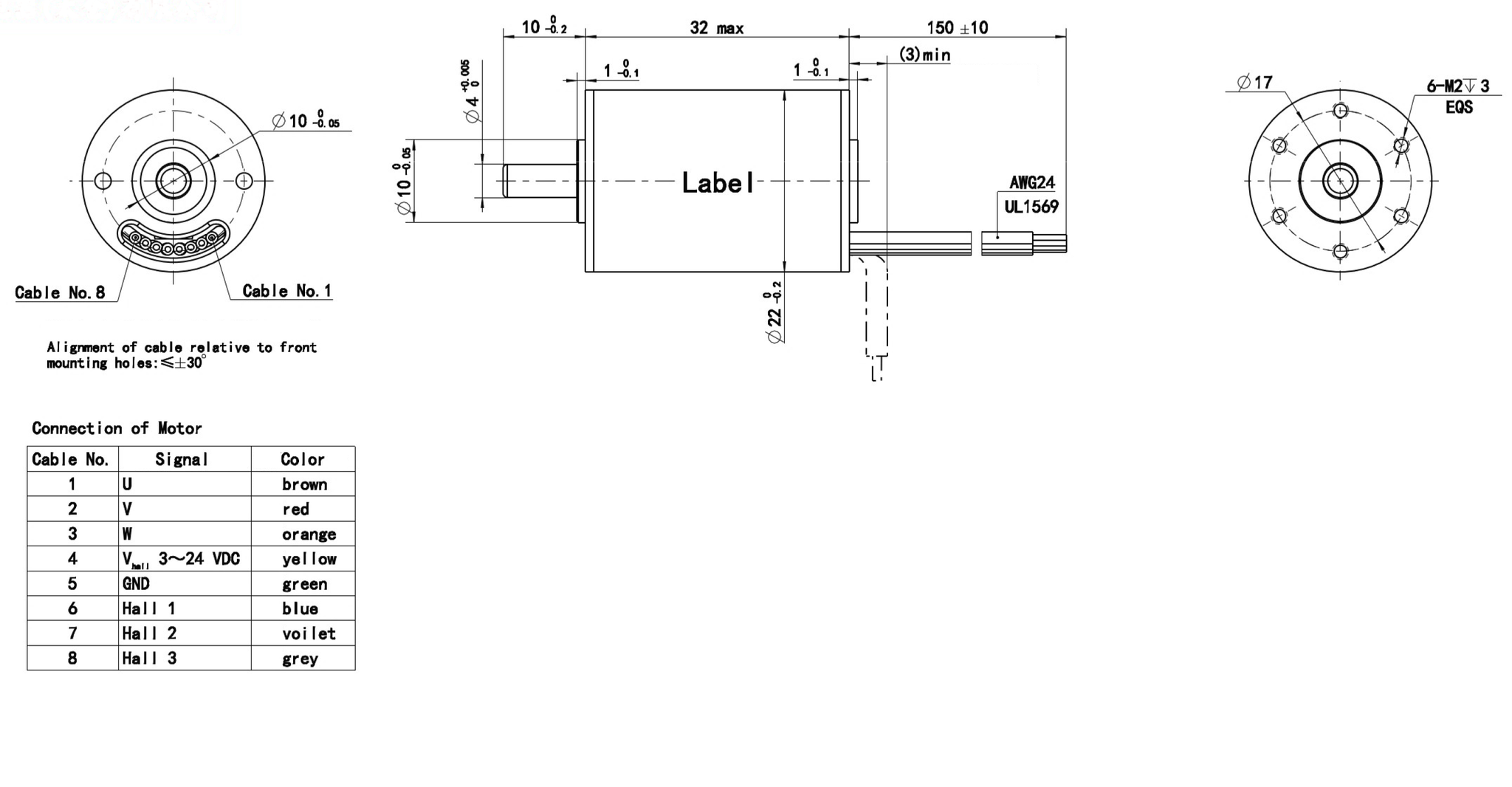

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor Only
Weight0.157 lbs

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 18000 RPM
No Load Current115.7 mA
Nominal Speed14500 RPM
Rated Speed15000 RPM
Rated Torque0.9559 oz-in
Rated Current0.53 A
Stall Torque7.5762 oz-in
Stall Current4.2 A
Max. Efficiency75.7%

Motor Characteristics

Terminal Resistance5.72 ohm
Terminal Inductance0.3185 mH
Speed/Torque Gradient 47.7232 RPM/oz-in
Speed Constant750 RPM/V
Mechanical Time Constant6.35 ms
Rotor Inertia0.01 oz-in²

Motor Mechanical Data

Max. Radial Load3.372 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor672 s
Thermal time constant winding2.27 s

Performance Curve

SLU22CH032-24
@24 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU22CH032 Series

Downloads

SLU22CH032-24 Configured Datasheet (PDF)
