SLU22CH032 Series
SLU22CH032-12
Slotless BLDC Motor

Featured product media

Quick Facts

SLU22CH032-12 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 1.15 A Rated Current
  • 1.0621 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 1.260 in Length

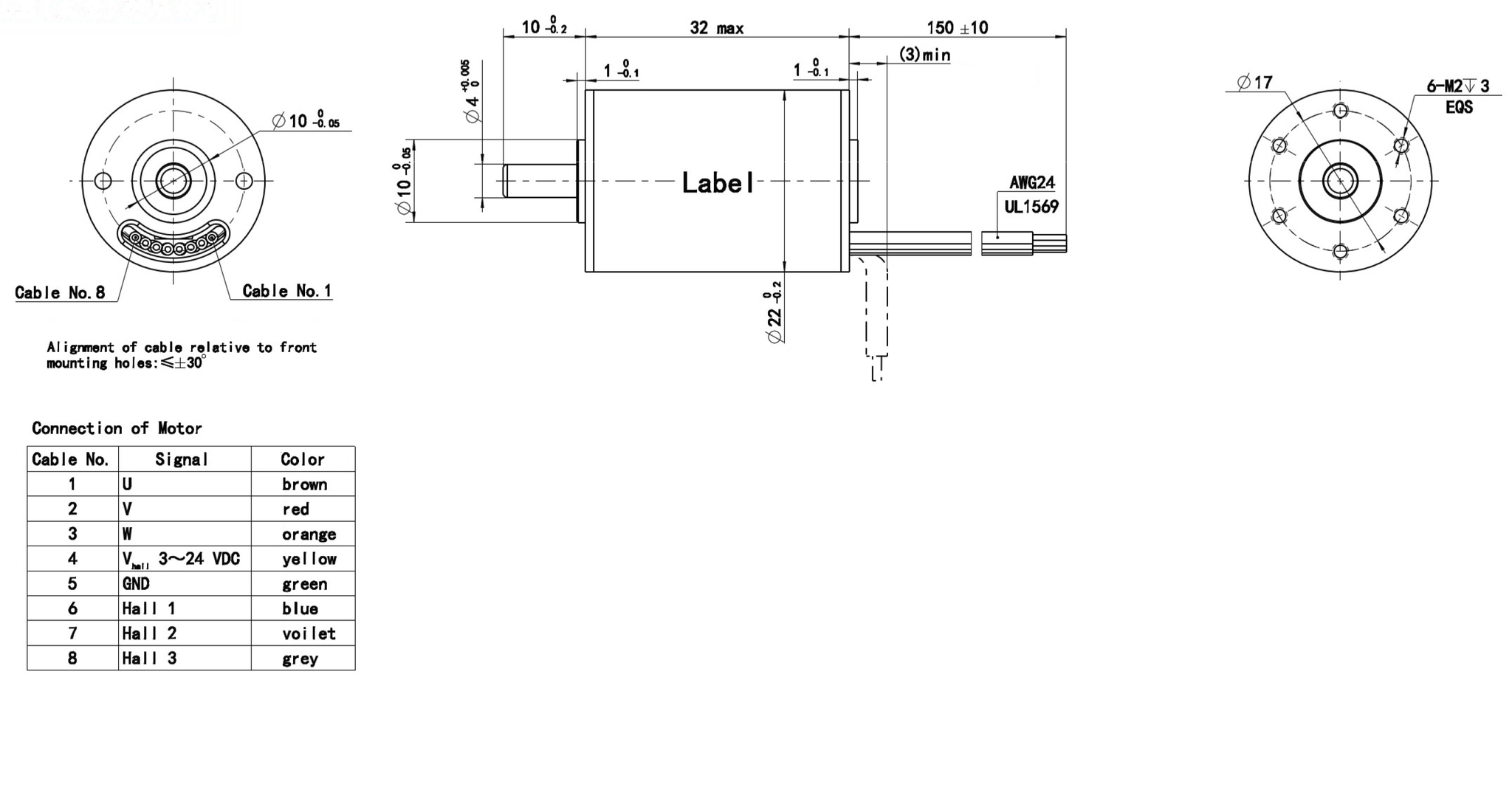

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor Only
Weight0.157 lbs

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 17600 RPM
No Load Current204 mA
Nominal Speed14330 RPM
Rated Speed13610 RPM
Rated Torque1.0621 oz-in
Rated Current1.15 A
Stall Torque9.0348 oz-in
Stall Current9.76 A
Max. Efficiency74.1%

Motor Characteristics

Terminal Resistance1.23 ohm
Terminal Inductance0.0777 mH
Speed/Torque Gradient 38.9433 RPM/oz-in
Speed Constant1460 RPM/V
Mechanical Time Constant5.18 ms
Rotor Inertia0.01 oz-in²

Motor Mechanical Data

Max. Radial Load3.372 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor667 s
Thermal time constant winding1.49 s

Performance Curve

SLU22CH032-12
@12 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU22CH032 Series

Downloads

SLU22CH032-12 Configured Datasheet (PDF)
