SLU16CH036 Series

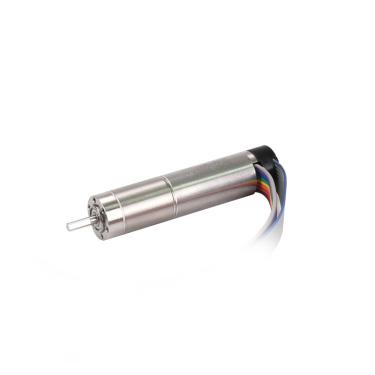

SLU16CH036-24-MC16-16B
Slotless BLDC Motor

Specifications:
  • 0.630 in Frame Size
  • 0.475 A Rated Current
  • 1.0621 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 1.750 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Unit Price:

$272.00

Inventory:

10 Available in 10 Business Days

Ships:

10 Business Days

Part Number:

SLU16CH036-24-MC16-16B

Looking For Higher Volume?

Specifications

Motor Specifications

Frame Size0.630 in
Motor TypeMotor + Encoder
Weight0.119 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 15200 RPM
No Load Current115 mA
Rated Speed12350 RPM
Rated Torque1.0621 oz-in
Rated Current0.475 A
Stall Torque8.3126 oz-in
Stall Current3.81 A
Max. Efficiency80%

Motor Characteristics

Terminal Resistance6.3 ohm
Terminal Inductance0.41 mH
Speed/Torque Gradient 35.9694 RPM/oz-in
Speed Constant620 RPM/V
Mechanical Time Constant1.49 ms
Rotor Inertia0.003 oz-in²

Motor Mechanical Data

Max. Radial Load1.349 lbf
Max Speed (Mechanical)30000 RPM

Motor Thermal Data

Ambient Temperature-40 °F to 212.00 °F
Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal resistance (Housing-Ambient)68.90 °F/W
Thermal resistance (Winding-Housing)37.94 °F/W
Thermal time constant motor525 s
Thermal time constant winding0.72 s

Encoder Specifications

Encoder Type16-bit incremental magnetic encoder

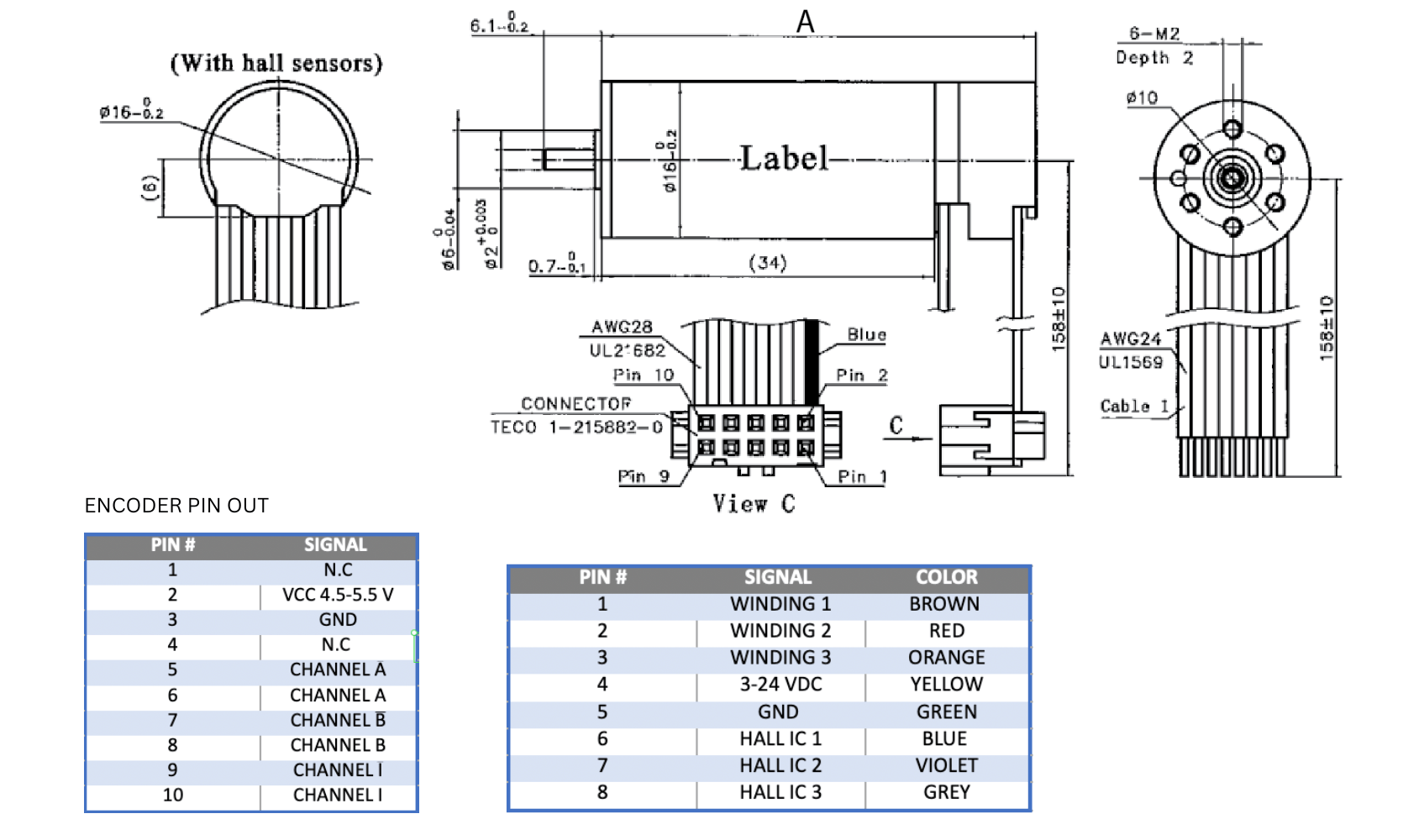

Dimensions

ModelDIM. A (length) in
SLU16CH036-24-MC16-16B1.750 in

Performance Curve

SLU16CH036 Series

Downloads

SLU16CH036-24-MC16-16B Configured Datasheet (PDF)
Download
